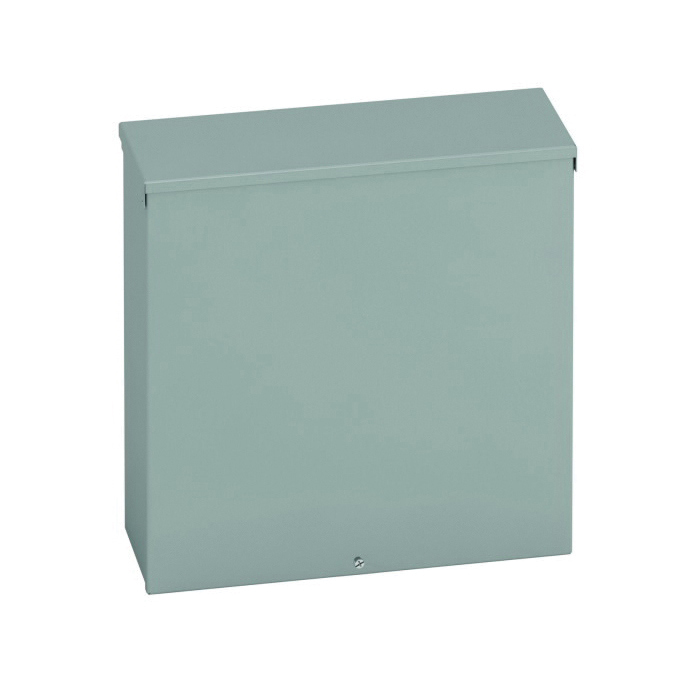

B-Line 121210 RTSC Junction Box With Knockout, 12 in L x 12 in W x 10 in D, NEMA 3R/IP32, Steel
Electrical Terminal Enclosures
909470
MFG #: 121210 RTSC
B-Line
114.95000
/ ea
- Cable Entry Size: Knockout
- Catalog Number: 121210 RTSC
- Color: Gray
- Country of Origin: US
- Cover Type: Screw
- Finish: Acrylic Electro Coated/Galvanneal/Phosphate Undercoat
- Gross Weight Per Pack: 13.2580 lb
- Mounting Type: Wall
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 50CSA C22.2 No. 40IEC 60529
- UNSPSC: 39121324
- UPC 11: 78205108227
- UPC 12: 78205108227
- Stock Status: NONSTOCK
- Brand: B-Line
- Manufacturer: Eaton
- Depth: 10 in
- Length: 12 in
- Material: Steel
- NEMA Rating: NEMA 3R/IP32
- Width: 12 in
B-Line Junction Box, 12 in Length, 12 in Width, 10 in Depth, NEMA 3R/IP32, Screw Cover, Wall Mount, Steel, Acrylic Electrocoated, Gray
- Catalog URL - IDW_DOCUMENT_8bb0c6eed698e17314850fd9b9d953a4747b360030c8b9cd1ff78c9d60b8483e.pdf(Catalog URL)
- http://www.bline.com(Seller Home Page URL)
- Spec Sheet URL - T3RScrewCoverEnclosures.pdf(Spec Sheet URL)
- Warranty 1 URL - IDW_DOCUMENT_1537666263090.pdf(Warranty 1 URL)
- Warranty URL - b-line-terms-and-conditions.html(Warranty URL)
- Features
| Enclosure and cover are fabricated from code gauge galvanneal steel for painted or galvanized steel |
| Enclosure body has embossed mounting holes on the back |
| Available with or without knockouts on the bottom end of enclosures less than 30 in wide |
| Cover is held secure by sliding it under the top end flange and fastening it with plated screws on the bottom end flange (larger sizes use two studs and wing nuts) |
| Wash and phosphate undercoat |
| ANSI 61 gray acrylic electrocoat finish |
| 16 ga Steel |
