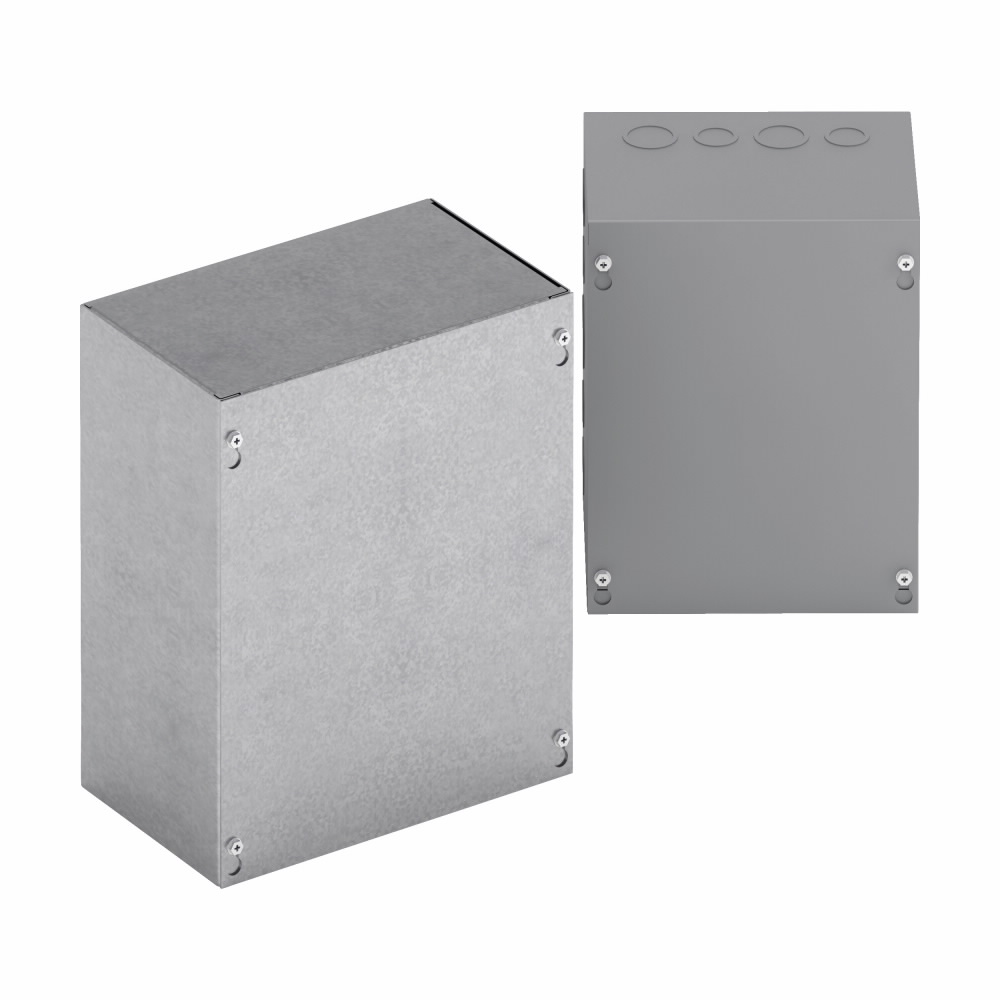

B-Line 10104 SC NK Electrical Enclosure, 10 in L x 10 in W x 4 in D, NEMA 1, Steel
Custom_Product_Images_Illustration
B-Line 10104 SC NK Electrical Enclosure, 10 in L x 10 in W x 4 in D, NEMA 1, Steel
SKU20128
MFGR #10104 SC NK
Your Cost: $41.00/ea
List: B-Line Electrical Enclosure, 10 in Length, 10 in Width, 4 in Depth, NEMA 1, Screw Cover, Wall Mount, Steel, Painted, Gray
B-Line Electrical Enclosure, 10 in Length, 10 in Width, 4 in Depth, NEMA 1, Screw Cover, Wall Mount, Steel, Painted, Gray
Alternate Catalog Number 78205122431 ARRA Compliant C Brand B-Line Buy American Compliant C Catalog Number 10104 SC NK Color Gray Country of Origin US Cover Type Screw Currency USD Depth 4 in EU RoHS Indicator C Finish Acrylic Electrocoated/Painted Gross Weight Per Pack 6.3610 lb Gross Weight per Pack Metric 2.90 Gross Weight UOM Metric kg Height 10.00 in Height [Metric] 25.4000 cm Length 4.00 in Length [Metric] 10.1600 cm Manufacturer Eaton Material Steel Mounting Type Wall NEMA Rating NEMA 1/IP30 Returnable Y Size 10.00 In Width X 4.00 In Depth X 10.00 In Height Standard UL 50,CSA C22.2.,NEMA Standards UL 50 Listed, CSA C22.2 No. 40 Certified, RoHS Complaint Stock Status NONSTOCK Sub Brand B-Line series Type Type 1 junction boxes UNSPSC 39121324 UPC 11 78205122431 UPC 12 78205122431 Width 10.00 in Width [Metric] 25.4000 cm Commercial / Institutional Buildings / Structures - Power Distribution and ControlsCommercial / Institutional Buildings / Structures - Commercial/Inst Bldg Strctures - AftermarketCommercial / Institutional Buildings / Structures - Building Automation and MonitoringCommercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - OtherResidential Bldgs & Facilities - Residential Bldgs & Facilities - OtherAviationCommercial / Institutional Buildings / Structures - Safety and Security SystemsCommercial / Institutional Buildings / Structures - Critical PowerCommercial / Institutional Buildings / Structures - Lighting and Lighting Controls Keyhole slots on cover, plated screws Enclosure and cover are fabricated from code gauge steel or galvanized steel Enclosure body has mounting holes on the back Enclosures are available with or without knockouts on the sides, top and bottom ends Cover is secured to the body with plated hex head combo screws Keyhole slots provided in the cover allow easy access to the inside without removing the screws Hole provision for optional ground lug kit Protects against contact with enclosed equipment Wash and phosphate undercoat or galvanized steel ANSI 61 gray acrylic electrocoat finish 16 ga steel Without Knockout
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 78205122431 |
| ARRA Compliant | C |
| Brand | B-Line |
| Buy American Compliant | C |
| Catalog Number | 10104 SC NK |
| Color | Gray |
| Country of Origin | US |
| Cover Type | Screw |
| Currency | USD |
| Depth | 4 in |
| EU RoHS Indicator | C |
| Finish | Acrylic Electrocoated/Painted |
| Gross Weight Per Pack | 6.3610 lb |
| Gross Weight per Pack Metric | 2.90 |
| Gross Weight UOM Metric | kg |
| Height | 10.00 in |
| Height [Metric] | 25.4000 cm |
| Length | 4.00 in |
| Length [Metric] | 10.1600 cm |
| Manufacturer | Eaton |
| Material | Steel |
| Mounting Type | Wall |
| NEMA Rating | NEMA 1/IP30 |
| Returnable | Y |
| Size | 10.00 In Width X 4.00 In Depth X 10.00 In Height |
| Standard | UL 50,CSA C22.2.,NEMA |
| Standards | UL 50 Listed, CSA C22.2 No. 40 Certified, RoHS Complaint |
| Stock Status | NONSTOCK |
| Sub Brand | B-Line series |
| Type | Type 1 junction boxes |
| UNSPSC | 39121324 |
| UPC 11 | 78205122431 |
| UPC 12 | 78205122431 |
| Width | 10.00 in |
| Width [Metric] | 25.4000 cm |
| Commercial / Institutional Buildings / Structures - Power Distribution and ControlsCommercial / Institutional Buildings / Structures - Commercial/Inst Bldg Strctures - AftermarketCommercial / Institutional Buildings / Structures - Building Automation and MonitoringCommercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - OtherResidential Bldgs & Facilities - Residential Bldgs & Facilities - OtherAviationCommercial / Institutional Buildings / Structures - Safety and Security SystemsCommercial / Institutional Buildings / Structures - Critical PowerCommercial / Institutional Buildings / Structures - Lighting and Lighting Controls |
| Keyhole slots on cover, plated screws |
| Enclosure and cover are fabricated from code gauge steel or galvanized steel |
| Enclosure body has mounting holes on the back |
| Enclosures are available with or without knockouts on the sides, top and bottom ends |
| Cover is secured to the body with plated hex head combo screws |
| Keyhole slots provided in the cover allow easy access to the inside without removing the screws |
| Hole provision for optional ground lug kit |
| Protects against contact with enclosed equipment |
| Wash and phosphate undercoat or galvanized steel |
| ANSI 61 gray acrylic electrocoat finish |
| 16 ga steel |
| Without Knockout |
