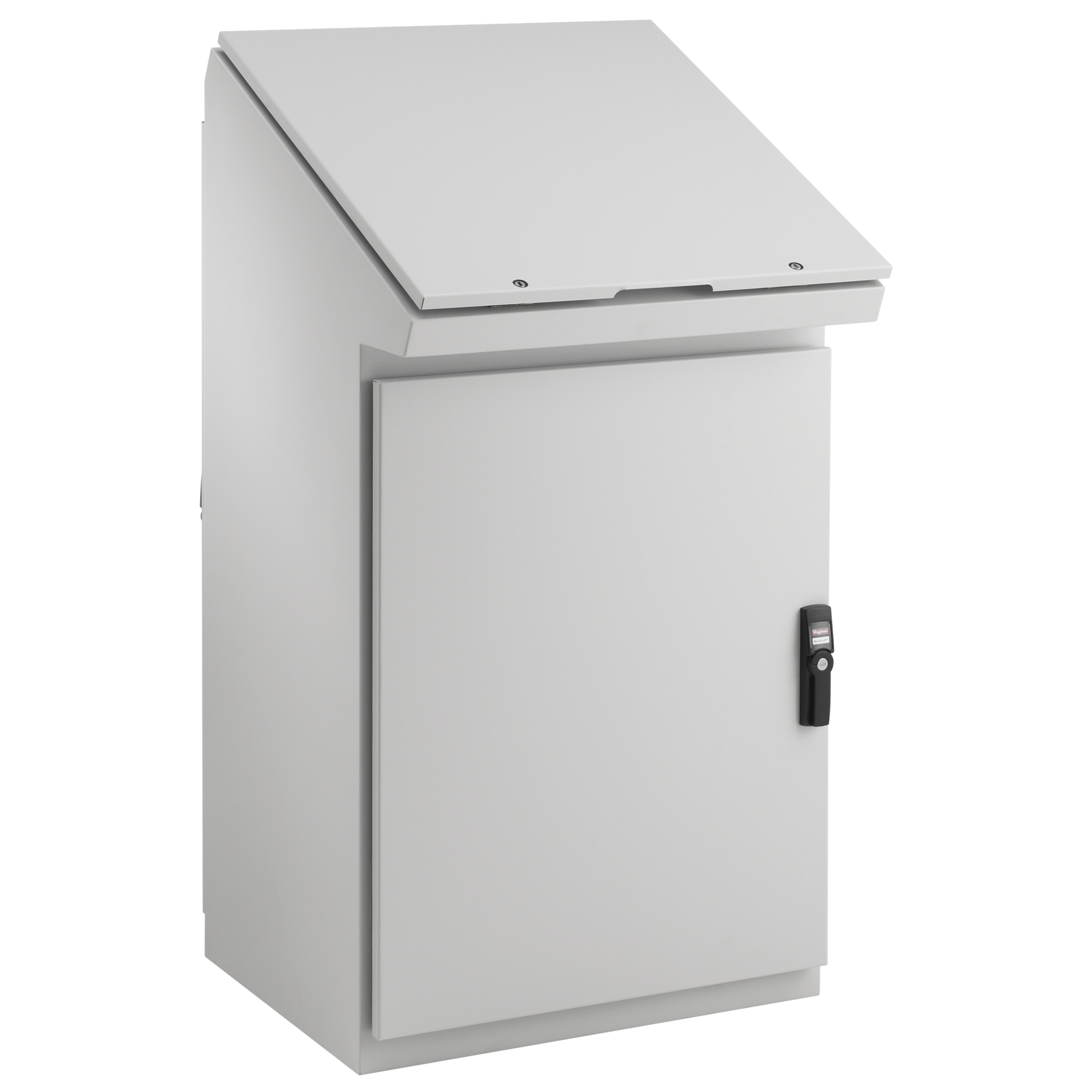

nVent HOFFMAN ProLine™ PGLD1285DC Gold/P11 1-Door Single Bay Dual Access Desk Console Enclosure, 1176 mm L x 808 mm W x 469 mm D, NEMA 12 NEMA Rating, Steel
Console & Consolet Enclosures
280829
MFG #: PGLD1285DC
nVent HOFFMAN
2919.11000
/ ea
- Application: Controls and Drives
- ARRA Compliant: C
- Assemble to Order: No
- Buy American Compliant: C
- Catalog Number: PGLD1285DC
- Color: Light Gray
- Color Code: RAL 7035
- Country of Origin: US
- Currency: USD
- EU RoHS Indicator: C
- Finish: Powder Coat
- Gross Volume Per Pack: 35.08
- Gross Volume UOM: FC
- Gross Weight Per Pack: 0.0174 lb
- Gross Weight per Pack Metric: 79.38
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 9403200090
- Height [Metric]: 134.6200 cm
- Interchangeable: No
- IP Rating: IP66
- Item Group: P11
- Length [Metric]: 95.2500 cm
- Modification Services: Yes
- Package Quantity: 1
- Product Family: ProLine
- Returnable: Y
- Shipping Weight: 174 lb
- Size: 1200x800x500mm
- Sub Brand: ProLine
- Type: Mild Steel Modular Industrial Enclosures
- UNSPSC: 39121323
- UPC 11: 78351014388
- UPC 12: 783510143886
- Width [Metric]: 77.4700 cm
- Stock Status: NONSTOCK
- Brand: nVent HOFFMAN
- Manufacturer: HOFFMAN ENCLOSURES
- Depth: 18.47
- Height: 53.00 in
- Length: 37.50 in
- Material: Mild Steel
- NEMA Rating: 12 Indoor, dust-resistant
- Width: 30.50 in
nVent HOFFMAN ProLine™ Desk Console Enclosure, 1-Door Single Bay Dual Access, Series: Gold/P11, 1176 mm Length, 808 mm Width, 469 mm Depth, NEMA 12, Lock: Quarter Turn Latch, Steel, Polyester Powder Painted, Light Gray
- Compliance Cert URL - Hoffman_PGLD12105DC_Compliance_Certificate.pdf(Compliance Cert URL)
- http://www.hoffmanonline.com(Seller Home Page URL)
- Install Instructions 1 URL - 11015_FBQUO7DH1W6JZS9K.pdf(Install Instructions 1 URL)
- Spec Sheet URL - Spec-01204.pdf(Spec Sheet URL)
- Tech Drawing URL - 87784367.gif(Tech Drawing URL)
- Warranty URL - terms-of-sale(Warranty URL)
- Applications
- Features
| Controls and Drives |
| 14 gauge steel body, 14 and 16 gauge steel doors, 25-degree sloped top, Seams continuously welded and ground smooth, Top door prop allows for single-handed operation, Built-in top door handle, Quarter-turn latches hold top door securely closed, PROLINE latching system and keylocking swing handles on front doors and on rear doors of dual-access enclosures, Internal rails on dual-access enclosures facilitate mounting of PROLINE internal components, Full access provides maximum mounting space and easy access to interior components |
| 14 ga steel body |
| 14 and 16 ga steel doors |
| 25 deg sloped top |
| Seams continuously welded and ground smooth |
| Top door prop allows for single-handed operation |
| Built-in top door handle |
| quarter-turn latches hold top door securely closed |
| ProLine™ latching system and keylocking swing handles on front doors and on rear doors of dual-access enclosures |
| Internal rails on dual access enclosures facilitate mounting of ProLine™ internal components |
| Full access provides maximum mounting space and easy access to interior components |
| With front and rear doors for easy access, the console provides a large space for mounting internal components and controls and can be configured in an arc by using the wedge accessory |
