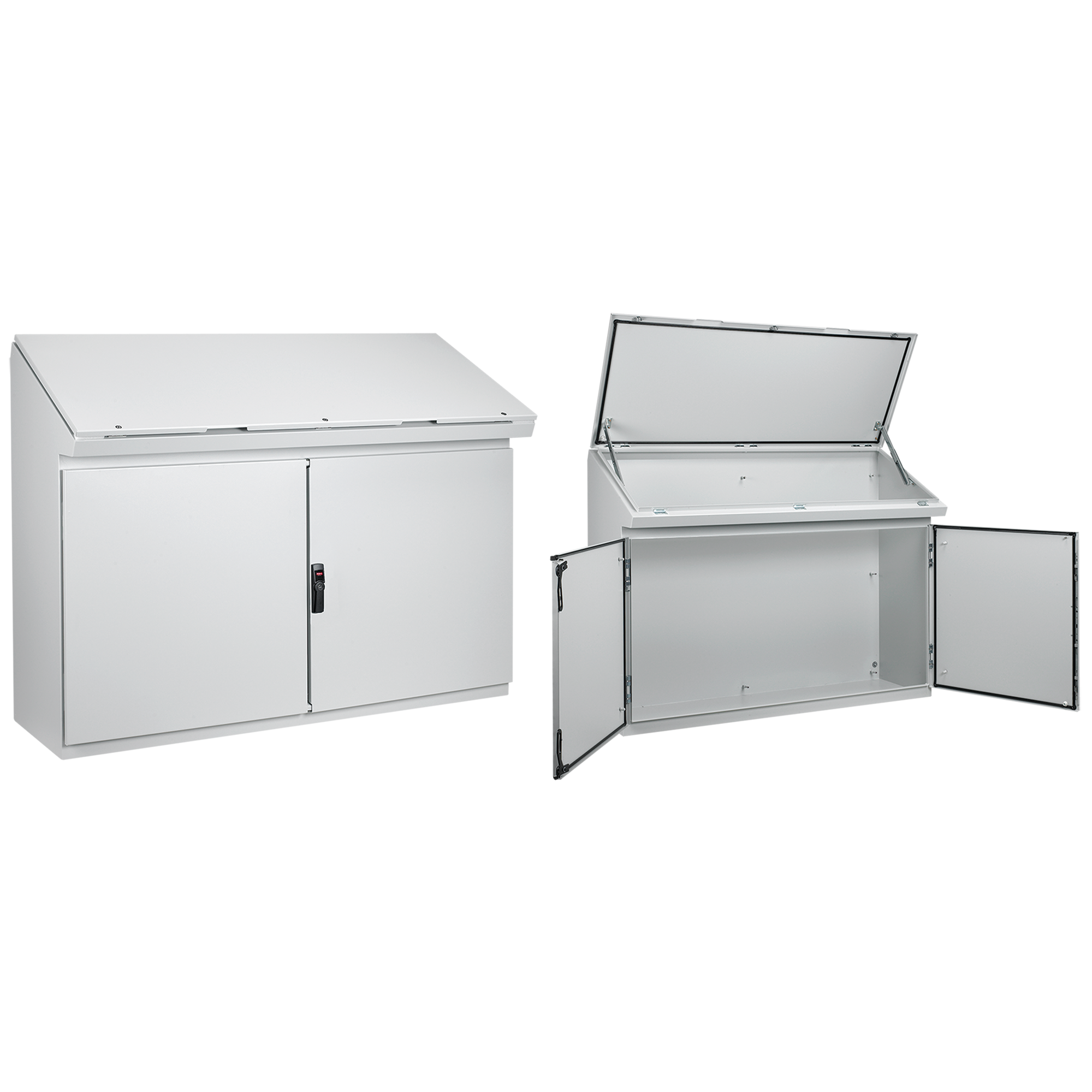

nVent HOFFMAN ProLine™ PGLD12125DC Gold/P11 2-Door Double Bay Dual Access Desk Console Enclosure, 1176 mm L x 1208 mm W x 469 mm D, NEMA 12 NEMA Rating, Steel
Console & Consolet Enclosures
253176
MFG #: PGLD12125DC
nVent HOFFMAN
3663.76000
/ ea
- Application: Controls and Drives
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: PGLD12125DC
- Color: Light Gray
- Country of Origin: US
- Currency: USD
- EU RoHS Indicator: C
- Finish: Powder Coat
- Gross Volume Per Pack: 52.14
- Gross Volume UOM: FC
- Gross Weight Per Pack: 0.0250 lb
- Gross Weight per Pack Metric: 114.31
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 9403200090
- Height [Metric]: 133.9850 cm
- Item Group: P11
- Length [Metric]: 142.2400 cm
- Returnable: Y
- Size: 1200x1200x500mm
- Sub Brand: ProLine
- Type: Mild Steel Modular Industrial Enclosures
- UNSPSC: 39121323
- UPC 11: 78351014391
- UPC 12: 78351014391
- Width [Metric]: 77.4700 cm
- Stock Status: NONSTOCK
- Brand: nVent HOFFMAN
- Manufacturer: HOFFMAN ENCLOSURES
- Depth: 18.47
- Height: 52.75 in
- Length: 56.00 in
- Material: Mild Steel
- NEMA Rating: 12 Indoor, dust-resistant
- Width: 30.50 in
nVent HOFFMAN ProLine™ Desk Console Enclosure, 2-Door Double Bay Dual Access, Series: Gold/P11, 1176 mm Length, 1208 mm Width, 469 mm Depth, NEMA 12, Lock: Quarter Turn Latch, Steel, Polyester Powder Painted, Light Gray
- Applications
- Features
| Controls and Drives |
| 14 gauge steel body, 14 and 16 gauge steel doors, 25-degree sloped top, Seams continuously welded and ground smooth, Top door prop allows for single-handed operation, Built-in top door handle, Quarter-turn latches hold top door securely closed, PROLINE latching system and keylocking swing handles on front doors and on rear doors of dual-access enclosures, Internal rails on dual-access enclosures facilitate mounting of PROLINE internal components, Full access provides maximum mounting space and easy access to interior components |
| 14 ga steel body |
| 14 and 16 ga steel doors |
| 25 deg sloped top |
| Seams continuously welded and ground smooth |
| Top door prop allows for single-handed operation |
| Built-in top door handle |
| quarter-turn latches hold top door securely closed |
| ProLine™ latching system and keylocking swing handles on front doors and on rear doors of dual-access enclosures |
| Internal rails on dual access enclosures facilitate mounting of ProLine™ internal components |
| Full access provides maximum mounting space and easy access to interior components |
| With front and rear doors for easy access, the console provides a large space for mounting internal components and controls and can be configured in an arc by using the wedge accessory |
