SKU158832
MFGR #PGLD12105DC
Your Cost: $2,865.19/ea

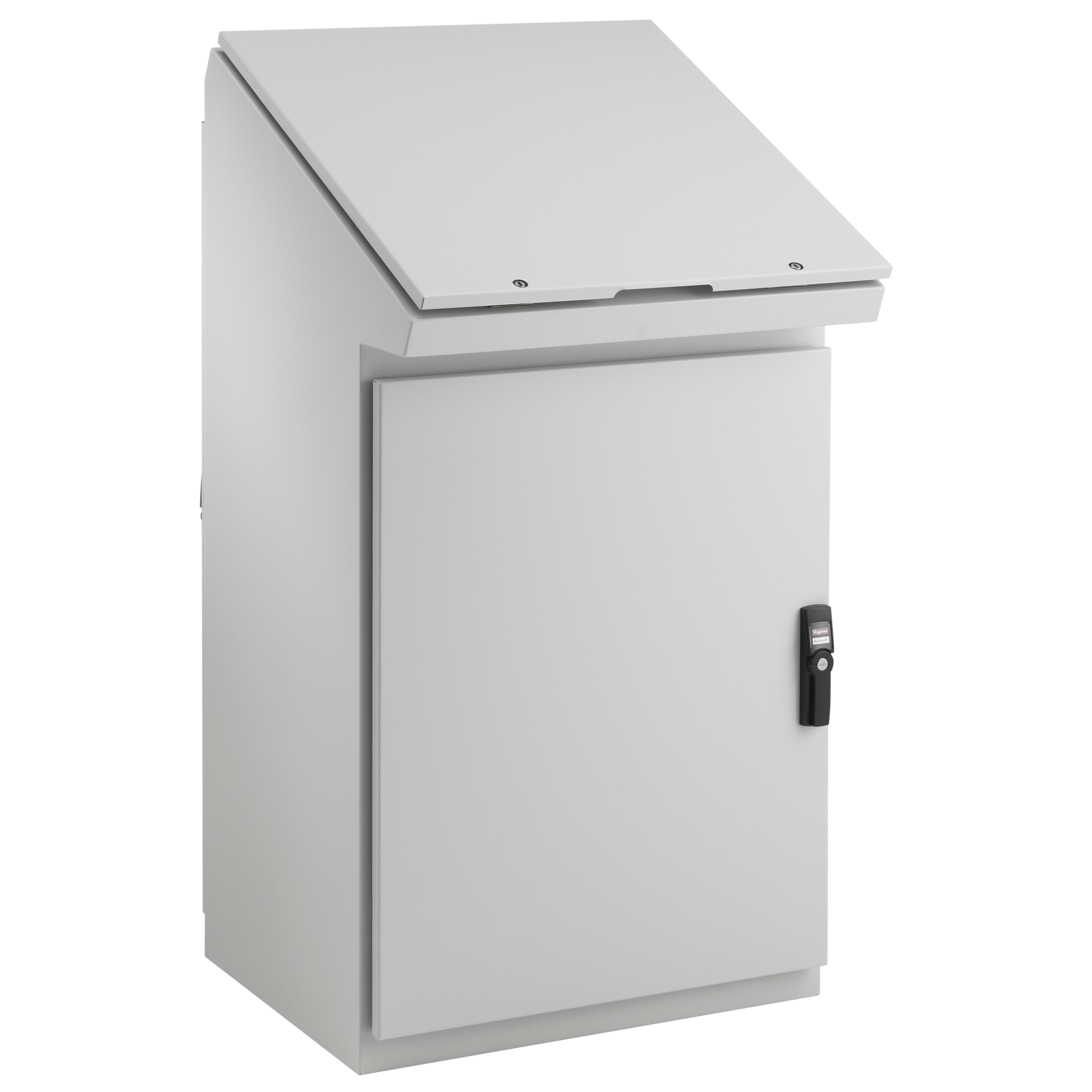

nVent HOFFMAN ProLine™ Desk Console Enclosure, 1-Door Single Bay Single Access, Series: Gold/P11, 1175 mm Length, 946 mm Width, 469 mm Depth, NEMA 12, Hinged Cover, Lock: Quarter Turn Latch, Steel, Polyester Powder Painted, Light Gray
nVent HOFFMAN ProLine™ Desk Console Enclosure, 1-Door Single Bay Single Access, Series: Gold/P11, 1175 mm Length, 946 mm Width, 469 mm Depth, NEMA 12, Hinged Cover, Lock: Quarter Turn Latch, Steel, Polyester Powder Painted, Light Gray
Application Controls and Drives ARRA Compliant C Assemble to Order No Buy American Compliant C Catalog Number PGLD12105DC Color Light Gray Color Code RAL 7035 Country of Origin US Currency USD EU RoHS Indicator RCP Finish Powder Coat Gross Volume Per Pack 43.97 Gross Volume UOM FC Gross Weight Per Pack 0.0174 lb Gross Weight per Pack Metric 82.56 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8538100000 Height [Metric] 134.6200 cm Interchangeable No IP Rating IP66 Item Group P11 Length [Metric] 119.3800 cm Modification Services Yes Package Quantity 1 Product Family ProLine Returnable Y Shipping Weight 174 lb Size 1200x1000x500mm Sub Brand ProLine Type Mild Steel Modular Industrial Enclosures UNSPSC 39121323 UPC 11 78351014384 UPC 12 783510143848 Width [Metric] 77.4700 cm Stock Status NONSTOCK Brand nVent HOFFMAN Manufacturer HOFFMAN ENCLOSURES Depth 18.47 Height 53.0000 in Length 30.5000 in Material Mild Steel NEMA Rating 12 Indoor, dust-resistant Width 47.0000 in Controls and Drives 14 gauge steel body, 14 and 16 gauge steel doors, 25-degree sloped top, Seams continuously welded and ground smooth, Top door prop allows for single-handed operation, Built-in top door handle, Quarter-turn latches hold top door securely closed, PROLINE latching system and keylocking swing handles on front doors and on rear doors of dual-access enclosures, Internal rails on dual-access enclosures facilitate mounting of PROLINE internal components, Full access provides maximum mounting space and easy access to interior components 14 ga steel body 14 and 16 ga steel doors 25 deg sloped top Seams continuously welded and ground smooth Top door prop allows for single-handed operation Built-in top door handle quarter-turn latches hold top door securely closed ProLine™ latching system and keylocking swing handles on front doors and on rear doors of dual-access enclosures Internal rails on dual access enclosures facilitate mounting of ProLine™ internal components Full access provides maximum mounting space and easy access to interior components With front and rear doors for easy access, the console provides a large space for mounting internal components and controls and can be configured in an arc by using the wedge accessory
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Controls and Drives |
| ARRA Compliant | C |
| Assemble to Order | No |
| Buy American Compliant | C |
| Catalog Number | PGLD12105DC |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | RCP |
| Finish | Powder Coat |
| Gross Volume Per Pack | 43.97 |
| Gross Volume UOM | FC |
| Gross Weight Per Pack | 0.0174 lb |
| Gross Weight per Pack Metric | 82.56 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8538100000 |
| Height [Metric] | 134.6200 cm |
| Interchangeable | No |
| IP Rating | IP66 |
| Item Group | P11 |
| Length [Metric] | 119.3800 cm |
| Modification Services | Yes |
| Package Quantity | 1 |
| Product Family | ProLine |
| Returnable | Y |
| Shipping Weight | 174 lb |
| Size | 1200x1000x500mm |
| Sub Brand | ProLine |
| Type | Mild Steel Modular Industrial Enclosures |
| UNSPSC | 39121323 |
| UPC 11 | 78351014384 |
| UPC 12 | 783510143848 |
| Width [Metric] | 77.4700 cm |
| Stock Status | NONSTOCK |
| Brand | nVent HOFFMAN |
| Manufacturer | HOFFMAN ENCLOSURES |
| Depth | 18.47 |
| Height | 53.0000 in |
| Length | 30.5000 in |
| Material | Mild Steel |
| NEMA Rating | 12 Indoor, dust-resistant |
| Width | 47.0000 in |
| Controls and Drives |
| 14 gauge steel body, 14 and 16 gauge steel doors, 25-degree sloped top, Seams continuously welded and ground smooth, Top door prop allows for single-handed operation, Built-in top door handle, Quarter-turn latches hold top door securely closed, PROLINE latching system and keylocking swing handles on front doors and on rear doors of dual-access enclosures, Internal rails on dual-access enclosures facilitate mounting of PROLINE internal components, Full access provides maximum mounting space and easy access to interior components |
| 14 ga steel body |
| 14 and 16 ga steel doors |
| 25 deg sloped top |
| Seams continuously welded and ground smooth |
| Top door prop allows for single-handed operation |
| Built-in top door handle |
| quarter-turn latches hold top door securely closed |
| ProLine™ latching system and keylocking swing handles on front doors and on rear doors of dual-access enclosures |
| Internal rails on dual access enclosures facilitate mounting of ProLine™ internal components |
| Full access provides maximum mounting space and easy access to interior components |
| With front and rear doors for easy access, the console provides a large space for mounting internal components and controls and can be configured in an arc by using the wedge accessory |
