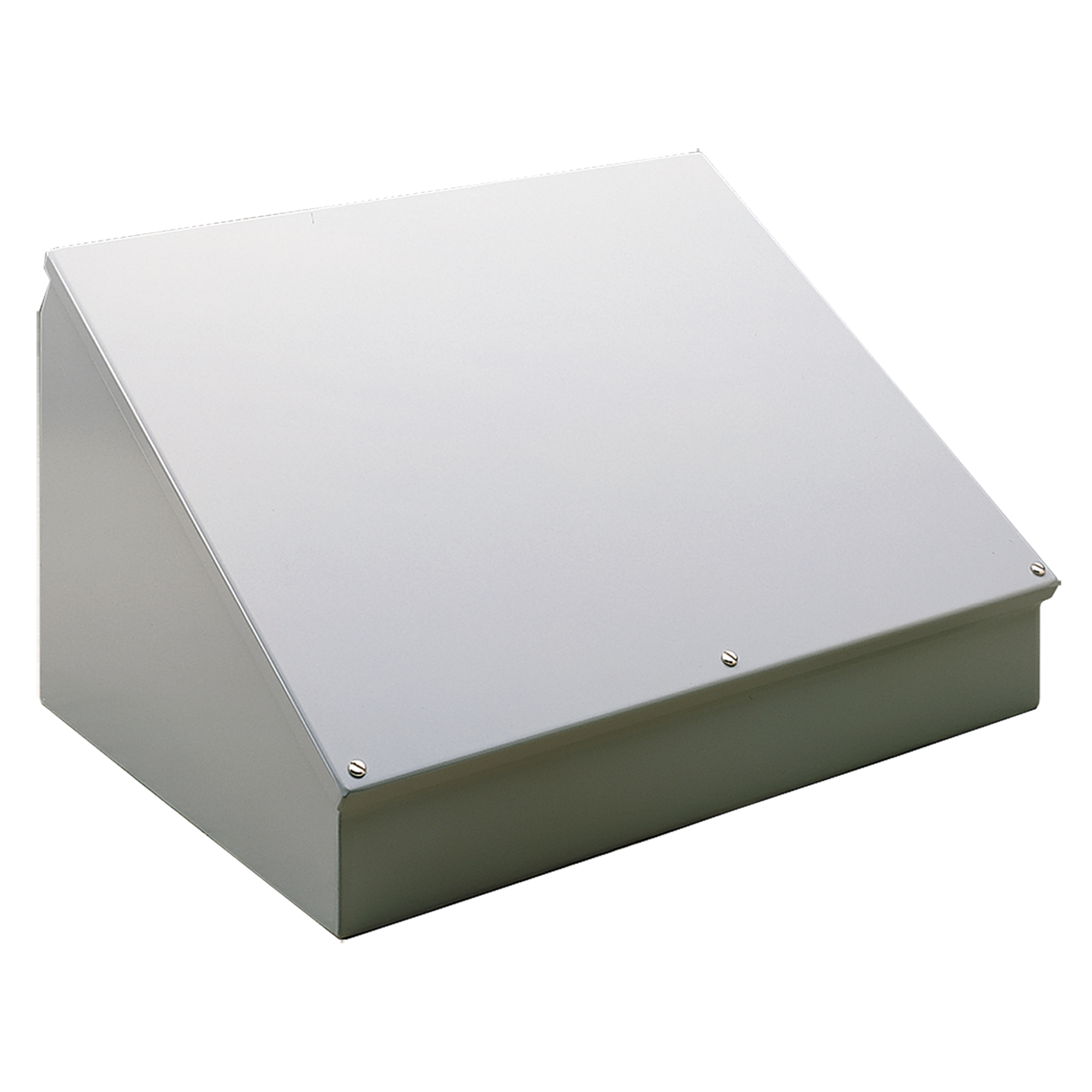

nVent HOFFMAN C8C8SS C5S Consolet Enclosure, 8 in L x 8 in W x 7.09 in D, NEMA 12/IP65 NEMA Rating, 304 Stainless Steel
Console & Consolet Enclosures
302061
MFG #: C8C8SS
nVent HOFFMAN
1074.01000
/ ea
- Application: Controls and Drives
- ARRA Compliant: C
- Assemble to Order: No
- Buy American Compliant: C
- Catalog Number: C8C8SS
- Color: Unpainted
- Country of Origin: US
- Currency: USD
- EU RoHS Indicator: C
- Finish: Brushed #4
- Gross Volume Per Pack: 0.44
- Gross Volume UOM: FC
- Gross Weight Per Pack: 6.9600 lb
- Gross Weight per Pack Metric: 3.27
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 7326908688
- Height [Metric]: 20.8280 cm
- Interchangeable: No
- IP Rating: IP65
- Item Group: C5S
- Length [Metric]: 27.1780 cm
- Modification Services: Yes
- Package Quantity: 1
- Returnable: Y
- Shipping Weight: 7 lb
- Size: 8.00x8.00x7.09 in
- Standards: UL 508A Listed, Type 12, 13, File Number E61997, cUL Listed per CSA C22.2 No 94, Type 12, 13, File Number E61997, NEMA/EEMAC Type 12 , CSA File Number 42186: Type 12, IEC 60529, IP65, RoHS Complaint
- Thickness: 14 ga
- Thickness [Metric]: 1.98 mm
- Type: HMI Enclosure Systems
- UNSPSC: 39121323
- UPC 11: 78351084730
- UPC 12: 783510847302
- Width [Metric]: 22.0980 cm
- Stock Status: NONSTOCK
- Brand: nVent HOFFMAN
- Manufacturer: HOFFMAN ENCLOSURES
- Depth: 7.09
- Height: 8.20 in
- Length: 10.70 in
- Material: 304 Stainless Steel
- NEMA Rating: 12 Indoor, dust-resistant
- Width: 8.70 in
nVent HOFFMAN Consolet Enclosure, Series: C5S, 8 in Length, 8 in Width, 7.09 in Depth, NEMA 12/IP65, Continuous Hinged/Sloped Cover, Surface Mount, 304 Stainless Steel, Brushed
- http://www.hoffmanonline.com(Seller Home Page URL)
- Install Instructions 1 URL - 11015_Y1CESGP3TNLFQIMD.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - stream_document.aspx?rRID=19277&pRID=6829(Install Instructions 1 URL)
- Install Instructions URL - stream_document.aspx?rRID=19277&pRID=6829(Install Instructions URL)
- Spec Sheet URL - Spec-00365.pdf(Spec Sheet URL)
- Tech Drawing URL - 87794845.gif(Tech Drawing URL)
- Warranty URL - terms-of-sale(Warranty URL)
- Applications
- Features
| Controls and Drives |
| Type 304 stainless steel, Seams continuously welded and ground smooth, Captivated cover screws thread into sealed wells, Cover attached with continuous hinge, Oil-resistant gasket, Bonding provision on door |
| Seams continuously welded and ground smooth, captivated cover screws thread into sealed wells |
| Captivated cover screws thread into sealed wells |
| Cover attached with continuous hinge |
| Oil-resistant gasket |
| Bonding provision on door |
