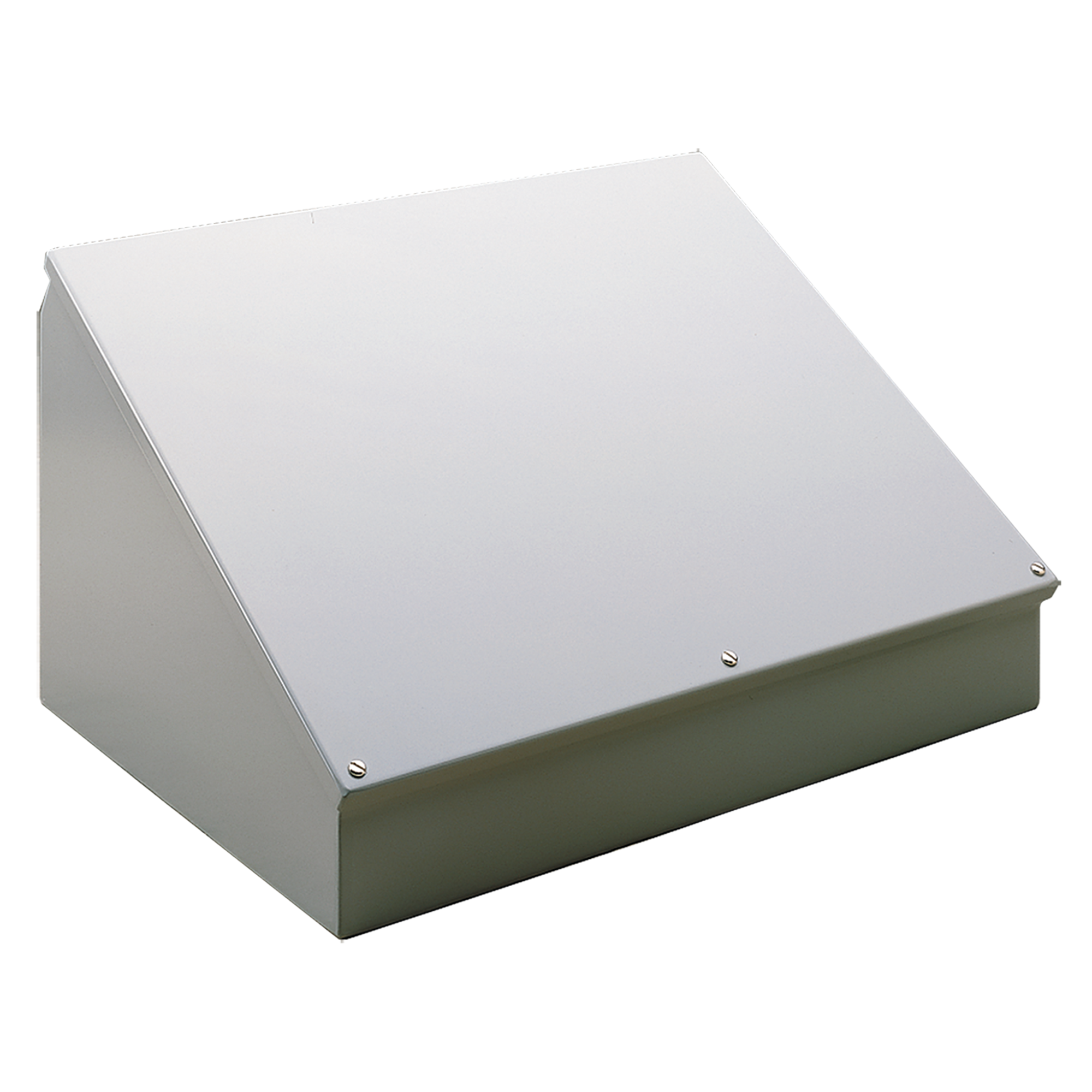

nVent HOFFMAN C20C20SS C5S Consolet Enclosure, 20 in L x 20 in W x 13.09 in D, NEMA 12/IP65 NEMA Rating, 304 Stainless Steel
Console & Consolet Enclosures
384559
MFG #: C20C20SS
nVent HOFFMAN
2616.13000
/ ea
- Application: Controls and Drives
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: C20C20SS
- Color: Unpainted
- Country of Origin: US
- Currency: USD
- EU RoHS Indicator: NEW
- Finish: Brushed #4
- Gross Volume Per Pack: 3.39
- Gross Volume UOM: FC
- Gross Weight Per Pack: 0.0033 lb
- Gross Weight per Pack Metric: 14.52
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 7326908688
- Height [Metric]: 35.0520 cm
- Item Group: C5S
- Length [Metric]: 55.8800 cm
- Returnable: Y
- Size: 20.00x20.00x13.09 in
- Standard: UL 508A Listed, Type 12, 13, File Number E61997, cUL Listed per CSA C22.2 No 94, Type 12, 13, File Number E61997, NEMA/EEMAC Type 12 , CSA File Number 42186: Type 12, IEC 60529, IP65
- Standards: UL 508A Listed, Type 12, 13, File Number E61997, cUL Listed per CSA C22.2 No 94, Type 12, 13, File Number E61997, NEMA/EEMAC Type 12 , CSA File Number 42186: Type 12, IEC 60529, IP65, RoHS Complaint
- Type: HMI Enclosure Systems
- UNSPSC: 39121323
- UPC 11: 78351084860
- UPC 12: 78351084860
- Width [Metric]: 49.0220 cm
- Stock Status: NONSTOCK
- Brand: nVent HOFFMAN
- Manufacturer: HOFFMAN ENCLOSURES
- Depth: 13.09
- Height: 13.8000 in
- Length: 19.3000 in
- Material: 304 Stainless Steel
- NEMA Rating: 12 Indoor, dust-resistant
- Width: 22.0000 in
nVent HOFFMAN Consolet Enclosure, Series: C5S, 20 in Length, 20 in Width, 13.09 in Depth, NEMA 12/IP65, Continuous Hinged/Sloped Cover, Surface Mount, 304 Stainless Steel, Brushed
- http://www.hoffmanonline.com(Seller Home Page URL)
- Install Instructions 1 URL - 11015_Y1CESGP3TNLFQIMD.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - stream_document.aspx?rRID=19277&pRID=6760(Install Instructions 1 URL)
- Install Instructions URL - stream_document.aspx?rRID=19277&pRID=6760(Install Instructions URL)
- Spec Sheet URL - Spec-00365.pdf(Spec Sheet URL)
- Tech Drawing URL - 87794845.gif(Tech Drawing URL)
- Warranty URL - terms-of-sale(Warranty URL)
- Applications
- Features
| Controls and Drives |
| 12 Indoor, dust-resistant |
| Seams continuously welded and ground smooth, captivated cover screws thread into sealed wells |
| Captivated cover screws thread into sealed wells |
| Cover attached with continuous hinge |
| Oil-resistant gasket |
| Bonding provision on door |
| Slopped cover |
| Captivated cover screws thread into sealed wells |
| These enclosures can be mounted on either of two sides for placement on desktops, pedestals or other flat surfaces |
