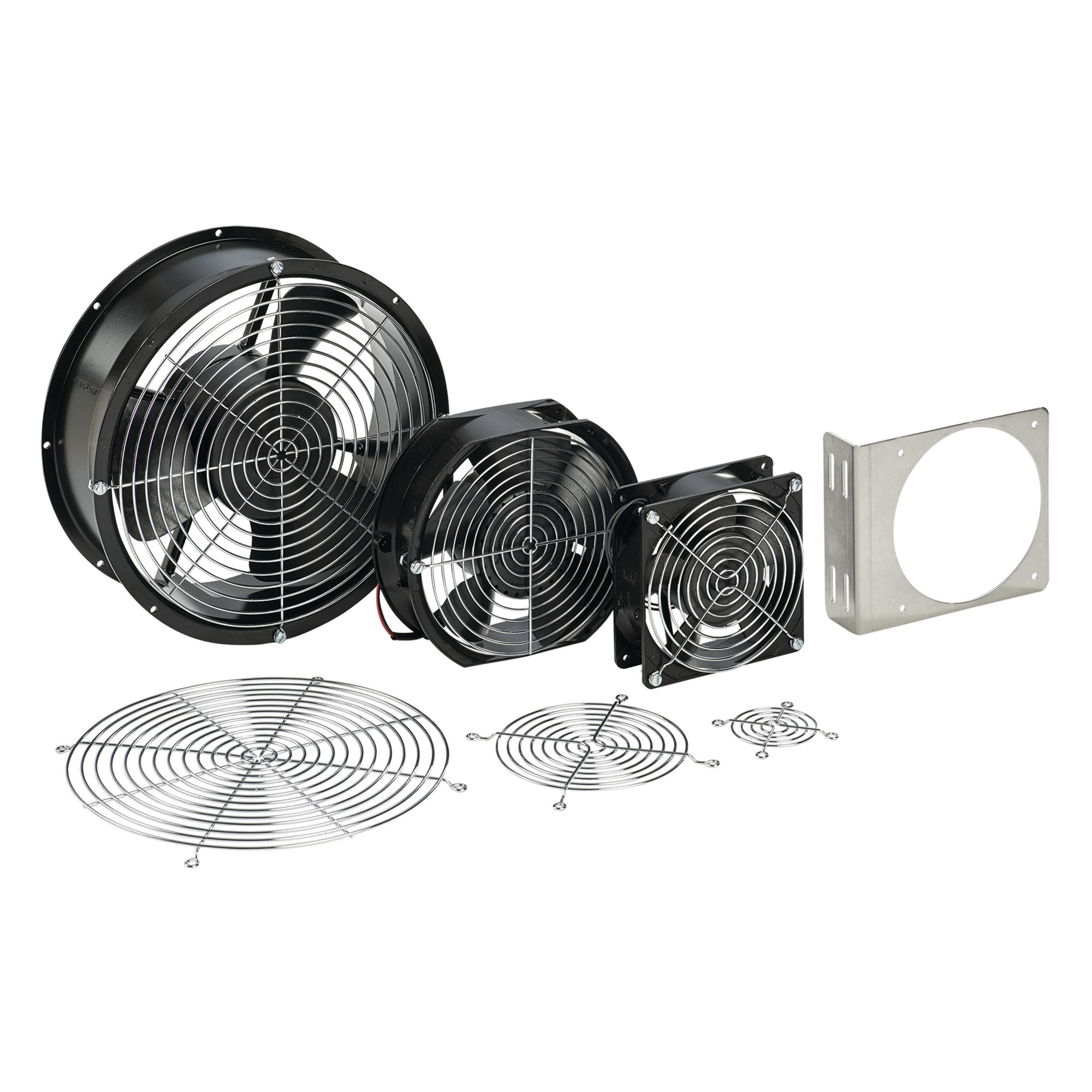

nVent HOFFMAN A6AXFN Compact Axial Fan, 115 VAC, 0.36/0.45 A, 36/32 W Power Rating, 200/240 cfm Air Flow
nVent HOFFMAN A6AXFN Compact Axial Fan, 115 VAC, 0.36/0.45 A, 36/32 W Power Rating, 200/240 cfm Air Flow
SKU24607
MFGR #A6AXFN
Your Cost: $318.62/ea
nVent HOFFMAN Axial Fan, Compact, Series: D85, 115 VAC, 0.36/0.45 A, 36/32 W Power, 50/56 dBA Sound Level, 200/240 cfm Air Flow, 2670/3200 rpm Speed, AC Motor, Polycarbonate Housing Material, 6.77 in Dia x 1.5 in D Dimensions
nVent HOFFMAN Axial Fan, Compact, Series: D85, 115 VAC, 0.36/0.45 A, 36/32 W Power, 50/56 dBA Sound Level, 200/240 cfm Air Flow, 2670/3200 rpm Speed, AC Motor, Polycarbonate Housing Material, 6.77 in Dia x 1.5 in D Dimensions
Application Controls and Drives; Power Distribution ARRA Compliant C Blade Size 6.77-inch diameter Buy American Compliant C Catalog Number A6AXFN Color Jet Black Color Code RAL 9005 Country of Origin CN Currency USD EU RoHS Indicator RCP Fan Depth 1.5 in Fan Diameter 6.77 in Fan Size 6-in. Fans in Fan Speed 3200 RPM at 60 Hz Finish Powder Coat Flow Rate 200/240 CFM max Gross Volume Per Pack 0.16 Gross Volume UOM FC Gross Weight Per Pack 2.1350 lb Gross Weight per Pack Metric 0.95 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8414596590 Height 4.6000 in Height [Metric] 11.6840 cm Item Group D85 Length 7.9000 in Length [Metric] 20.0660 cm Material Mild Steel Max CFM 200/240 CFM Max Current .45/.36 A Max m3|hr 340/408 CMH Motor Type AC Motor Nominal Fan Size 6 in Package Quantity 1 Returnable Y Size 115v 50/60Hz in Sound Pressure Level 56 dBA at 60 Hz Standards UL Listed, CSA Certified, RoHS Compliant Type Fans and Filter Fans UNSPSC 40101604 UPC 11 78351022220 UPC 12 78351022220 Voltage AC 100 - 120 VAC Width 7.7000 in Width [Metric] 19.5580 cm Stock Status NORMALLY STOCKED Brand nVent HOFFMAN Manufacturer HOFFMAN ENCLOSURES Amperage Rating .45/.36 A Voltage Rating 100 - 120 VAC Controls and Drives; Power Distribution Maximum operating temperature is 158 deg F 4 in fan is thermally protected and uses permanently lubricated ball bearings Split capacitor motors are thermally protected to avoid premature failure Dynamically balanced impellers molded from polycarbonate material One finger guard is furnished All mounting hardware is provided 240 and 560 cfm fans have ball bearing construction and split capacitor motors Fans have lead wires with ends stripped 1/2 in or 6 ft cord with polarized plug for power connections Fan housing is black finish Can be installed on any surface of an enclosure, with the addition of accessory fan brackets, compact cooling fans can also be installed in any position inside the enclosure for spot cooling or air circulation installation Fan housing is black finish Can be installed on any surface of an enclosure, with the addition of accessory fan brackets, compact cooling fans can also be installed in any position inside the enclosure for spot cooling or air circulation installation
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Controls and Drives; Power Distribution |
| ARRA Compliant | C |
| Blade Size | 6.77-inch diameter |
| Buy American Compliant | C |
| Catalog Number | A6AXFN |
| Color | Jet Black |
| Color Code | RAL 9005 |
| Country of Origin | CN |
| Currency | USD |
| EU RoHS Indicator | RCP |
| Fan Depth | 1.5 in |
| Fan Diameter | 6.77 in |
| Fan Size | 6-in. Fans in |
| Fan Speed | 3200 RPM at 60 Hz |
| Finish | Powder Coat |
| Flow Rate | 200/240 CFM max |
| Gross Volume Per Pack | 0.16 |
| Gross Volume UOM | FC |
| Gross Weight Per Pack | 2.1350 lb |
| Gross Weight per Pack Metric | 0.95 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8414596590 |
| Height | 4.6000 in |
| Height [Metric] | 11.6840 cm |
| Item Group | D85 |
| Length | 7.9000 in |
| Length [Metric] | 20.0660 cm |
| Material | Mild Steel |
| Max CFM | 200/240 CFM |
| Max Current | .45/.36 A |
| Max m3|hr | 340/408 CMH |
| Motor Type | AC Motor |
| Nominal Fan Size | 6 in |
| Package Quantity | 1 |
| Returnable | Y |
| Size | 115v 50/60Hz in |
| Sound Pressure Level | 56 dBA at 60 Hz |
| Standards | UL Listed, CSA Certified, RoHS Compliant |
| Type | Fans and Filter Fans |
| UNSPSC | 40101604 |
| UPC 11 | 78351022220 |
| UPC 12 | 78351022220 |
| Voltage AC | 100 - 120 VAC |
| Width | 7.7000 in |
| Width [Metric] | 19.5580 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | nVent HOFFMAN |
| Manufacturer | HOFFMAN ENCLOSURES |
| Amperage Rating | .45/.36 A |
| Voltage Rating | 100 - 120 VAC |
| Controls and Drives; Power Distribution |
| Maximum operating temperature is 158 deg F |
| 4 in fan is thermally protected and uses permanently lubricated ball bearings |
| Split capacitor motors are thermally protected to avoid premature failure |
| Dynamically balanced impellers molded from polycarbonate material |
| One finger guard is furnished |
| All mounting hardware is provided |
| 240 and 560 cfm fans have ball bearing construction and split capacitor motors |
| Fans have lead wires with ends stripped 1/2 in or 6 ft cord with polarized plug for power connections |
| Fan housing is black finish |
| Can be installed on any surface of an enclosure, with the addition of accessory fan brackets, compact cooling fans can also be installed in any position inside the enclosure for spot cooling or air circulation installation |
| Fan housing is black finish |
| Can be installed on any surface of an enclosure, with the addition of accessory fan brackets, compact cooling fans can also be installed in any position inside the enclosure for spot cooling or air circulation installation |
