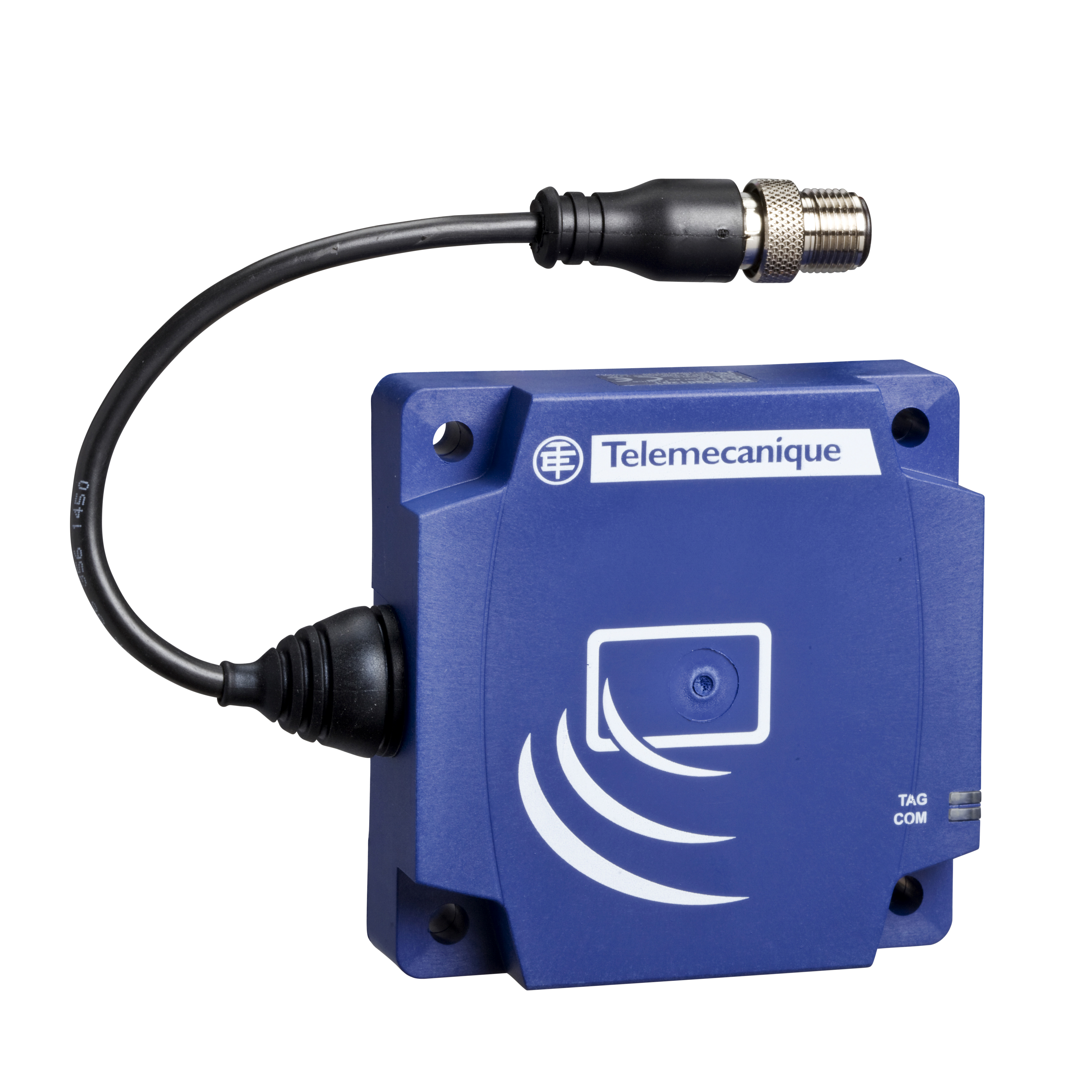

Telemecanique XGCS8901201 OsiSense® Telemecanique Compact Flat RFID OSITRACK Smart Antenna, 19.2 to 29 VDC, <60 mA, 13.56 MHz
RF Antennas
PDW~6422340
MFG #: XGCS8901201
Telemecanique Sensors
1185.00000
/ ea
- Alternate Catalog Number: XGCS8901201
- Antenna Size: 80 x 80 x 26
- Application: For RFID microchip INSIDE (micropass), RFID microchip STM (CRIX4K), RFID microchip Texas (Tag-it HFI), RFID microchip fujitsu (MB89R118 - MB89R119), RFID microchip NXP (SL2, SL1, ultralight, Std 1K/4K, desfire) and RFID microchip microelectronic (EM4135)
- ARRA Compliant: N
- Body: FLAT FORM 80 X 80 X 26
- Buy American Compliant: N
- Catalog Number: XGCS8901201
- Connector: 5 MALE REMOTE CONNECTOR M12, SHIELDED CABLE 0.2 M,RS485
- Connector Type: 5-Pin M12 Male
- Country of Origin: FR
- Currency: USD
- Enclosure: IP65 CONFORMING TO IEC 60529
- Enclosure Type: IP65
- EU RoHS Indicator: Y
- Gross Volume Per Pack: 33.59
- Gross Volume per Pack Metric: 550.44
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 0.5650 lb
- Gross Weight per Pack Metric: 257.00
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8543709860
- Height: 5.07 in
- Height [Metric]: 13.0000 cm
- Indicator: COMMUNICATION NETWORK 1 LED DUAL COLOUR)-RFID COMMUNICATION 1 LED DUAL COLOUR)
- Item Group: 22491
- Length: 3.70 in
- Length [Metric]: 9.5000 cm
- Load: 19.2...29 V DC
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=860850&lang=en-us
- Operating Temperature: -25-70 A°C
- Returnable: N
- Sensing Range: 20-100 MM
- Sub Brand: OSISENSE
- Substitute Product Catalog Number: XGHB221346
- Supply Voltage: 24 V DC PROTECTIVE EXTRA LOW VOLTAGE
- Temperature Rating: -13 to 158
- Type: Compact smart antenna
- UNSPSC: 39122230
- UPC 11: 78590192824
- UPC 12: 785901928249
- Vibration: 2 MM 5-29.5 HZ)EN 60068-2-6-7 GN 29.5-150 HZ)EN 60068-2-6
- Warranty Description: Contractual Warranty:18 months
- Width: 1.56 in
- Width [Metric]: 4.0000 cm
- Brand: Telemecanique Sensors
- Manufacturer: Telemecanique Sensors
- Amperage Rating: <60
- Frequency Rating: 13.56
- Voltage Rating: 19.2 to 29
Telemecanique OsiSense® Smart Antenna, Compact Flat RFID OSITRACK, 19.2 to 29 VDC, <60 mA, 13.56 MHz, 80 x 80 x 26 mm Antenna, -13 to 158 deg F, 5-Pin M12 Male Connector, IP65
- Brochure URL - 11003_FSAPC3UNYMWQ7TJZ.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_7LFSKMDRTXOAVYUP.pdf(Service Manual URL)
- Service Manual URL - 11003_S87OT3Q5AGE9HJRC.pdf(Service Manual URL)
- Spec Sheet URL - 11003_PN5RW93TYEKSUDHQ.pdf(Spec Sheet URL)
- User Manual URL - 11003_NSKORBIF3U5A2W9T.pdf(User Manual URL)
- User Manual URL - 11003_WSZXHKMJ8C305YOA.pdf(User Manual URL)
- Applications
- Features
| For RFID microchip INSIDE (micropass), RFID microchip STM (CRIX4K), RFID microchip Texas (Tag-it HFI), RFID microchip fujitsu (MB89R118 - MB89R119), RFID microchip NXP (SL2, SL1, ultralight, Std 1K/4K, desfire) and RFID microchip microelectronic (EM4135) |
| ISO 14443 STANDARD TAGS-ISO 15693 STANDARD TAGS-AUTOMATIC DETECTION OF THE TYPE OF TAG,MODBUS RTU-UNI-TELWAY |
