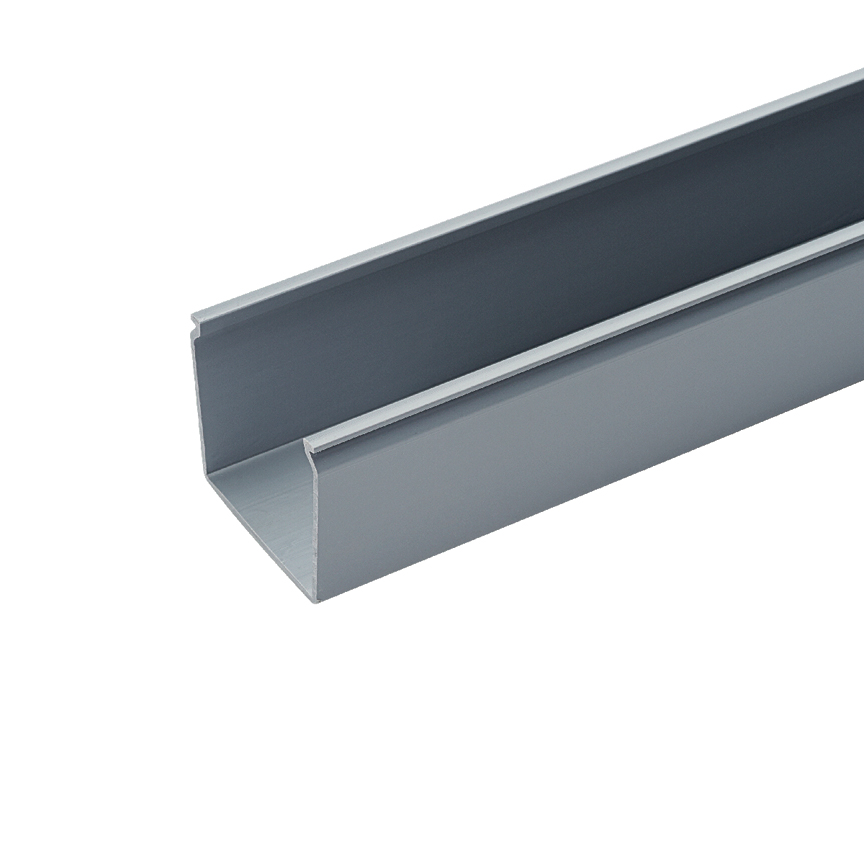

Panduit® Panduct® FS3X3LG6NM Type FS Wiring Duct, Solid Wall Slot, 3 in W x 3 in D, PVC
Solid Wall Wiring Ducts
437417
MFG #: FS3X3LG6NM
Panduit®
9.71000
/ ft
- Adhesive Backed: No Mounting Holes
- Application: Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
- ARRA Compliant: Y
- Buy American Compliant: Y
- Catalog Number: FS3X3LG6NM
- Color: Light Gray
- Connection: No Mounting Holes
- Country of Origin: USA
- Currency: USD
- EU RoHS Indicator: Y
- Gross Volume UOM: CF
- Gross Volume UOM Metric: m3
- Gross Weight Per Pack: 0.6200 lb
- Gross Weight per Pack Metric: 1.70
- Gross Weight UOM Metric: kg
- Height: 3.00 in
- Height [Metric]: 7.6200 cm
- Length: 72.00 in
- Length [Metric]: 182.8800 cm
- Mounting Holes: None
- Mounting Type: Hole/Surface
- Returnable: Y
- Size: 3.00 x 3.00
- Slot Pitch: NA in
- Standard: RoHS Compliant, UL Recognized, CE Compliant
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedUL ListedUL94 V-0 Flammability RatingCE Marked
- Sub Brand: Panduct?®
- Thickness: 0.1 in
- Type: Base Wiring Duct
- UNSPSC: 39131712
- UPC 11: 07498334128
- UPC 12: 07498334128
- Width [Metric]: 7.6200 cm
- Stock Status: NONSTOCK
- Brand: Panduit®
- Manufacturer: Panduit®
- Depth: 3.12 in
- Material: PVC
- Width: 3.00 in
The temporary protection film shall protect duct covers from damage during the installation process. The film shall be see-through, clear and peel away easily from the cover without leaving a sticky residue. The film shall provide a place for writing notes without allowing the ink to bleed through.
- http://www.panduit.com(Seller Home Page URL)
- Install Instructions 1 URL - C-WDFS3X3-36897-903-R2--ENG.pdf(Install Instructions 1 URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet 1 URL - Panduit_FS_5X_5LG6NM_Specification_Sheet_1.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 10965_A4H2TZDUXQY3G6RJ.pdf(Spec Sheet URL)
- Spec Sheet URL - 10965_H82FN9PMQ0CKOUWL.pdf(Spec Sheet URL)
- Spec Sheet URL - D-WDSP28--WW-ENG-TypeCWiringDuctCover-W.pdf(Spec Sheet URL)
- Tech Drawing URL - 10965_CL1GKM5WDAZPTX9Q.dxf(Tech Drawing URL)
- Tech Drawing URL - C-WDFS3X3LG6NM--ENG.PDF(Tech Drawing URL)
- Applications
- Features
| Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications |
| Solid Wall |
| 122 deg F UL Recognized continuous use temperature |
| UL94 flammability rating of V-0 |
| Solid wall design fully encloses cables providing maximum protection and aesthetics |
| Non-slip cover will not slide easily when installed on duct base |
| Flush cover design holds more wires than traditional duct designs |
| Base scoreline allows full wire carrying capacity at wiring duct junctions such as tees and corners |
| Specially formulated lead-free material eliminates health concerns associated with PVC which contains lead |
| Base and covers sold separately |
| Lead-Free PVC |
| External dimension: 3-1/4 in W x 3.12 in D |
