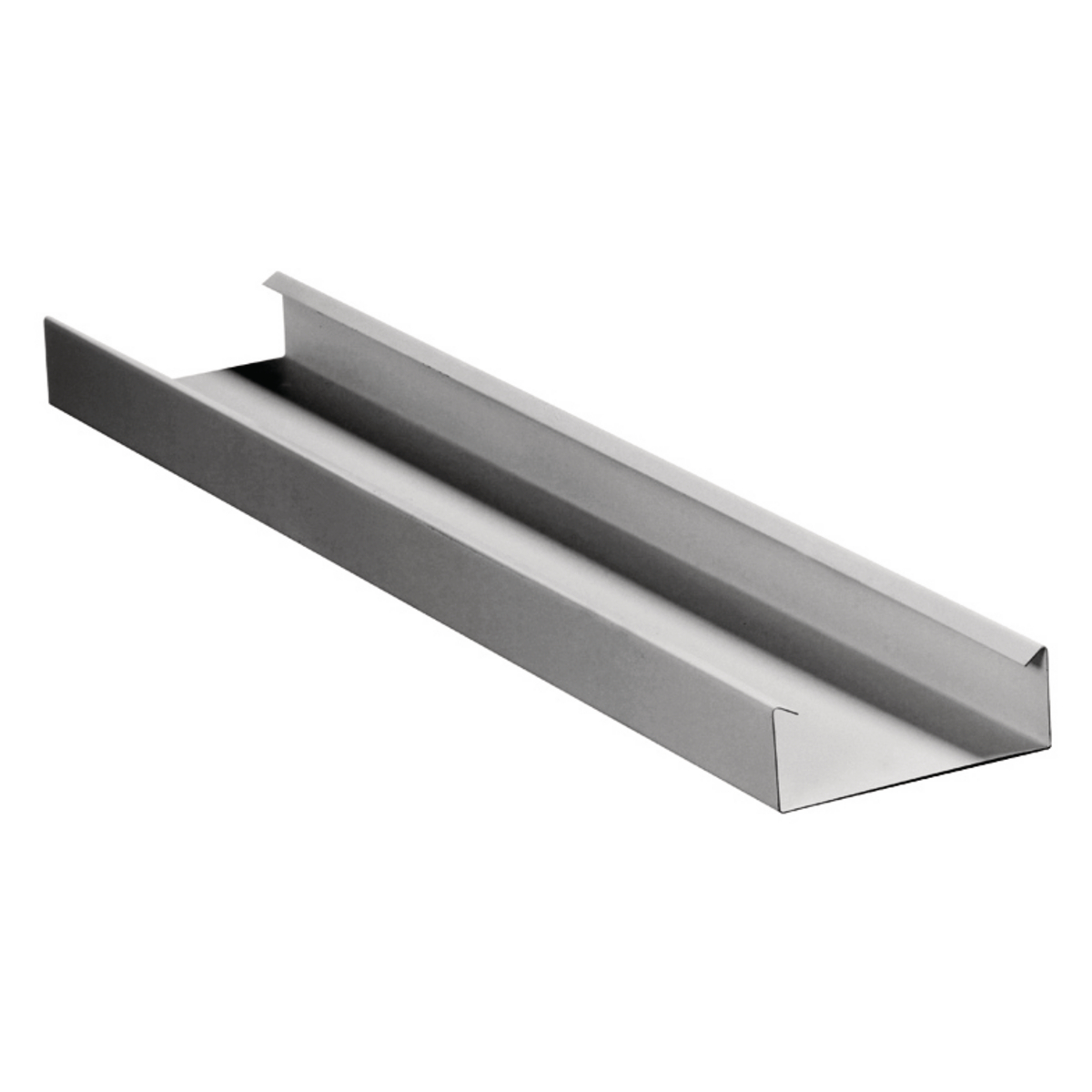

Hubbell® HBL4750B10GY HBL4750 Raceway Base, 120 in L x 4.76 in W x 1.62 in H, Steel, Gray
Raceway Bases
251675
MFG #: HBL4750B10GY
Hubbell Wiring Device-Kellems
7.66000
/ ea
- Application: 10' Single Channel Base
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: HBL4750B10GY
- Construction: Roll Form
- Country of Origin: US
- Cover Type: Removable
- Currency: USD
- Enclosure: NEMA 1 Rating
- EU RoHS Indicator: Y
- Finish: Gray
- Gross Weight Per Pack: 1.6700 lb
- Gross Weight per Pack Metric: 0.76
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 7216910010
- Height [Metric]: 4.6228 cm
- Length [Metric]: 30.48 cm
- Nominal Cross Section: 7.20 Square Inches
- Non Hazardous Location: Non Hazardous
- Standard: CSA Standard C22.2 no. 62;E253976 /E253830 /E253833;UL Standard UL 5
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 5 File No. E253976/E253830/E253833CSA C22.2 No. 63 File No. LR87514NEC Article 381TIA ApprovedEIA-569BNEMA 1
- Straight Section Length: 10' Single Channel Base
- Sub Brand: Metallic Raceway Products
- Type: 1-Channel Standard
- UNSPSC: 39131710
- UPC 11: 78358521636
- UPC 12: 783585216362
- Width [Metric]: 12.1158 cm
- Stock Status: NONSTOCK
- Brand: Hubbell Wiring Device-Kellems
- Manufacturer: Hubbell
- Color: Gray
- Height: 1.82 in
- Length: 12.00 in
- Material: Roll Formed Steel
- Width: 4.77 in
The HBL4750 series is a 2-piece, metal raceway. A flexible channel divider provides industry leading data capacity in the same profile with a 2/3 datacom split. Greater capacity offers more room for moves, adds and changes. Raceway channel can also be used with no divider for maximum cable fill in single service applications. Extensive line available of external, internal, flat, tee and entrance end fittings. Wide variety of overlapping cover plates provide flexibility for power, data, voice, audio and video applications. Hubbell's HBL4750 Series Metal Raceway is available in 20' lengths and is available in ivory or gray.
- Catalog URL - PREMISE_WIRING_HBL20C215GY_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - WIRING_PD2243_INSTALLINST.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1487175021497.pdf(Install Instructions URL)
- Line Drawing URL - WDK_HBL4750B10_DRAWING_PDF.pdf(Line Drawing URL)
- Spec Sheet URL - viewcatalog.aspx?Search=HBL4750B10GY(Spec Sheet URL)
- Tech Drawing URL - IDW_DOCUMENT_1537663743655.pdf(Tech Drawing URL)
- Applications
- Features
| 10' Single Channel Base |
| Standard Product |
| Without knockouts |
| Device bracket plate for use with Hubbell® KP plates and Hubbell® iSTATION™ modules and bezels |
| Large cross sectional area provides for maximum cable capacity throughout entire system |
| A flexible channel divider provides industry leading data capacity in the same profile with a 2/3 datacom split |
| By-pass divider opening accepts GFCI or surge devices to be mounted in 70/30 divided channel |
| Greater capacity offers more room for moves, adds and changes |
| Raceway channel can also be used with no divider for maximum cable fill in single service applications |
| Wide variety of overlapping cover plates provide flexibility for power, data, voice, audio and video applications |
| Cover plates help to conceal unsightly gaps caused by miscuts |
| Pre-cut cover options allow for 12 in (305), 18 in (343), 24 in (495) and 36 in (800) center mounting |
| Roll form construction |
