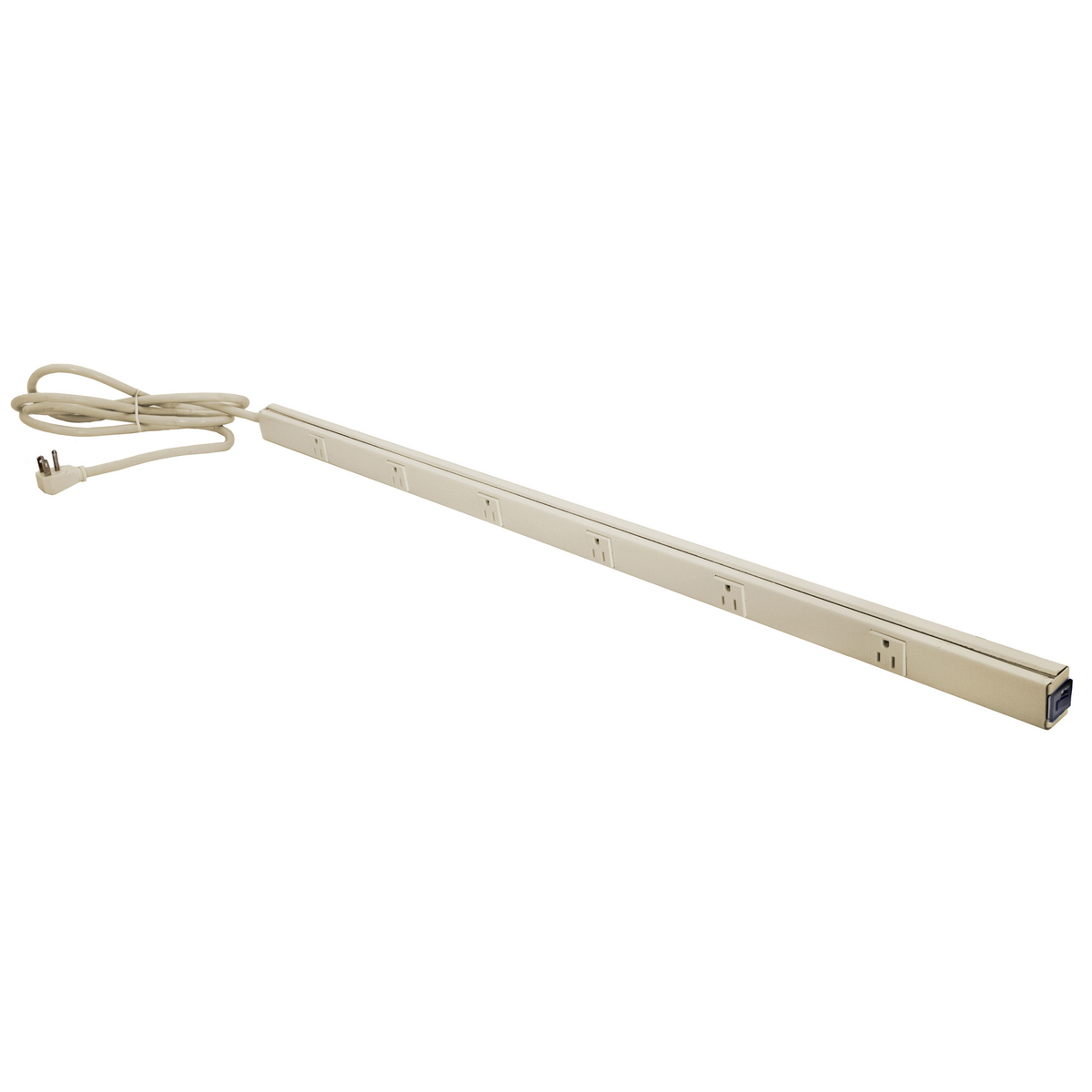

Hubbell Premise Wiring PlugTrak® HBL20C215IV Fully Insulated Pre-Wired Portable Standard Metallic Raceway, 60.6 in L x 1.3 in W
Metallic Raceways
346254
MFG #: HBL20C215IV
Hubbell Wiring Device-Kellems
172.57000
/ ea
- Amperage Rating: 15A
- Application: Portable
- ARRA Compliant: C
- Buy American Compliant: C
- Cable Size: 6'
- Catalog Number: HBL20C215IV
- Color: Ivory
- Control: None
- Country of Origin: US
- Currency: USD
- Environmental Conditions: Indoor Only
- EU RoHS Indicator: C
- Frequency Rating: 60 Hz
- Fuse Rating: None
- Gross Weight Per Pack: 3.5000 lb
- Gross Weight per Pack Metric: 1.13
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536698000
- Height [Metric]: 7.6200 cm
- Insulation: Fully Insulated
- Length [Metric]: 107.9500 cm
- Mounting: Mounting holes
- Mounting Type: Hole
- Number of Outlets: 6
- Outlet Configuration: 1-Circuit
- Outlet Rating: 15 A, NEMA 5-15R/5-20R
- Outlet Type: Single
- Phase: Single
- Receptacle: Included
- Standard: CSA Standard C22.2 no. 62;E253976 /E253830 /E253833;UL Standard UL 5
- Standards: ARRA CompliantBuy American Act CompliantUL 5UL 498 File No. E253976/E253830/E253833CSA C22.2 No. 63 File No. LR87514NEC Article 381TIA/EIA-569BNEMA 1
- Type: Fully Insulated Pre-Wired Portable Standard
- UNSPSC: 39121031
- UPC 11: 78358521449
- UPC 12: 783585214498
- Voltage Rating: 125 VAC
- Width [Metric]: 10.1600 cm
- Stock Status: NONSTOCK
- Brand: Hubbell Wiring Device-Kellems
- Manufacturer: Hubbell
- Height: 3.00 in
- Length: 42.50 in
- Material: Steel
- Width: 4.00 in
PREMISE WIRING PlugTrak® Metallic Raceway, Fully Insulated Pre-Wired Portable Standard, 60.6 in Length, 1.3 in Width, 0.8 in Height, 125 VAC, 6 Outlets, Single Outlet, Outlet Configuration: 1-Circuit, 15 A, NEMA 5-15R/5-20R Outlet, Hole Mount, Steel, Ivory
- Catalog URL - PREMISE_WIRING_HBL20C215GY_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - WIRING_PD2151_INSTALLINST.pdf(Install Instructions 1 URL)
- Line Drawing URL - WDK_HBL20C215_DRAWING_PDF.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_06IK3F85ELNUS2XZ.pdf(Spec Sheet URL)
- Spec Sheet URL - viewcatalog.aspx?Search=HBL20C215IV(Spec Sheet URL)
- Tech Drawing URL - IDW_DOCUMENT_1487176332785.pdf(Tech Drawing URL)
- Applications
- Features
| Portable |
| Standard Product |
| Multiple spacing configurations |
| Gray or ivory scratch resistant finish |
| Insulation displacement wiring provides superior wire retention |
| Mates with HBL2000 series metal raceway |
| Portable wiring |
| 12 AWG stranded copper wire |
| Thermoplastic receptacle face |
| 6 ft L cord |
| cold rolled steel material |
