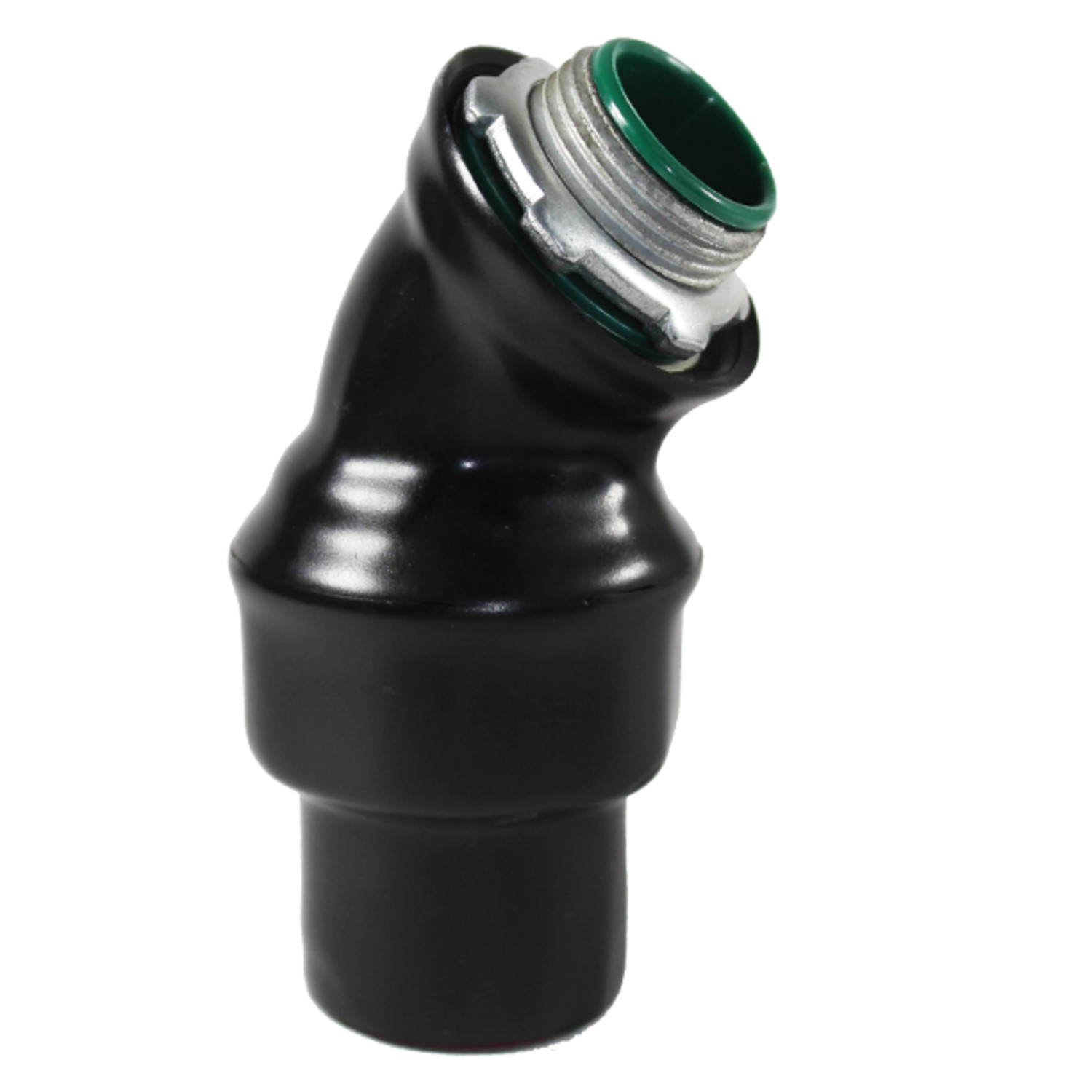

CAL PV0700LT7545 LT7545 3/4" 45" LT
Liquidtight Conduit Elbows
839496
MFG #: PV0700LT7545
Calbond
126.01000
/ ea
- Application: USED WITH LIQUIDTIGHT CONDUIT
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: PV0700LT7545
- Color: Black
- Connection: Threaded
- Country of Origin: CN
- Currency: USD
- Dimensions: 1.74 in Dia x 2.88 in L
- EU RoHS Indicator: X
- Gross Weight Per Pack: 0.3000 lb
- Gross Weight per Pack Metric: 0.14
- Gross Weight UOM Metric: kg
- Height: 1.74 in
- Height [Metric]: 4.4196 cm
- Length: 2.38 in
- Length [Metric]: 6.0452 cm
- Size: 3/4"
- Standard: CSA C22.2 NO.18
- Standards: ARRA CompliantRoHS CompliantUL 514BCSA C22.2 No. 18
- Suitable For Use With: Rigid Conduits
- Temperature Rating: 200
- Type: LIQUID TIGHT CONNECTORS
- UNSPSC: 39121311
- UPC 11: 84765607201
- UPC 12: 847656072018
- Width: 1.74 in
- Width [Metric]: 4.4196 cm
- Stock Status: NONSTOCK
- Brand: Calbond
- Manufacturer: Calpipe Industries
- Angle: 45 °
- Finish: Pvc Coated
- Material: PVC
- Trade Size: 3/4 in
PVC Coated Galvanized Rigid LIQUID TIGHT CONNECTOR 3/4"" Trade Size 45
- Catalog URL - Calbond_PA0500C17SA_Catalog.pdf(Catalog URL)
- http://calpipe.com/(Seller Home Page URL)
- http://www.calpipe.com/(Seller Home Page URL)
- Line Drawing URL - 11486_4C80U6GL7MB9ZWVP.png(Line Drawing URL)
- Line Drawing URL - 14264_HA9V1U860O2ZGFQ5.png(Line Drawing URL)
- Spec Sheet URL - 11486_FPRQZ4B50Y89XA3L.pdf(Spec Sheet URL)
- Spec Sheet URL - 12374_6ZGAO048DVPKE2YJ.pdf(Spec Sheet URL)
- Spec Sheet URL - 45Deg%20Liquidtight_Cut%20Sheet.pdf(Spec Sheet URL)
- Warranty URL - Terms(Warranty URL)
- Applications
- Features
| USED WITH LIQUIDTIGHT CONDUIT |
| Exterior PVC coating thickness is a minimum 0.04 in |
| Interior urethane coating thickness is a minimum 0.002 in |
| The length of the sleeve extension's shall be at least equivalent to the nominal conduit size for sizes 1/2 to 2 in |
| For sizes 2-1/2 to 4 in the length of the sleeve extension's shall be at least 2 in |
