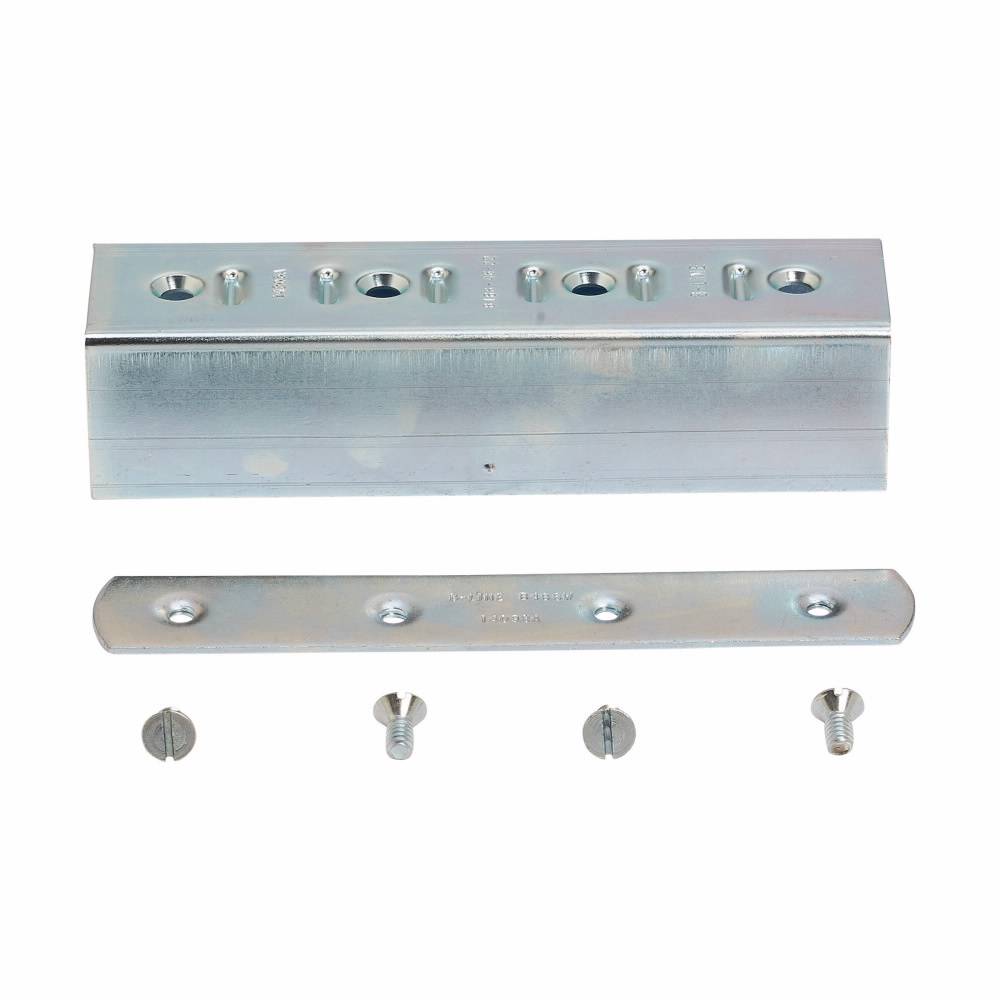

B-Line B166-46-22ZN 4-Hole Splice Clevis, 7-1/4 in L x 16 ga THK, For Use With B22/B24/B26 Channel, Steel
Channel Splice Clevises
218876
MFG #: B166-46-22ZN
B-Line
4618.24000
/ ea
- Alternate Catalog Number: 78101157033
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: B166-46-22ZN
- Country of Origin: US
- Currency: USD
- EU RoHS Indicator: C
- Finish: Zinc Plated
- Gross Weight Per Pack: 0.7900 lb
- Gross Weight per Pack Metric: 0.36
- Gross Weight UOM Metric: kg
- Height: 1.62
- Height [Metric]: 4.1148
- Returnable: N
- Size: 7-1/4 In Length X 1-11/16 In Width X 1-5/8 In Height
- Standard: UL
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed
- Sub Brand: B-Line series
- Type: 4-Hole
- UNSPSC: 39121311
- UPC 11: 78101157033
- UPC 12: 781011570330
- Width: 1.68 in
- Stock Status: NONSTOCK
- Brand: B-Line
- Manufacturer: Eaton
- Length: 7.24 in
- Material: Steel
- Suitable For Use With: B22, B24, B26 Channel
B-Line strut systems, also known as bolted framing, provides an economical solution for virtually any commercial, industrial, petrochem, mining, infrastructure or data center support application. The system includes a full line of solid, slotted hole (SH) and long slotted hole (S) channel, and other hole patterns, as well as full line of fittings, clamps and beam supports. The system is available in wide variety of materials and finishes including pre-galvanized, hot dip galvanized, stainless steel, Dura Green™ paint and other paints.
- Brochure URL - 11024_ID-SPE-v1-ea-strutjoiners.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_855cd6dca5b0b392955512f18ae55ef1bdd941dddcb7282bb5cbba805a907819.pdf(Catalog URL)
- http://www.bline.com(Seller Home Page URL)
- Spec Sheet URL - 11024_24WGIO9TK6CZY38D.pdf(Spec Sheet URL)
- Warranty 1 URL - IDW_DOCUMENT_1537666263090.pdf(Warranty 1 URL)
- Warranty URL - 11024_ID-WAR-v1-B-Line_Legal_Statement_and_Terms_and_Conditions.pdf(Warranty URL)
- Warranty URL - b-line-terms-and-conditions.html(Warranty URL)
- Applications
- Features
| Generation - Renewable Energy - Alternative EnergyCommercial / Institutional Buildings / Structures - Commercial/Inst Bldg Strctures - AftermarketWater and Wastewater Systems - Water and Wastewater Systems - OtherInd Facilities & Factories - Industrial Facilities/Factories - OtherInd Facilities & Factories - Facility - OtherDatacenters - Datacenters - OtherOther IT and Datacom - Other InfrastructuresGeneration - Conventional Energy - Conventional EnergyUtilityResidential Bldgs & Facilities - Residential Bldgs & Facilities - OtherDatacenters - IT Space: Enterprise / Server Room / Network ClosetCommercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other |
| Includes (4) 1/4 in-20 TPI Flat Head Machine Screw, (1) B466W Tapped Plate, Weight 79 Lb per 100 |
