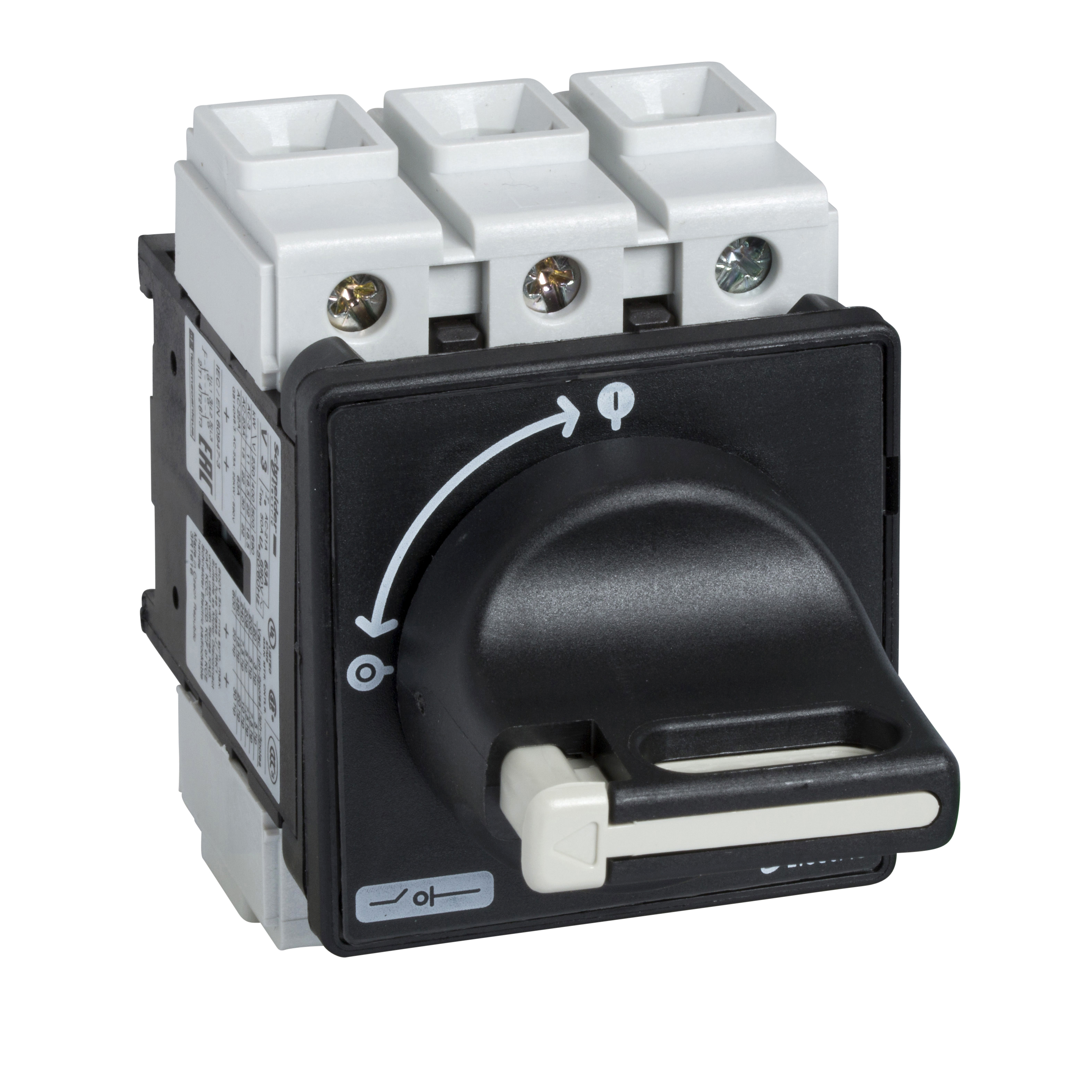

Square D™ TeSys™ Vario™ VBD2 AC/DC High Performance Main Switch Disconnector With 1-Hole Mounting, 690 VAC, 40 A, 3NO Contact, 3 Poles
Door Mount Switches
1125086
MFG #: VBD2
Square D™
252.00000
/ ea
- Alternate Catalog Number: VBD2
- Application: Preventive maintenance
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: VBD2
- Contact Configuration: 3 NO
- Country of Origin: CZ
- Currency: USD
- EU RoHS Indicator: Y
- Gross Volume Per Pack: 49.91
- Gross Volume per Pack Metric: 817.88
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 0.4900 lb
- Gross Weight per Pack Metric: 221.00
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8536509040
- Height: 3.12 in
- Height [Metric]: 8.0000 cm
- Item Group: 21730
- Length: 4.68 in
- Length [Metric]: 12.0000 cm
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=643344&lang=en-us
- Returnable: N
- Size: 60 x 60 mm
- Type: Switch disconnector
- UNSPSC: 39122233
- UPC 11: 78590147144
- UPC 12: 785901471448
- Warranty Description: Contractual Warranty:18 months
- Width: 3.32 in
- Width [Metric]: 8.5000 cm
- Stock Status: NONSTOCK
- Brand: Square D™
- Manufacturer: Schneider Electric
- Number Of Poles: 3
Square D™ TeSys™ Vario™ Main Switch Disconnector, AC/DC High Performance, 690 VAC, 40 A, 3 ph, 50/60 Hz Frequency, 3 Pole, 10 kA Short Circuit, 3NO Contact Form, Padlockable Rotary Handle Actuator, NEMA 1/12/IP20/IP65 Enclosure, Door Mounting, Screw Terminal, -20 to 50 deg C, 2.36 in W x 2.91 in H Dimensions, Black/Gray
- Brochure URL - 7cdc63d963c7d4f87d5f49e46a9df27666fe340a.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - files?p_File_Name=164600501A50-05.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_8RV9HYLF1JZMKQSI.pdf(Spec Sheet URL)
- Applications
- Features
| Preventive maintenance |
| Vario™ rotary manual motor control switches from 12 to 175 A |
| Suitable for on-load making and breaking of resistive or mixed resistive and inductive circuits |
| Can be used for motors in utilization categories AC-3 and DC-3 |
| Fixed on the front panel or DIN rail mount |
| Local motor control |
