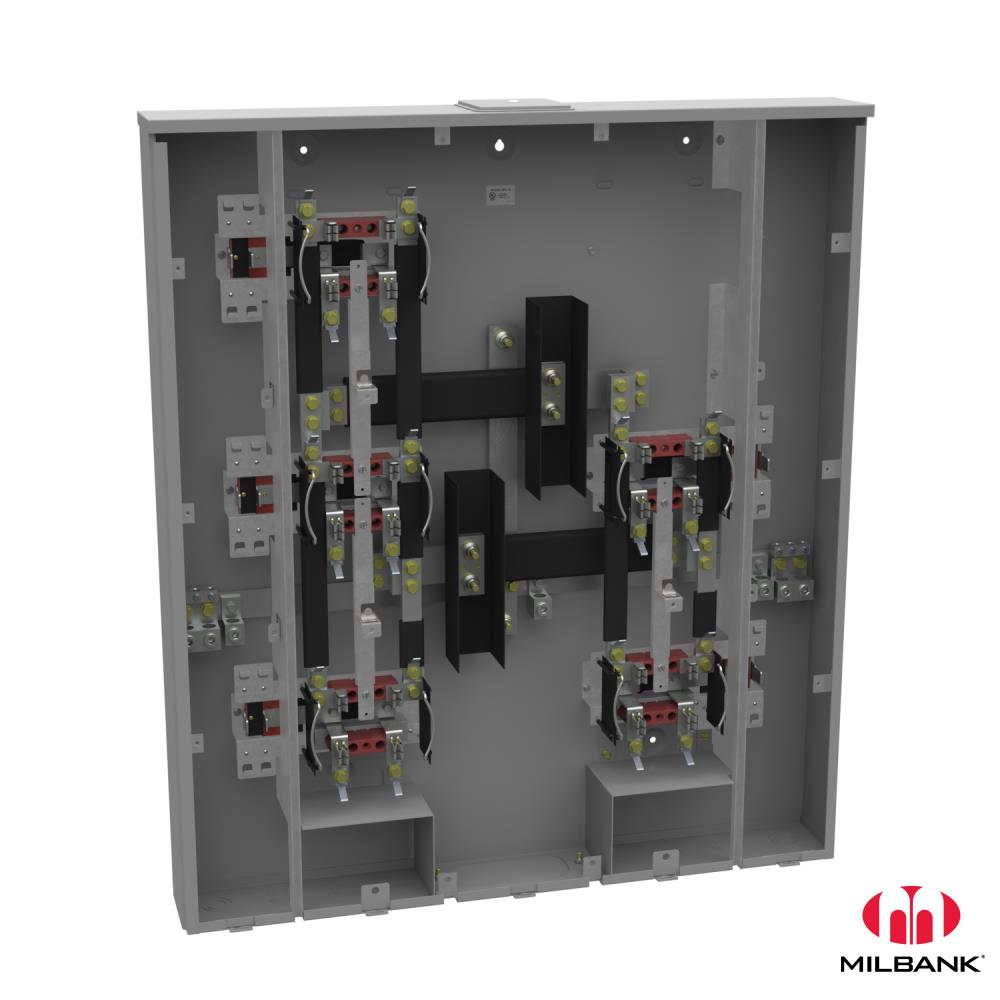

Milbank® U2865-X-KK-PED Ringless Multi-Position Meter Socket, 240 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
Meter Sockets - Multi Position
29312
MFG #: U2865-X-KK-PED
Milbank®
2334.62000
/ ea
- Application: Meter Socket With Main
- ARRA Compliant: C
- Buy American Compliant: C
- Bypass Type: Horn bypass
- Cable Entry: Overhead or Underground
- Catalog Number: U2865-X-KK-PED
- Country of Origin: USA
- Currency: USD
- Cutout Size: Breaker Provision
- Dimensions: 41 in H x 36 in W x 4-7/8 in D
- Enclosure: G90 Galvanized Steel with Powder Coat Finish
- Equipment Ground: Ground Lug
- EU RoHS Indicator: C
- Feed Type: Overhead/Underground
- Frequency Rating: 60 Hz
- Gross Weight Per Pack: 143.0000 lb
- Gross Weight per Pack Metric: 64.86
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536908030
- Height: 41.00 in
- Height [Metric]: 104.1400 cm
- Hub Opening: Large Closing Plate
- Hub Size: Large
- Hub Type: Plate
- Insulation: Glass Polyester
- Jaw Quantity: 4 Terminal
- Length: 4.84 in
- Length [Metric]: 12.3038 cm
- Mounting: SURFACE MOUNT
- Mounting Type: Surface
- Number Of Cutouts: 0
- Number of Jaws: 4
- Number of Meter Positions: 5 Positions
- Size: 4.844L x 36W x 41H
- Standard: UL Listed;Type 3R
- Standards: RoHS Complaint, UL Listed
- Terminal: 3/8 Inch Stud
- Terminal Type: Stud
- Type: Ringless Meter Socket
- UNSPSC: 39121102
- UPC 11: 78457213638
- UPC 12: 78457213638
- Width: 36.00 in
- Width [Metric]: 91.4400 cm
- Stock Status: NONSTOCK
- Brand: Milbank®
- Manufacturer: Milbank Manufacturing
- Amperage Rating: 200 Continuous Ampere
- Enclosure Type: NEMA 3R
- Phase: 1
- Voltage Rating: 240 VAC
Milbank® Multi-Position Meter Socket, Ringless, 240 VAC, 200 A, 1 Phase, 60 Hz, Overhead/Underground Feed, 4 Jaws, Plate, Large Hub, Stud Terminal, Surface Mount, NEMA 3R, 41 in H x 36 in W x 4-7/8 in D
- https://milbankworks.com/(Seller Home Page URL)
- Install Instructions 1 URL - Important_Notice.pdf(Install Instructions 1 URL)
- Safety Data Sheet URL - milbank_warranty.pdf(Safety Data Sheet URL)
- Spec Sheet URL - 11028_ID-SPE-v1-784572136380_SS.pdf(Spec Sheet URL)
- Warranty URL - 11028_64327H0AWL8U59BY.pdf(Warranty URL)
- Warranty URL - Milbank_Warranty.pdf(Warranty URL)
- Applications
- Features
| Meter Socket With Main |
| G90 galvanized steel with powder coat enclosure finish |
| 3/8 in stud line side and single mechanical load side |
| 5 positions |
| Horn Bypass |
| 3/8 in - 16 Stud |
| 10 KA short circuit current rating |
| Closing plate hub |
