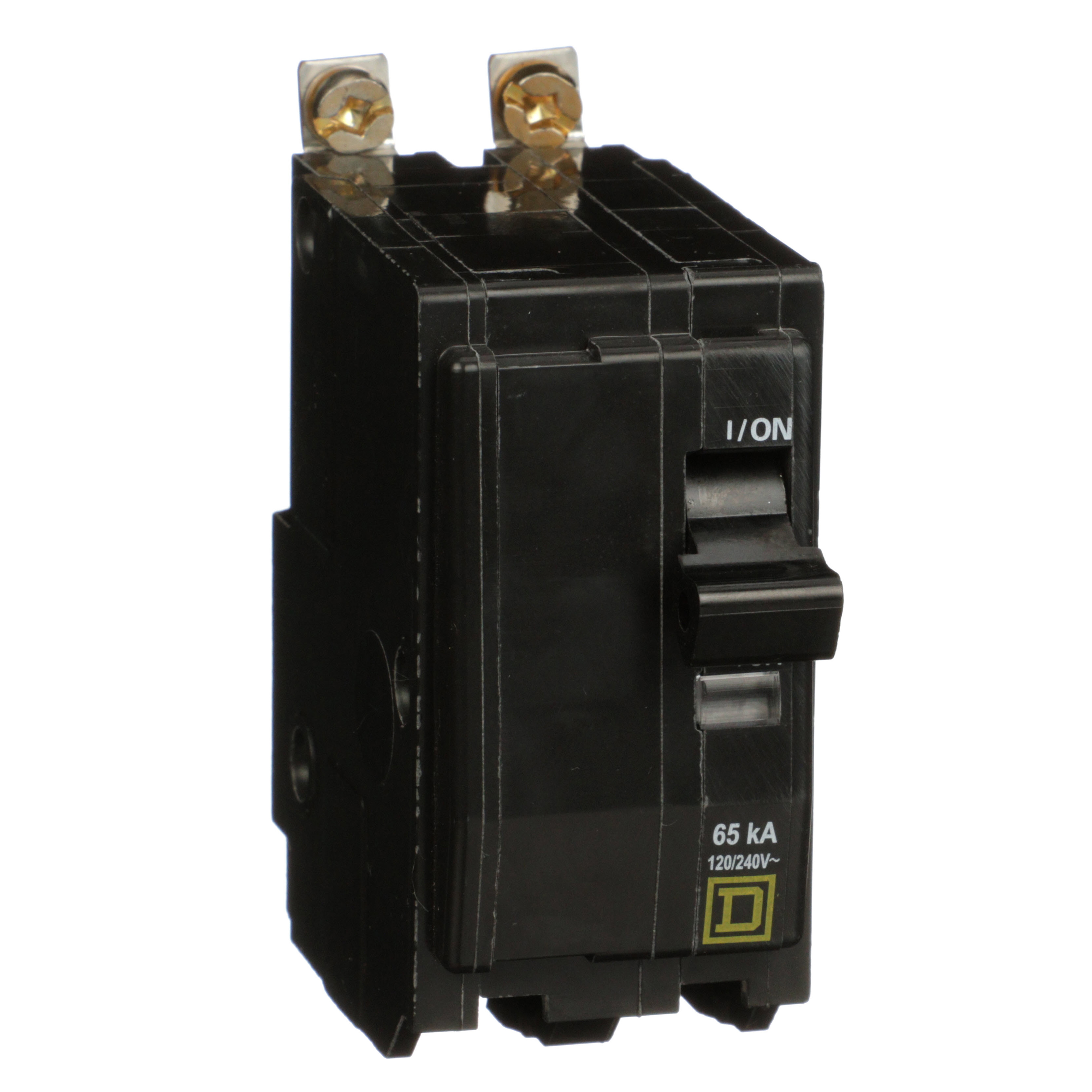

Square D™ QHB215 Type QHB Miniature Circuit Breaker, 120/240 VAC, 15 A, 65 kA at 120/240 VAC Interrupt, 2 Poles
Miniature Circuit Breakers
278211
MFG #: QHB215
Square D™
335.66000
/ ea
- Alternate Catalog Number: QHB215
- Application: HACR rated
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: QHB215
- Connection: PRESSURE PLATE #14 TO #8 AWG(AL/CU)
- Connection Type: Pressure Plate
- Country of Origin: IE
- Currency: USD
- Dimensions: 3 in H x 1.5 in W x 2.91 in D
- Enclosure: QO LOADCENTER, NQ, NQO, AND NQOD
- Enclosure Type: NEMA AB1
- EU RoHS Indicator: Y
- Frequency Rating: 50/60 Hz
- Gross Weight Per Pack: 2.7669 lb
- Gross Weight per Pack Metric: 276.69
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8536200040
- Height: 4.0640 in
- Height [Metric]: 4.0640 cm
- Item Group: 00015
- Length: 8.8900 in
- Length [Metric]: 8.8900 cm
- Material: Fiberglass Filled Thermoset
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398237&lang=en-us
- Mounting Type: Bolt-On
- Operating Temperature: 40 °C
- Phase: 1
- Returnable: Y
- Standard: UL LISTED - CSA CERTIFIED
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantCSA 22.2 No. 5Federal Specification W-C-375B/GENHACR RatedNOM-ANCE CertifiedUL 489 File No. E84967PROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov
- Sub Brand: QO
- Substitute Product Catalog Number: QO142L225PG
- Temperature Rating: 104 °F
- Type: Type QHB
- UNSPSC: 39121603
- UPC 11: 78590134162
- UPC 12: 785901341628
- Warranty Description: Contractual Warranty:18 months
- Width: 8.8900 in
- Width [Metric]: 8.8900 cm
- Wire Size: 14 to 8 AWG Al/Cu
- Stock Status: NONSTOCK
- Brand: Square D™
- Manufacturer: Schneider Electric
- Amperage Rating: 15 A
- Interrupt Rating: 65 kA at 120/240 VAC
- Trip Type: Thermal Magnetic
- Voltage Rating: 120/240 VAC
- Number Of Poles: 2
Square D QHB215 MINIATURE CIRCUIT BREAKER 120/240V 15A,120/240 Vac,15A,2P,65kA,Calibrated for use at 40 degrees C. See Data Bulletin 0100DB0101 for re-rating information.,Fiberglass filled thermoset molding material.,HACR rated,Miniature Circuit Breaker,Pressure Plate #14 to #8 AWG(Al/Cu),QO,QO loadcenter, NQ, NQO, and NQOD,Standard Bolt-On,Thermal Magnetic Breaker,UL Listed - CSA Certified
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8151111360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_SF18VI3Y75ANRTGZ.pdf(Brochure URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Catalog URL - IDW_DOCUMENT_c5b326735eb8d1d236aee0ae89f871f8971a71ae7f56a2c5995b35a605d67649.pdf(Catalog URL)
- Spec Sheet URL - 11003_JHFQELTOW5M6AGZD.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_AV6NK7850O1P2SET.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_DHK6PX8QOTA72EN9.pdf(Tech Drawing URL)
- User Manual URL(User Manual URL)
- User Manual URL - 11003_4OPHZUT6J8L1YG7E.pdf(User Manual URL)
- Applications
- Features
| HACR rated |
| STANDARD BOLT-ON |
| Designed for superior safety, quality and reliability |
| Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners |
| First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection |
| Saves space compact 3/4 in W design for small system footprint |
| Faster installation fewer connections |
| Frees gutter space no pigtails with the innovative plug-on neutral design |
| Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button |
