80/20 14012 CENTRAL CONNECTOR, STEEL, SLOT10 VERTICAL TO BARREL
Bolted Connectors
1342774
MFG #: 14012
80/20
6.71000
/ ea
- Catalog Number: 14012
- Gross Weight Per Pack: 0.1300 lb
- Line Drawing Dimensions: A=45.50mm B=32.00mm C=9.60mm D=16.70mm E=N/A F=9.60mm G=18.00mm H=28.00mm J=19.50mm K=5.40mm L=M12 x 12
- Stock Status: NONSTOCK
- Brand: 80/20
- Manufacturer: 80/20 Inc.
- Material: Steel
- Orientation: Vertical
- Series: 45 Series

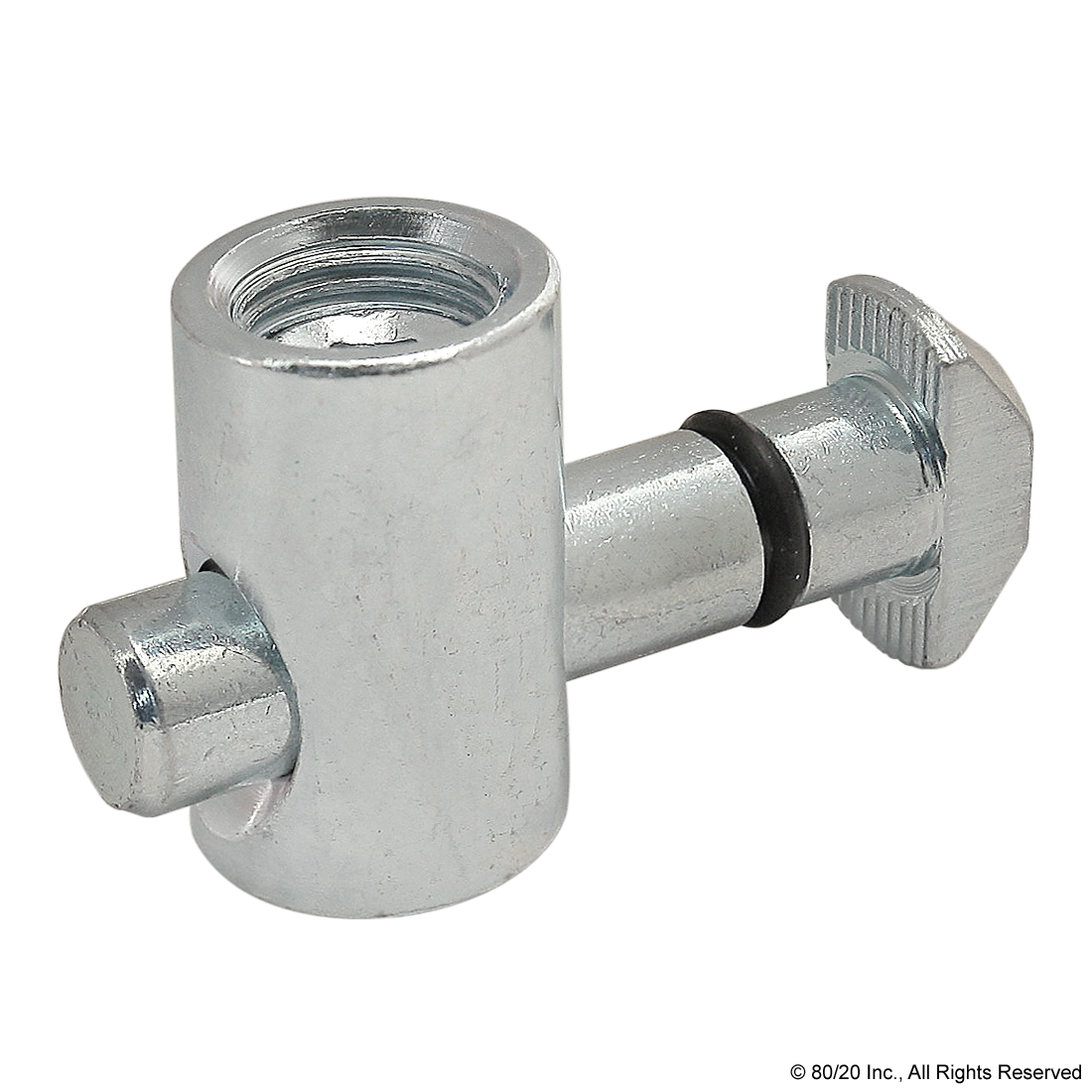

The central connector is an assembly comprised of a cam, conical set screw, spring, and T-stud. It is a strong internal fastening method, offering a long-lasting connection. The central connector can be used when profile ends are captivated and it provides infinite positioning along the mating profile’s T-slot, allowing a large degree of adjustability. The central connector is a 90 degree, hidden, aesthetic connection. This connection method requires a central connector profile milling machining service.
