80/20
80/20 25-3363 ANCHOR FASTENER W/ M5 BOLT & DROP IN T-NUT
Custom_Product_Images_Illustration
80/20

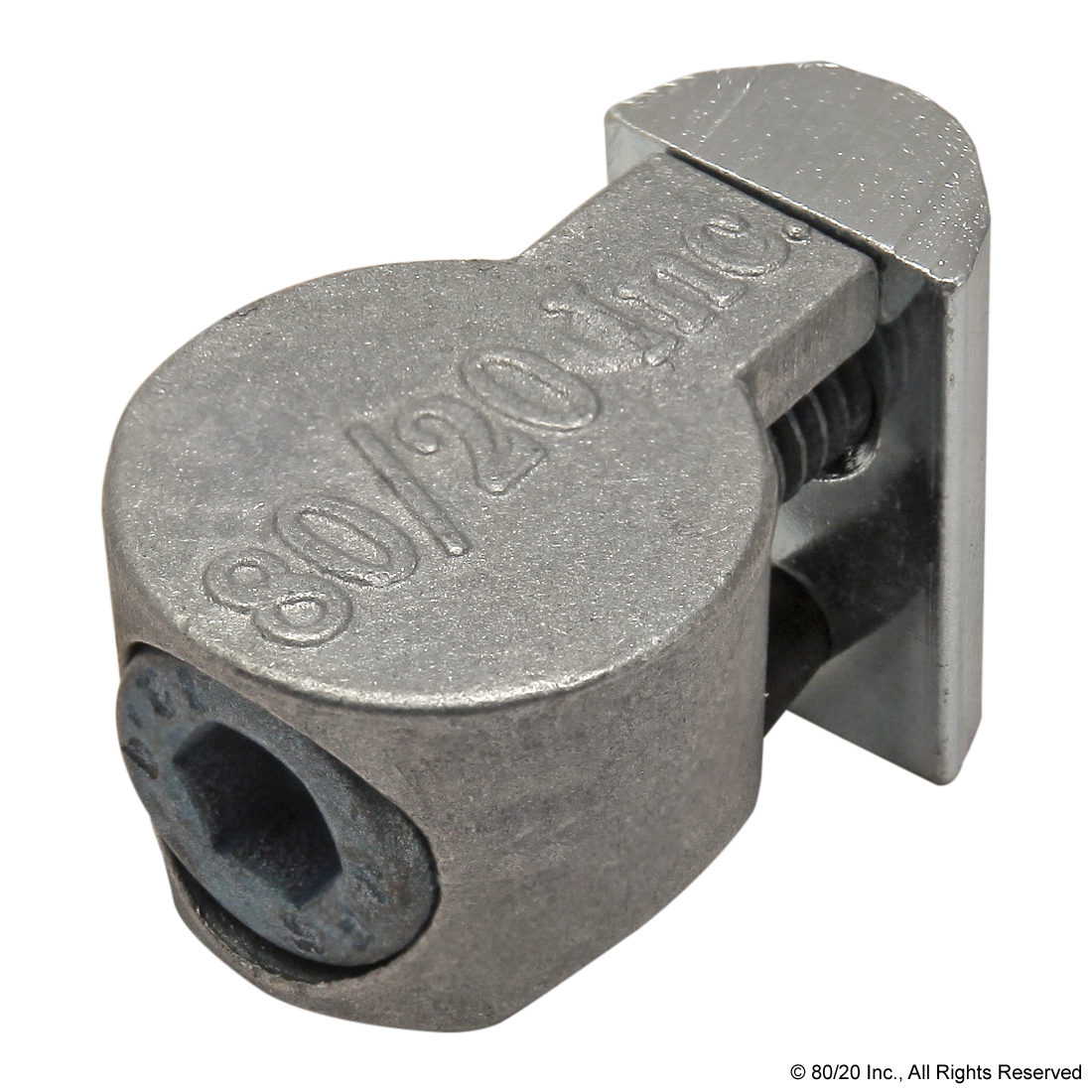

80/20 25-3363 ANCHOR FASTENER W/ M5 BOLT & DROP IN T-NUT
SKU1369888
MFGR #25-3363
Your Cost: $6.11/ea
The standard anchor fastener assembly is comprised of a socket head cap screw, cam, and T-nut. It is one of the strongest internal fastening methods, offering a long-lasting connection. The anchor fastener provides infinite positioning along the mating profile’s T-slot, allowing a large degree of adjustability. The anchor fastener provides 90 degree, flush, vibration resistant connections, especially convenient where space restrictions apply. This connection method requires a counterbore machining service on the mounting profile. Additional Information: Cams are available separately (without the socket head cap screw and T-nut) for instances where you want to create your own custom assembly.
The standard anchor fastener assembly is comprised of a socket head cap screw, cam, and T-nut. It is one of the strongest internal fastening methods, offering a long-lasting connection. The anchor fastener provides infinite positioning along the mating profile’s T-slot, allowing a large degree of adjustability. The anchor fastener provides 90 degree, flush, vibration resistant connections, especially convenient where space restrictions apply. This connection method requires a counterbore machining service on the mounting profile. Additional Information: Cams are available separately (without the socket head cap screw and T-nut) for instances where you want to create your own custom assembly.
Catalog Number 25-3363 Line Drawing Dimensions A=18.54mm B=6.22mm C=10.03mm D=5.08mm E=14.27mm F=15.74mm G=10.31mm H=M5 X 18mm SHCS Stock Status NONSTOCK Brand 80/20 Manufacturer 80/20 Inc. Material Zinc Series 25 Series
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
Catalog Number | 25-3363 |
Line Drawing Dimensions | A=18.54mm B=6.22mm C=10.03mm D=5.08mm E=14.27mm F=15.74mm G=10.31mm H=M5 X 18mm SHCS |
Stock Status | NONSTOCK |
Brand | 80/20 |
Manufacturer | 80/20 Inc. |
Material | Zinc |
Series | 25 Series |
