9 items
-
110.00000 / ea

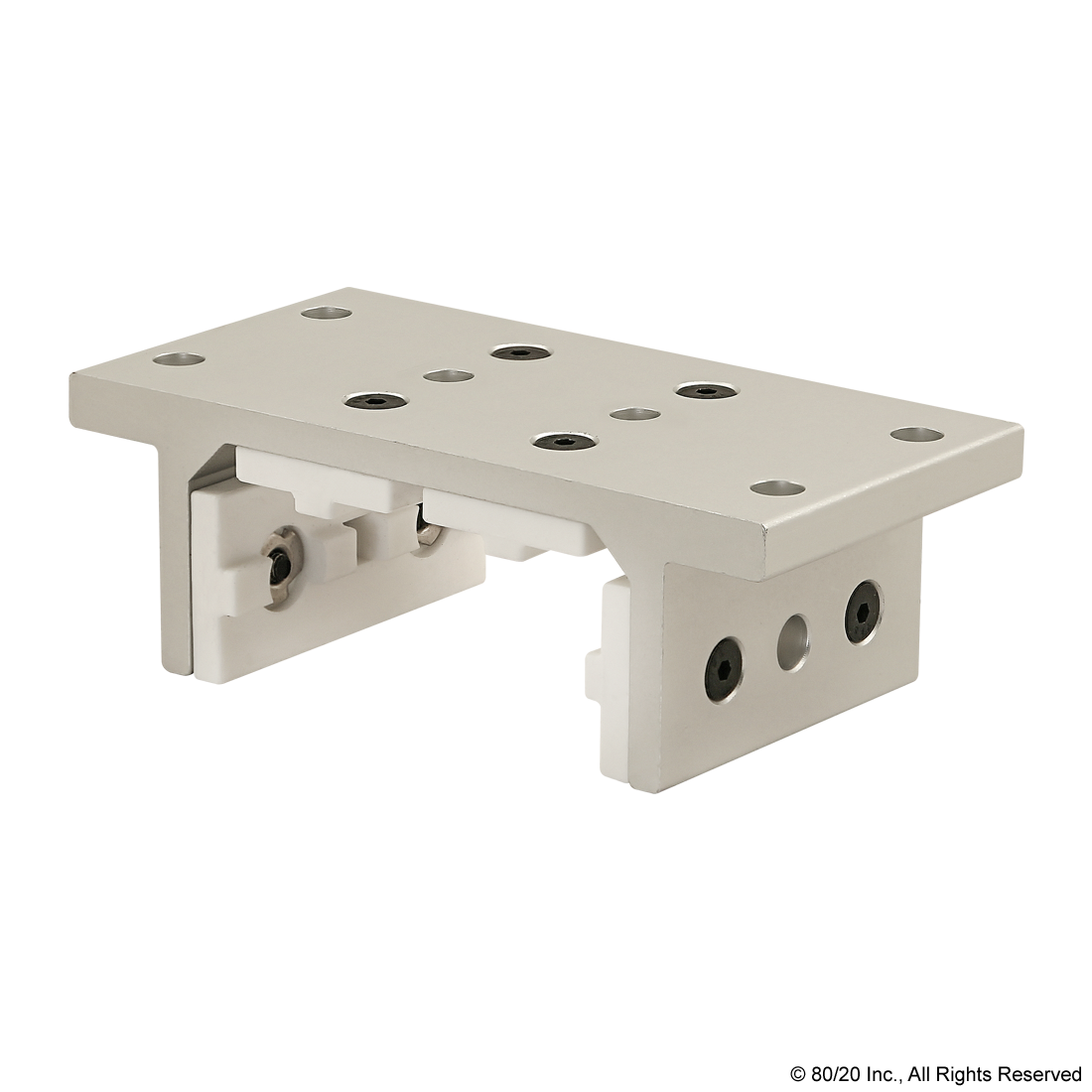

- Catalog Number: 6533
- Grade: 6105-T5
- Line Drawing Dimensions: A=1.875" B=.375" C=1.500" D=.125" E=4.005" F=.250" G=3.505" H=.493" J=.748" K=.250" L=5.500" M=2.812" N=1.406" P=.656" Q=2.000" R=.375" S=1.500" T=10-32 FHSCS U=.343" V=.328" W=4.750" X=1.500" AA=.625"
-
135.76000 / ea

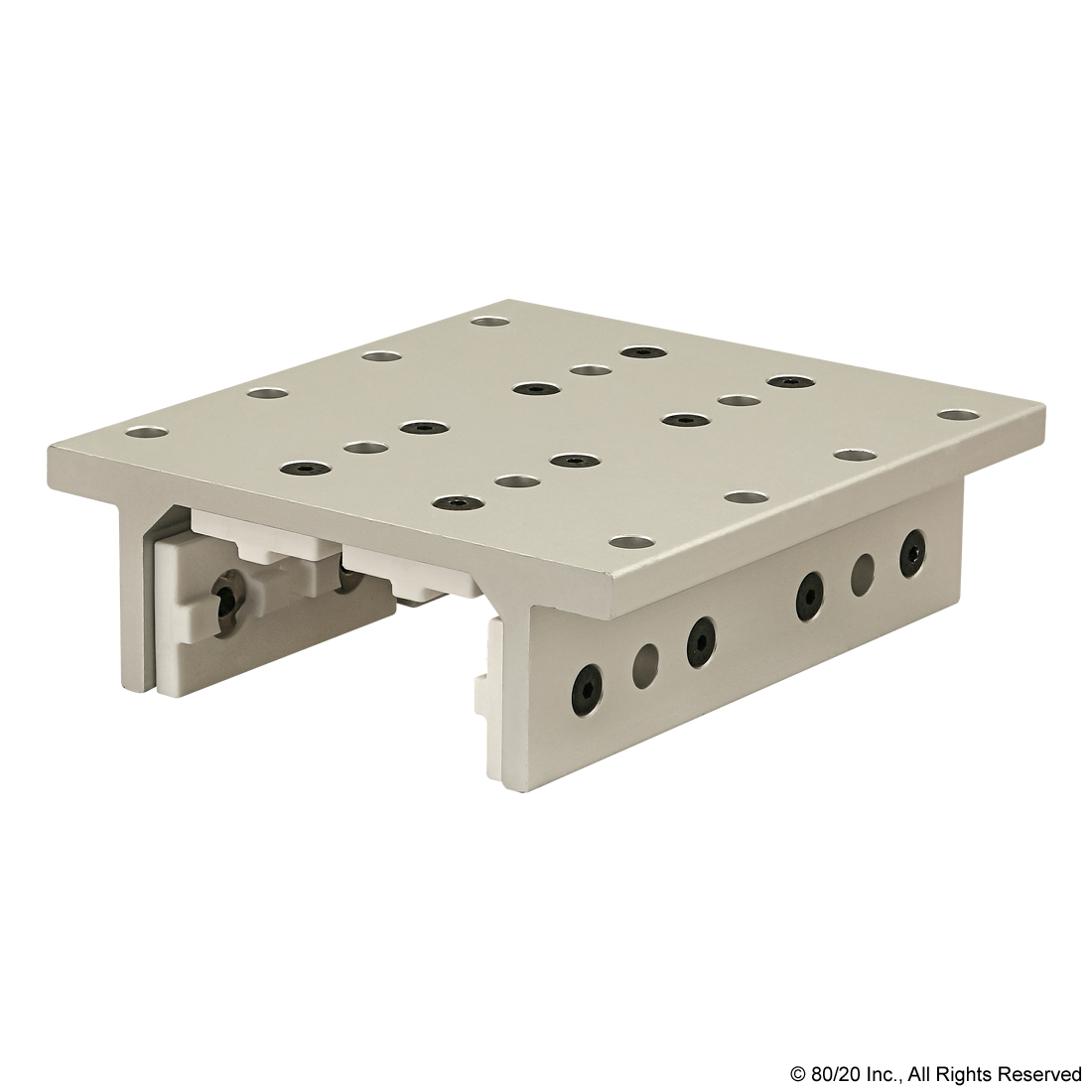

- Catalog Number: 6534
- Grade: 6105-T5
- Line Drawing Dimensions: A=1.875" B=.375" C=1.500" D=.125" E=4.005" F=.250" G=3.505" H=.493" J=.748" K=.250" L=5.500" M=6.000" N=1.500" P=.750" Q=.375" R=2.000" S=1.500" T=1.500" U=10-32 FHSCS V=.343" W=.328" X=4.750" AA=.750" AB=.625"
-
103.29000 / ea

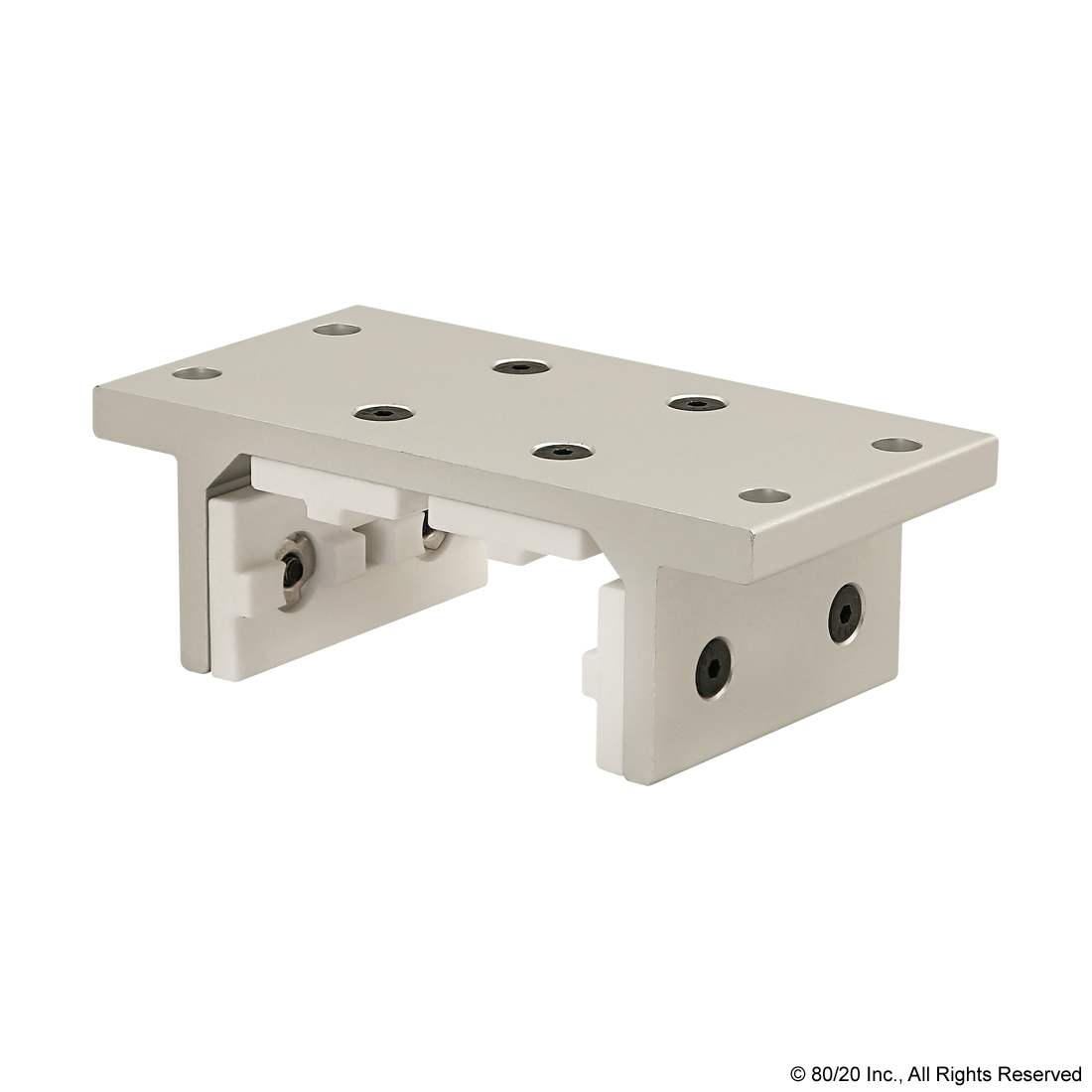

- Catalog Number: 6833
- Grade: 6105-T5
- Line Drawing Dimensions: A=1.875" B=.375" C=1.500" D=.125" E=4.005" F=.250" G=3.505" H=.493" J=.748" K=.250" L=5.500" M=2.812" N=n/a P=.656" Q=2.000" R=.375" S=1.500" T=10-32 FHSCS U=n/a V=.328" W=4.750" X=1.500" AA=.625"
-
111.33000 / ea

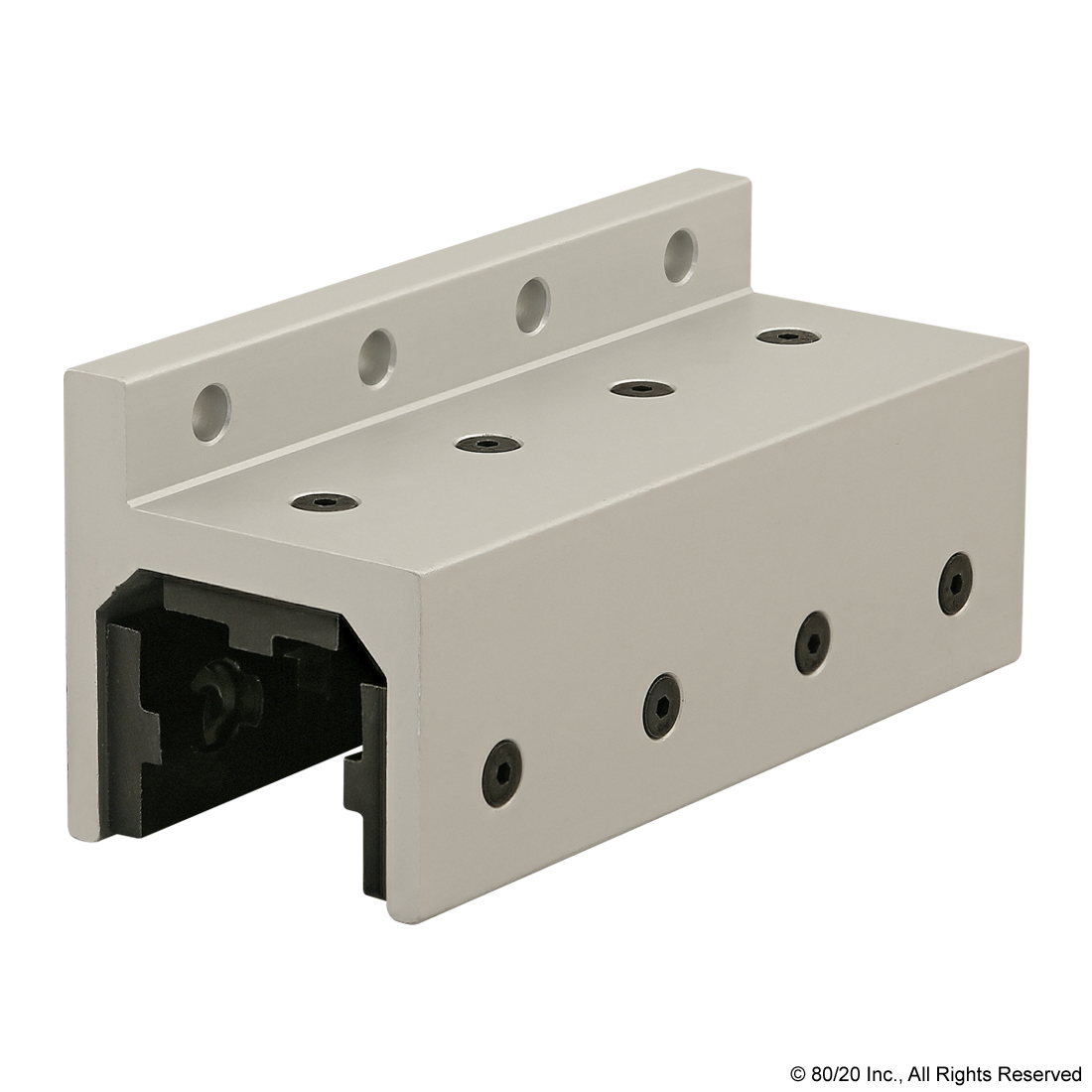

- Catalog Number: 40-6831
- Grade: 6105-T5
- Line Drawing Dimensions: A=71.83mm B=19.00mm C=8.99mm D=2.58mm E=65.13mm F=52.83mm G=12.32mm H=6.15mm J=52.83mm K=11.99mm L=160.00mm M=n/a N=20.00mm P=32.56mm Q=40.00mm R=40.00mm S=10-32 FHSCS T=n/a U=8.33mm V=40.00mm W=20.00mm X=9.53mm
-
93.52000 / ea

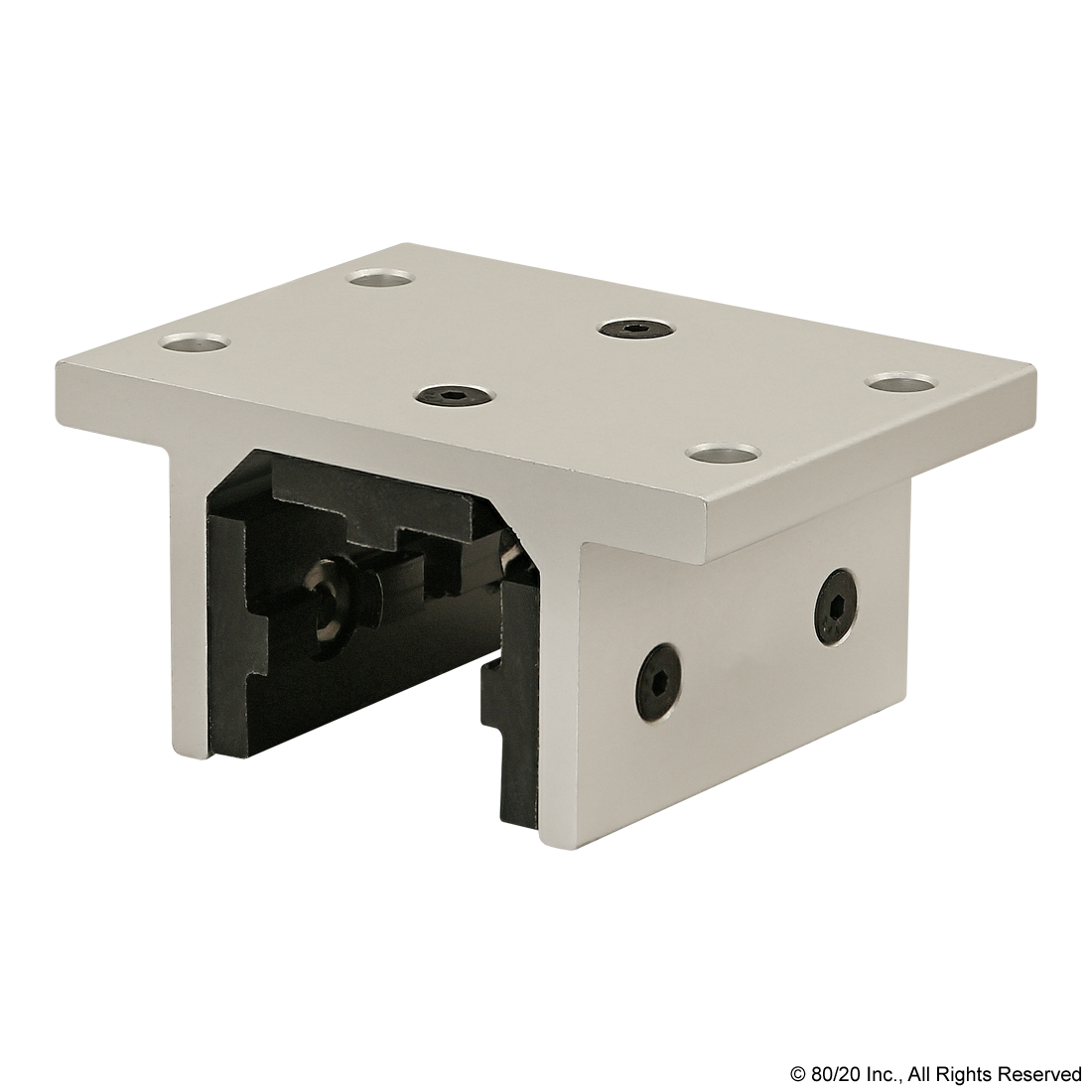

- Catalog Number: 40-6835
- Grade: 6105-T5
- Line Drawing Dimensions: A=50.00mm B=9.00mm C=41.00mm D=2.58mm E=65.12mm F=6.15mm G=52.82mm H=12.32mm J=19.00mm K=6.15mm L=103.12mm M=75.00mm N=n/a P=17.50mm Q=9.50mm R=51.56mm S=40.00mm T=10-32 FHSCS U=n/a V=8.33mm W=84.12mm X=40.00mm
-
80.03000 / ea

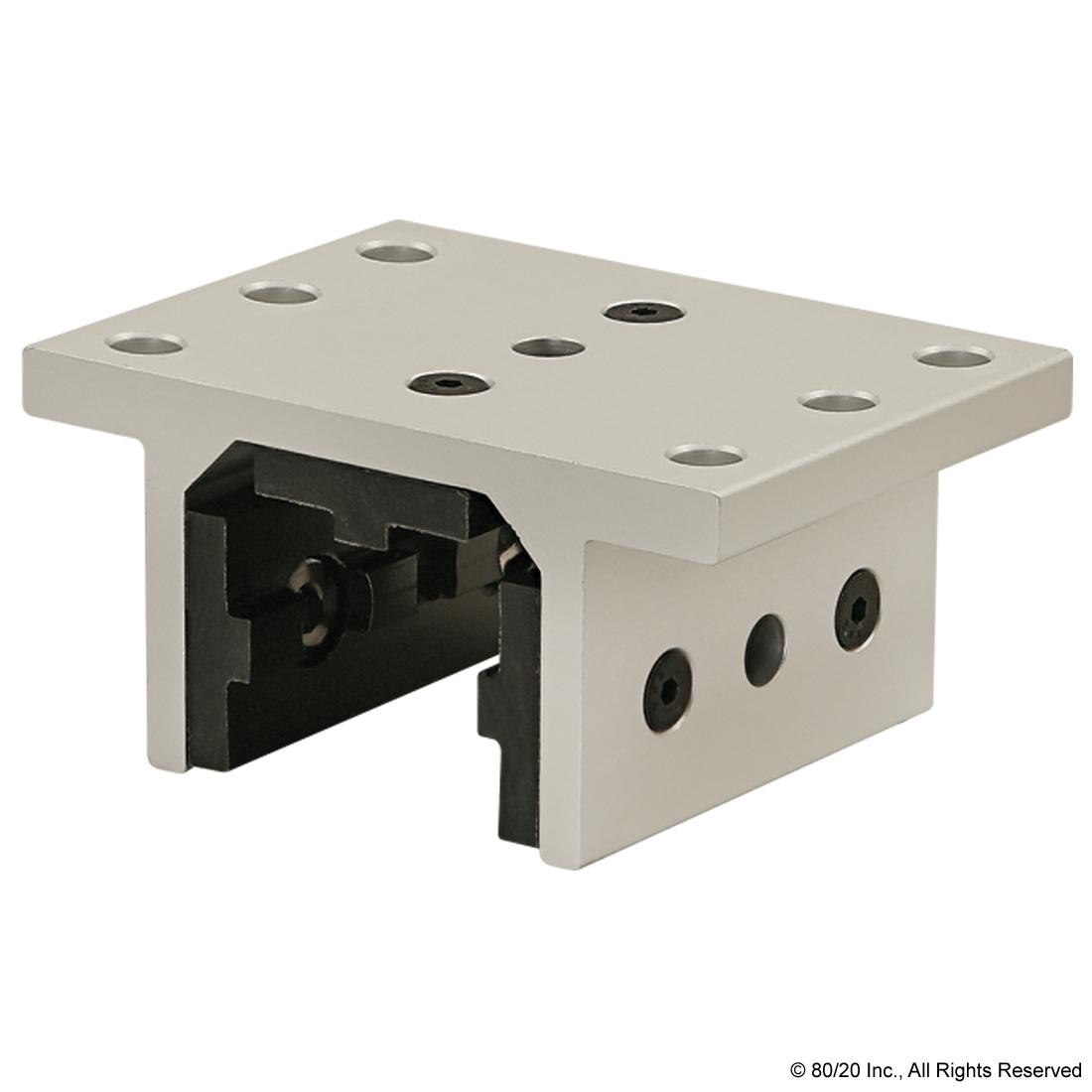

- Catalog Number: 45-6525
- Grade: 6005A-T61
- Line Drawing Dimensions: A=56.40mm B=9.50mm C=46.90nn D=2.02mm E=70.44mm F=6.40mm G=57.64mm H=12.57mm J=24.78mm K=7.10mm L=120.00mm M=80.00mm N=40.00mm P=17.50mm Q=15.00mm R=60.00mm S=45.00mm T=#10 FHSCS U=8.74mm V=8.33mm W=90.00mm X=45.00mm
-
117.97000 / ea
- Catalog Number: 6531
- Grade: 6105-T5
- Line Drawing Dimensions: A=2.750" B=.750" C=.375" D=.125" E=2.505" F=2.005" G=.493" H=.250" J=2.000" K=.500" L=6.000" M=1.500" N=.750" P=1.253" Q=1.500" R=1.500" S=10-32 FHSCS T=.344" U=.328" V=1.500" W=.656" X=.375"
-
122.66000 / ea

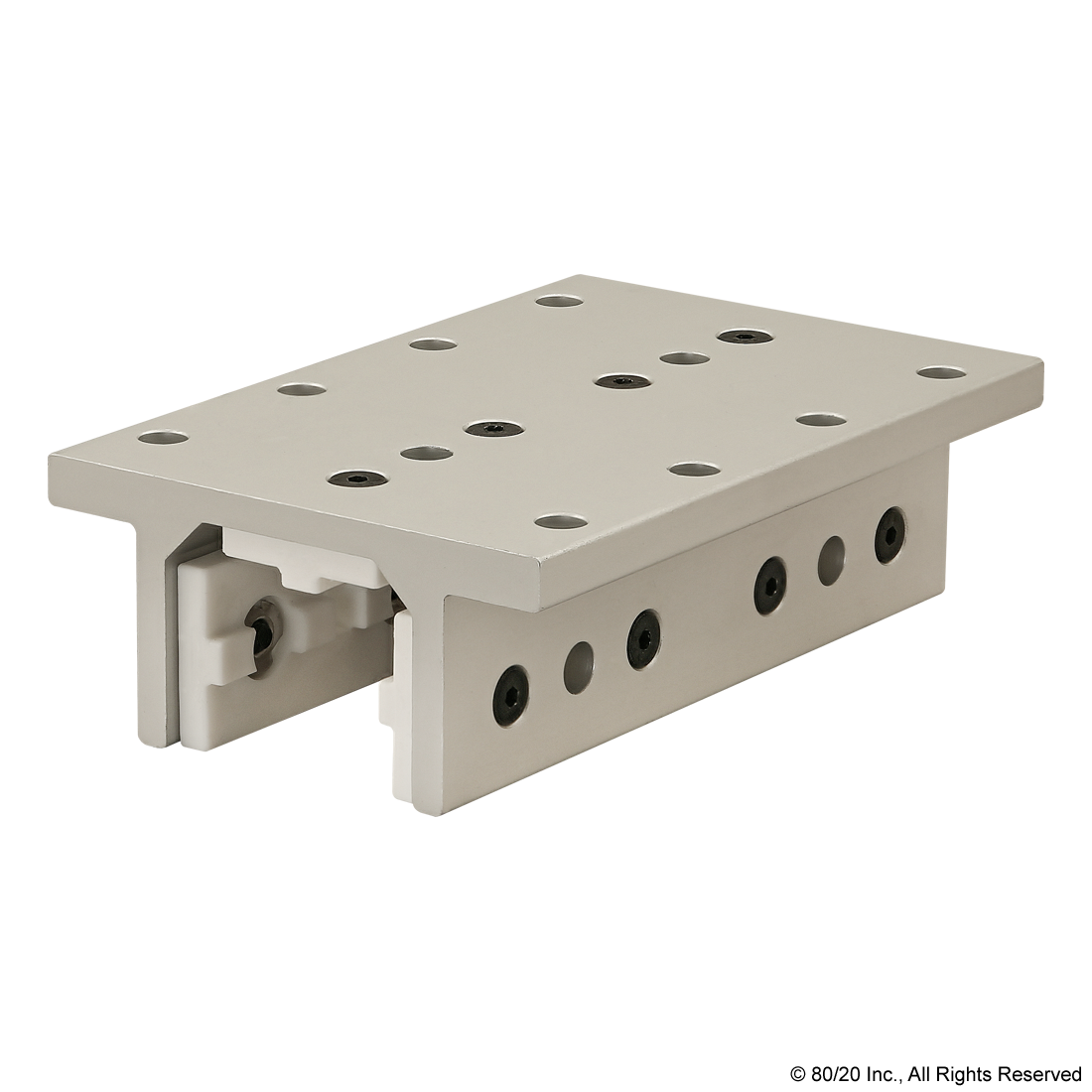

- Catalog Number: 6536
- Grade: 6105-T5
- Line Drawing Dimensions: A=1.875" B=.375" C=1.500" D=.125" E=2.505" F=.250" G=2.005" H=.493" J=.748" K=.250" L=4.000" M=6.000" N=1.500" P=.750" Q=.375" R=2.000" S=1.500" T=1.500" U=10-32 FHSCS V=.344" W=.328" X=3.250" AA=.625"
-
129.14000 / ea
- Catalog Number: 6834
- Grade: 6105-T5
- Line Drawing Dimensions: A=1.875" B=.375" C=1.500" D=.125" E=4.005" F=.250" G=3.505" H=.493" J=.748" K=.250" L=5.500" M=6.000" N=n/a P=.750" Q=.375" R=2.000" S=1.500" T=1.500" U=10-32 FHSCS V=n/a W=.328" X=4.750" AA=.750" AB=.625"
