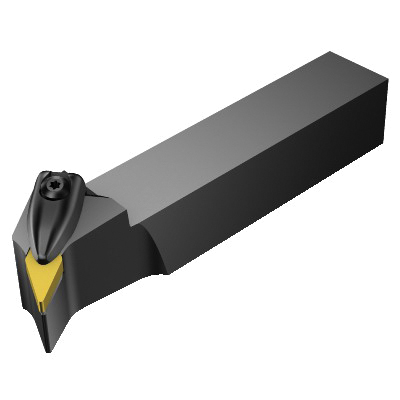

Sandvik Coromant 5731471 T-Max P Turning Shank Tool, DVPNR/L Tool Holder, VNMG 16 04 08 Insert, -27.5 deg Lead, Rectangle Shank, Left Hand
Indexable Turning Tool Holders
1064292
MFG #: 5731471
Sandvik Coromant
203.21000
/ ea
- Alternate Catalog Number: DVPNL 3225P 16
- ANSI Code: DVPNL 3225P 16
- Back of Bar to Cutting Edge: Rectangular
- Catalog Number: 5731471
- Country of Origin: SE
- Finish: DVPNR/L
- Gross Weight Per Pack: 2.4200 lb
- Head Length: Left Hand
- Inscribed Circle: 3/8 in
- Insert Seat Size: 3/8
- ISO Code: DVPNL 3225P 16
- Item Group: 410
- Material: Steel
- Series: T-Max P
- Shank Type: Rectangle
- Type: T-Max® P
- UPC 11: 69826227740
- UPC 12: 69826227740
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Cutting Direction: Left Hand
- Insert Compatibility: VNMG 16 04 08
- Lead Angle: -27.5 deg
- Overall Length: 6.6929 in
- Rake: -4 deg
- Shank Size: 1.2598 in H x 0.9842 in W
- Tool Holder Style: DVPNR/L
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DVPNR/L Tool Holder, 6.6929 in Overall Length, Rectangle Shank, 1.2598 in H x 0.9842 in W Shank, Insert Compatibility: VNMG 16 04 08, 3/8 Insert Seat, Left Hand Cutting, -27.5 deg Lead Angle, ANSI Code: DVPNL 3225P 16, ISO Code: DVPNL 3225P 16, -4 deg Rake, Steel
- Features
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Without coolant entry |
| Floating wedge, RC hole |
| No coolant exit |
| 117.5 deg cutting edge |
| -13 deg inclination |
| 39.2 mm maximum overhang |
| 25 deg ramping |
| V insert shape |
| 3 Nm torque |
| 32 mm H functional |
| 32 mm W functional |
| 170 mm L functional |
