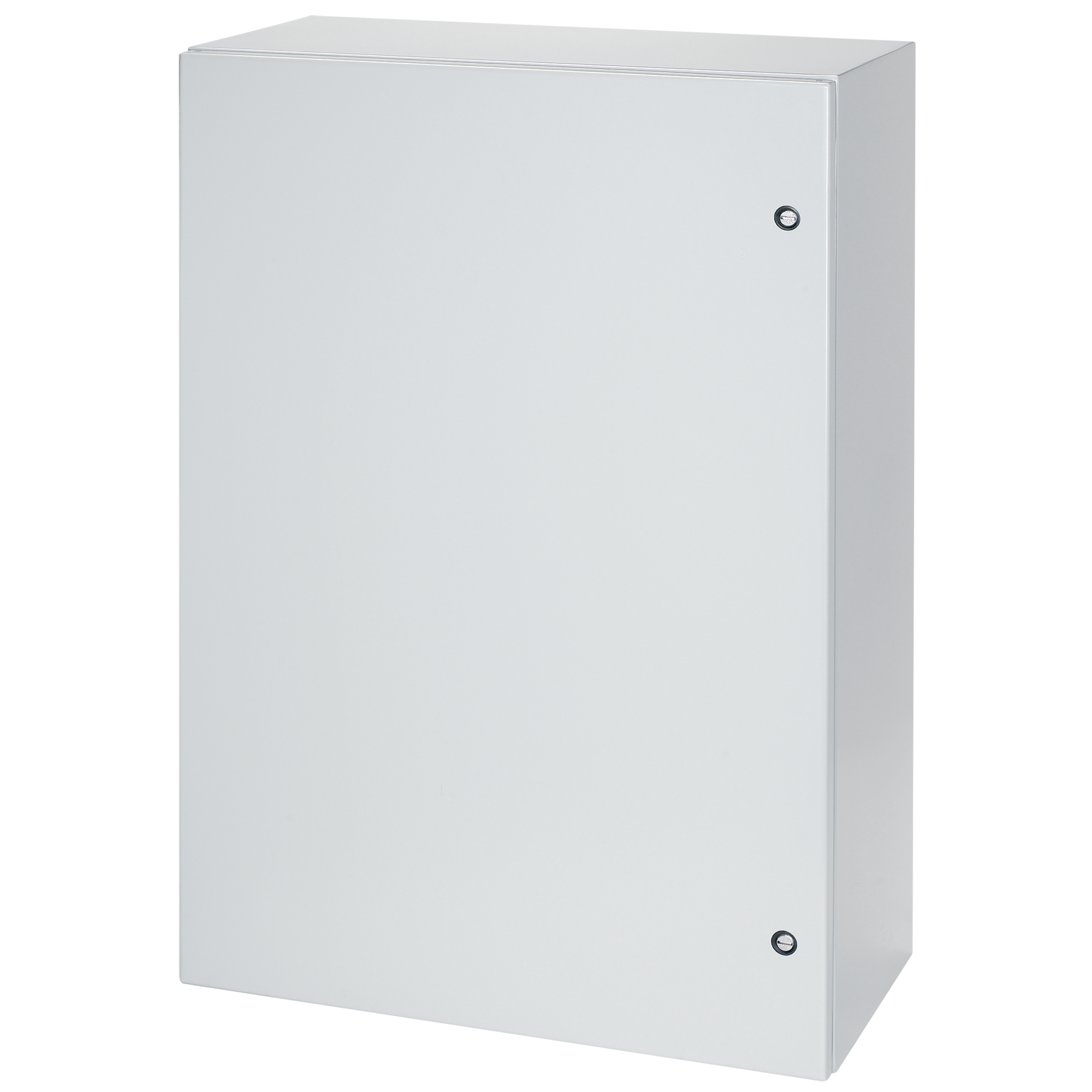

nVent HOFFMAN CONCEPT™ CSD362416 CW1 1-Door Enclosure, 36 in L x 24 in W x 16 in D, NEMA 4/12 NEMA Rating, Steel
Wall Mount Enclosures
1027672
MFG #: CSD362416
nVent HOFFMAN
1024.31000
/ ea
nVent HOFFMAN CONCEPT™ Enclosure, 1-Door, Series: CW1, 36 in Length, 24 in Width, 16 in Depth, NEMA 4/12, Hinged Cover, 22.2 in W x 34.2 in H Panel, Lock: Quarter Turn Latch, Wall Mount, Steel, Polyester Powder Painted, Gray
- Compliance Cert URL - Hoffman_CSD12106_Compliance Certificate.pdf(Compliance Cert URL)
- http://www.hoffmanonline.com(Seller Home Page URL)
- Install Instructions 1 URL - 11015_UR2KL0GPSQFCZMH9.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - 64303001.pdf(Install Instructions 1 URL)
- Install Instructions URL - Hoffman_CP1210_Installation_Sheet.pdf(Install Instructions URL)
- Spec Sheet URL - Spec-00286.pdf(Spec Sheet URL)
- Video - https://www.youtube.com/embed/ocjnVqclSOU(Video)
- Warranty URL - terms-of-sale(Warranty URL)
- Applications
- Features
| Controls and Drives |
| Streamlined styling, flush quarter-turn latches and an attractive, durable finish |
| Seams continuously welded and ground smooth |
| Corner formed door |
| Simple easy-to-remove and install hinge pins with built-in captivation clip |
| High-torque threadless studs and fasteners on door |
| Minimum width body flange provides maximum door opening |
| External formed body flange |
| Door opens 210 deg |
| Removable door with hidden hinges for clean, aesthetic appearance |
| Seamless foam in place gasket |
| Four hinges on 60 in high enclosures |
| Grounding stud on body, bonding provision on door |
| Installation instructions provided |
| Four hinges on 60 in high enclosures |
| Grounding stud on body, bonding provision on door (except window-door models) |
| Provisions on door for optional high-impact thermoplastic data pocket |
| Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers |
| Installation instructions provided |
| Three-point latch system on enclosures with height equal to or greater than 42 in with quarter turn, slotted latch |
| 34.5 x 22.5 in mounting size |
