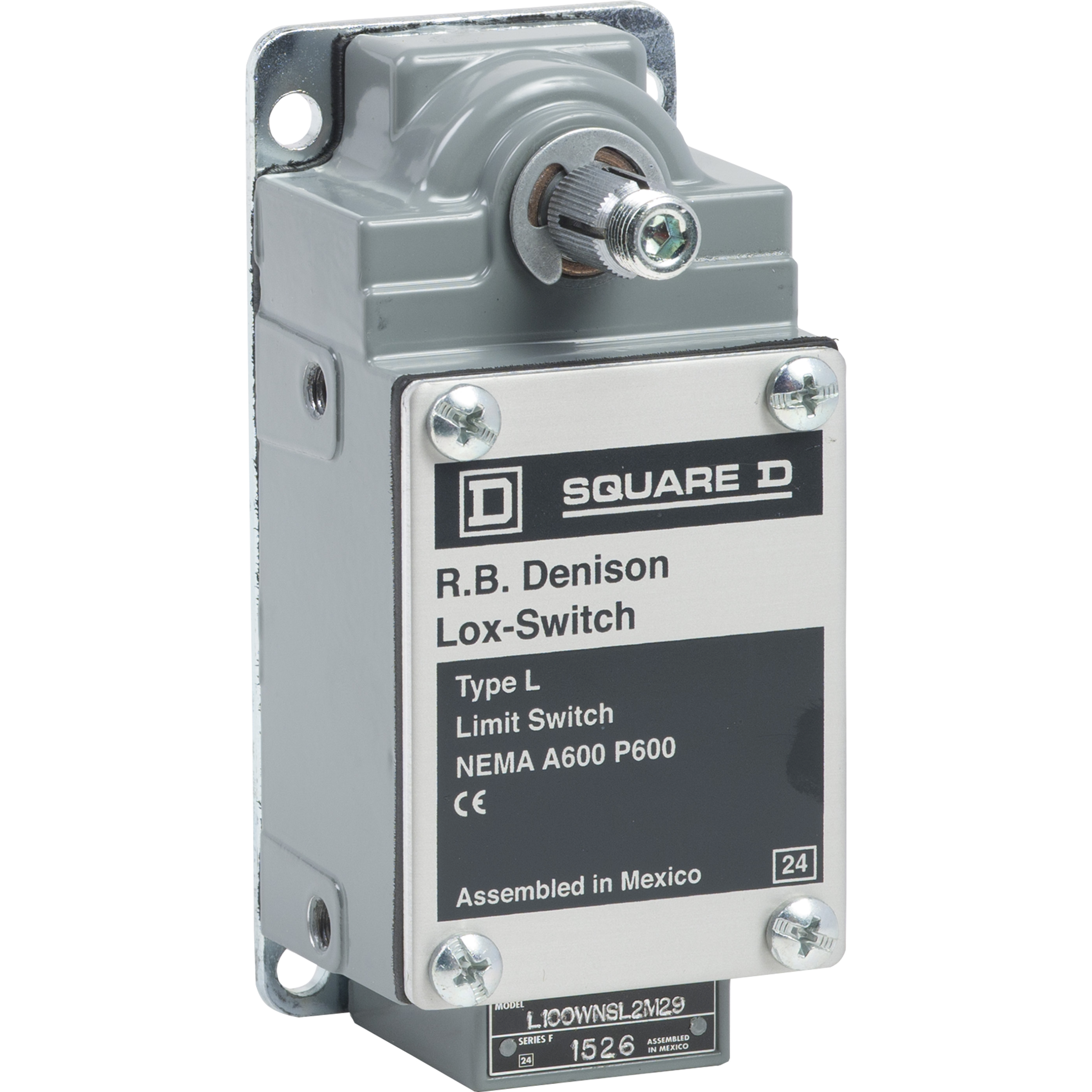

Telemecanique L100WNSL2M29 Severe Duty Mill Limit Switch, 600 V, 20 A, 1NC-1NO, 2NO, Form XX DPST-NO-DB Contact, 2 Poles
Rotary Actuated Limit Switches
1169618
MFG #: L100WNSL2M29
Telemecanique Sensors
392.70000
/ ea
Telemecanique Limit Switch, Severe Duty Mill, Series: L100, 600 V, 20 A, 1NC-1NO, 2NO, Form XX DPST-NO-DB Contact Configuration, 2 Pole, Rotary/Snap Action, 1/2-14 in NPT Conduit Entrance Screw Clamp Connection, NEMA 1/2/4/12/13 Enclosure, 4.95 in H x 2.25 in W x 3.41 in D Size, -10 to 185 deg F Operating, Cast Aluminum
- Applications
- Features
| Material Working, Packaging, Materials Handling, Conveying, Food and Beverage, Mining and Mineral Construction, Oil and Gas, Crane and Hoisting, Mill and Foundry Applications |
| FIXED,NEUTRAL POSITION |
| L100 mill and foundry for severe duty fixed sequences 59 mm housing |
| Extended operating and reset forces and heavy duty contacts that will break 20 A AC/DC |
| Heavy duty industrial switch designed to meet domestic and international standards |
| Miniature enclosed switches, potted and pre-wired with cable |
| NEMA A600/P600 contact rating |
| 1-entry for 1/2-14 NPT conforming to ANSI B1.20.1, fixed |
| Neutral position |
| Spring return without operating lever operator |
