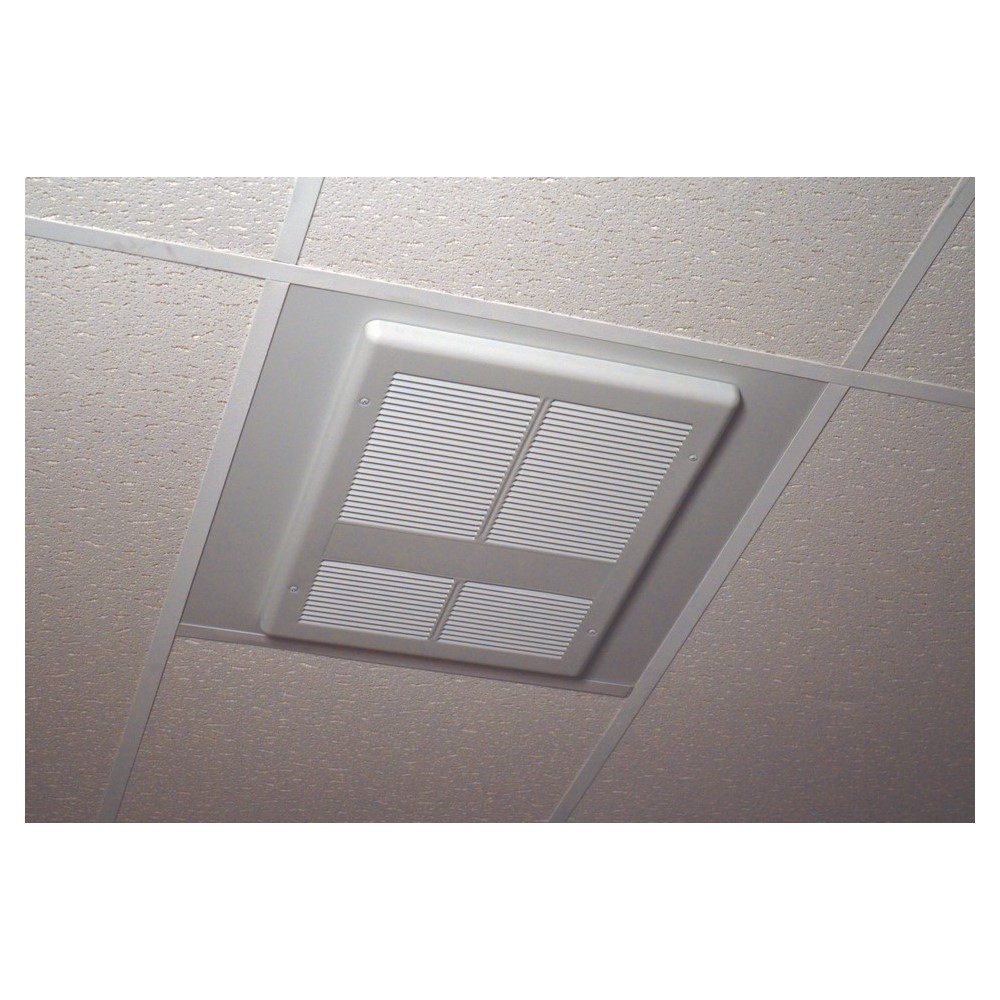

TPI G3387DRP 3380 1-Phase Standard Fan Forced Ceiling Heater, 16382 Btu, 277 VAC, 17.3 A, 4.8 kW
Custom_Product_Images_Illustration
TPI G3387DRP 3380 1-Phase Standard Fan Forced Ceiling Heater, 16382 Btu, 277 VAC, 17.3 A, 4.8 kW
SKU962500
MFGR #G3387DRP
$/ea
The heaters are be constructed of a heavy gauge steel housing. The rough-in dimensions are 19-3/16 in wide x 4 in deep. The finish shall be baked-on powder coat in Ceiling White color. The units shall be available in ratings from 1500 through 4800 W with an optional factory installed single pole thermostat. The heaters have a low speed 600 rpm motor, which drives a vane axial blower to deliver a quite 175 cfm of down flow air. The heating element shall be of the block finned type with large, parallel steel fins for quick heat transfer. Unit shall have as standard, a manual reset capillary type limit control, for added safety.
The heaters are be constructed of a heavy gauge steel housing. The rough-in dimensions are 19-3/16 in wide x 4 in deep. The finish shall be baked-on powder coat in Ceiling White color. The units shall be available in ratings from 1500 through 4800 W with an optional factory installed single pole thermostat. The heaters have a low speed 600 rpm motor, which drives a vane axial blower to deliver a quite 175 cfm of down flow air. The heating element shall be of the block finned type with large, parallel steel fins for quick heat transfer. Unit shall have as standard, a manual reset capillary type limit control, for added safety.
Amperage Rating 17.3 A Application Indoor-Commercial/Industrial ARRA Compliant Y Buy American Compliant Y Catalog Number G3387DRP Color White Country of Origin US Currency USD Dimensions 14-3/16 in W x 4 in D x 19-5/16 in H EU RoHS Indicator N Finish Powder Coated Flow Rate 200 cfm Gross Weight Per Pack 22.0000 lb Gross Weight per Pack Metric 9.98 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8516.29 Height 6.00 in Height [Metric] 15.2400 cm Housing Material Steel Length 16.00 in Length [Metric] 40.6400 cm Material Steel Model G3387D-RP Mounting Ceiling Mounting Type Ceiling Phase 1 Power Rating 4.8 kW Returnable Y Series 3380 Speed 700 rpm Standard cETLus Listed Standards ARRA CompliantBuy American Act CompliantcETLus Listed Temperature Rating 76 °F Type 1-Phase Fan Forced UNSPSC 40101809 UPC 11 68633436644 UPC 12 686334366441 Voltage Rating 277 VAC Wattage 4,800 W Width 21.00 in Width [Metric] 53.3400 cm Stock Status NONSTOCK Brand TPI Manufacturer TPI Indoor-Commercial/Industrial Features: Fan Purge Circuit;Disconnect Switch;Manual Reset Thermal Limit;Manufactured in U.S.A.; Btu Rating: 16382; Amperage Rating: 17.3 AMP; Air Flow: 200 CFM; Finish: Powder Coated; Color: White; Series: 3380 Fan purge circuit has 2 wire control circuit for use with remote wall thermostat Disconnect switch White powder coated 18 ga steel grill Manual reset thermal limit switch Steel block fin element Optional factory installed tamper resistant thermostat 20-9/64 in H x 15-3/8 in W grill Optional factory installed tamper resistant thermostat
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 17.3 A |
| Application | Indoor-Commercial/Industrial |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | G3387DRP |
| Color | White |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 14-3/16 in W x 4 in D x 19-5/16 in H |
| EU RoHS Indicator | N |
| Finish | Powder Coated |
| Flow Rate | 200 cfm |
| Gross Weight Per Pack | 22.0000 lb |
| Gross Weight per Pack Metric | 9.98 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8516.29 |
| Height | 6.00 in |
| Height [Metric] | 15.2400 cm |
| Housing Material | Steel |
| Length | 16.00 in |
| Length [Metric] | 40.6400 cm |
| Material | Steel |
| Model | G3387D-RP |
| Mounting | Ceiling |
| Mounting Type | Ceiling |
| Phase | 1 |
| Power Rating | 4.8 kW |
| Returnable | Y |
| Series | 3380 |
| Speed | 700 rpm |
| Standard | cETLus Listed |
| Standards | ARRA CompliantBuy American Act CompliantcETLus Listed |
| Temperature Rating | 76 °F |
| Type | 1-Phase Fan Forced |
| UNSPSC | 40101809 |
| UPC 11 | 68633436644 |
| UPC 12 | 686334366441 |
| Voltage Rating | 277 VAC |
| Wattage | 4,800 W |
| Width | 21.00 in |
| Width [Metric] | 53.3400 cm |
| Stock Status | NONSTOCK |
| Brand | TPI |
| Manufacturer | TPI |
| Indoor-Commercial/Industrial |
| Features: Fan Purge Circuit;Disconnect Switch;Manual Reset Thermal Limit;Manufactured in U.S.A.; Btu Rating: 16382; Amperage Rating: 17.3 AMP; Air Flow: 200 CFM; Finish: Powder Coated; Color: White; Series: 3380 |
| Fan purge circuit has 2 wire control circuit for use with remote wall thermostat |
| Disconnect switch |
| White powder coated 18 ga steel grill |
| Manual reset thermal limit switch |
| Steel block fin element |
| Optional factory installed tamper resistant thermostat |
| 20-9/64 in H x 15-3/8 in W grill |
| Optional factory installed tamper resistant thermostat |
