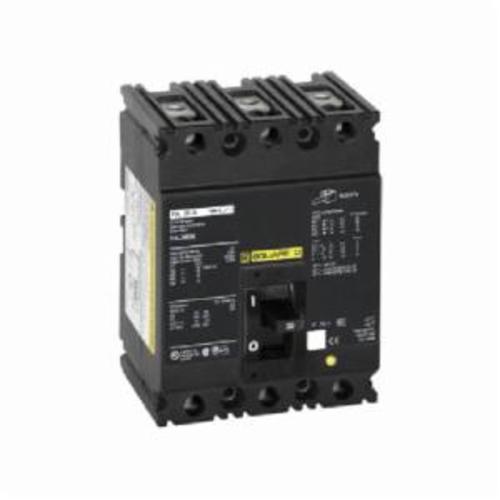

Square D™ I-Line™ FAL36070 Type FAL Molded Case Circuit Breaker, 600 VAC/250 VDC, 70 A, 14 kA Interrupt, 3 Poles
Molded Case Circuit Breakers
33296
MFG #: FAL36070
Square D™
1475.06000
/ ea
Square D FAL36070 MOLDED CASE CIRCUIT BREAKER 600V 70A,50/60 Hz,600 V AC,70 A,F-frame,Molded Case Circuit Breaker,Thermal Magnetic,UL, CSA
- Catalog URL - Square_D_FA24020AB_Catalog.pdf(Catalog URL)
- Full Eng Drawing URL - Square_D_FAB14020A_Technical_Drawing.pdf(Full Eng Drawing URL)
- http://www.schneider-electric.us/(Seller Home Page URL)
- Spec Sheet URL - FAL36070(Spec Sheet URL)
- Tech Drawing URL - FA_FC_FH_3P_100A_OUTLINE_001(Tech Drawing URL)
- Features
| UNIT MOUNT |
| Their primary functions are to provide a means to manually open a circuit and automatically open a circuit under overload or short circuit conditions |
| Thermal magnetic circuit breakers use bi-metals and electromagnetic assemblies to provide over current protection |
| Their characteristic inverse time tripping under overload conditions is ideally suited for many applications varying from residential to heavy industrial loads |
| 100 A frame size |
| Used on class 650/651 I-Line™ panelboard/switchboard |
| Standard interrupting, individually mounted |
| Compact and easy to install |
| Lugs on both ends |
| 18 kA at 480 VAC, 25 kA at 240 VAC, 10 kA at 250 VDC, 14 kA at 600 VAC interrupt rating |
| Unit mount |
| 18 kA at 480 VAC, 25 kA at 240 VAC, 10 kA at 250 VDC interrupt rating |
