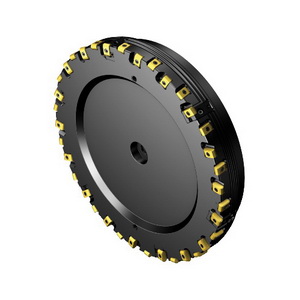

Sandvik Coromant 6717977 CoroMill® 425 Cap Mount Face Milling Cutter, 12 to 12.276 in Cutting, 10.577 in Shank, 2.48 in OAL, 0.035 in Max Depth of Cut
Indexable Face Mills
1244625
MFG #: 6717977
Sandvik Coromant
9951.06000
/ ea
Sandvik Coromant Face Milling Cutter, Cap Mount, Series: CoroMill® 425, 12 to 12.276 in Cutting Dia, 2.48 in Overall Length, 0.035 in Maximum Depth of Cut, 10.577 in Shank Dia, Right Hand Cutting, 25 deg Cutting Angle, ANSI Code: A425-305P-17H, ISO Code: A425-305P-17H, Steel
- Features
| External coolant |
| CoroMill 425 size 17 cutting item interface identifiers |
| 10.577 in Dia connection |
| 0 deg ramping |
| External coolant |
| 2.213 ft-lb torque |
| CoroMill 425 size 17 cutting item interface identifiers |
| 18 Peripheral effective cutting edge |
| 2.48 in L body |
| 12.043 in Dia body |
| 20 life cycle state |
