Sandvik Coromant

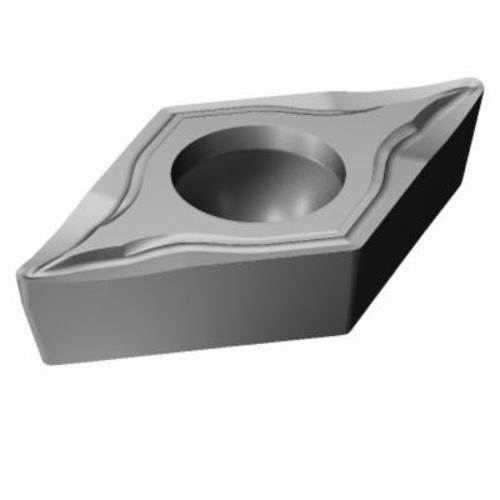

Sandvik Coromant 5730960 CoroTurn® 107 Basic Shape Positive Turning Insert, DCMT 3(2.5)1-UM 5015, D-55 deg Diamond, DCMT Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5730960 CoroTurn® 107 Basic Shape Positive Turning Insert, DCMT 3(2.5)1-UM 5015, D-55 deg Diamond, DCMT Insert
SKU311882
MFGR #5730960
Your Cost: $15.79/ea
List: Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, DCMT Insert, D-55 deg Diamond, 2 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 0.4577 in Length, UM Chipbreaker, 0.0156 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 5015, ANSI Code: DCMT 3(2.5)1-UM 5015, ISO Code: DCMT 11 T3 04-UM 5015, 55 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: K/P
Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, DCMT Insert, D-55 deg Diamond, 2 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 0.4577 in Length, UM Chipbreaker, 0.0156 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 5015, ANSI Code: DCMT 3(2.5)1-UM 5015, ISO Code: DCMT 11 T3 04-UM 5015, 55 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: K/P
Alternate Catalog Number DCMT 3(2.5)1-UM 5015 ANSI Code DCMT 3(2.5)1-UM 5015 Catalog Number 5730960 Corner Radius 0.0156 in Country of Origin JP Finish Uncoated Gross Weight Per Pack 0.0100 lb Hand of Insert Neutral Hole Diameter 0.1732 in Included Angle 55 deg lb ISO Code DCMT 11 T3 04-UM 5015 Item Group 130 Length 0.4577 in Relief Angle 7 deg Series CoroTurn® 107 Thickness 0.1562 in Type Basic Shape Positive UPC 11 69826229413 UPC 12 69826229413 Width UM Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker UM Inscribed Circle 3/8 in Insert Size D - 55 deg Diamond Insert Style DCMT Manufacturer's Grade 5015 Material Carbide Material Grade K/P Maximum Depth of Cut 2 mm Shape D-55 deg Diamond 40 - 60 deg countersunk hole and non-flat surface clamping interface 1-side cutting +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external machining of small, long, slender components and internal machining The positive insert shape combines low cutting forces with good edge strength The screw clamping ensures stability and unobstructed chip flow 0.08 - 0.25 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | DCMT 3(2.5)1-UM 5015 |
| ANSI Code | DCMT 3(2.5)1-UM 5015 |
| Catalog Number | 5730960 |
| Corner Radius | 0.0156 in |
| Country of Origin | JP |
| Finish | Uncoated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.1732 in |
| Included Angle | 55 deg lb |
| ISO Code | DCMT 11 T3 04-UM 5015 |
| Item Group | 130 |
| Length | 0.4577 in |
| Relief Angle | 7 deg |
| Series | CoroTurn® 107 |
| Thickness | 0.1562 in |
| Type | Basic Shape Positive |
| UPC 11 | 69826229413 |
| UPC 12 | 69826229413 |
| Width | UM |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | UM |
| Inscribed Circle | 3/8 in |
| Insert Size | D - 55 deg Diamond |
| Insert Style | DCMT |
| Manufacturer's Grade | 5015 |
| Material | Carbide |
| Material Grade | K/P |
| Maximum Depth of Cut | 2 mm |
| Shape | D-55 deg Diamond |
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 1-side cutting |
| +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external machining of small, long, slender components and internal machining |
| The positive insert shape combines low cutting forces with good edge strength |
| The screw clamping ensures stability and unobstructed chip flow |
| 0.08 - 0.25 mm/r cutting feed |
| 20 life cycle state |
