Siemens

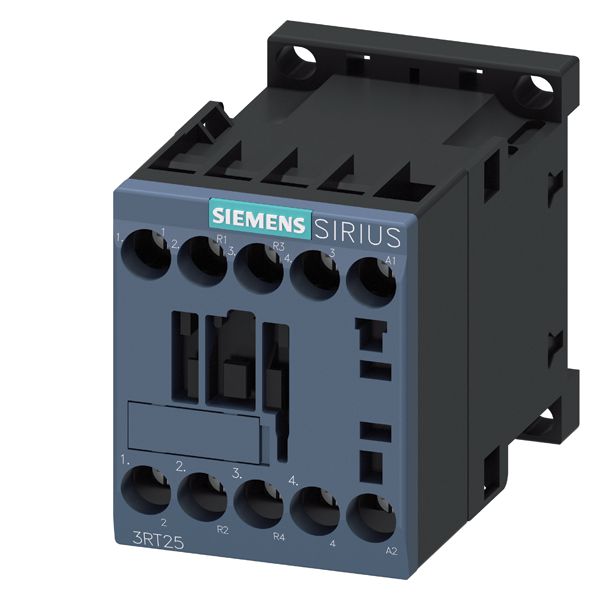

SIRIUS 3RT2518-1AK60 Power Contactor 3RT2518-1AK60, 110/120 VAC Coil, 16 A Max Load, 2NO/2NC, 4 Poles
Custom_Product_Images_Illustration
Siemens
SIRIUS 3RT2518-1AK60 Power Contactor 3RT2518-1AK60, 110/120 VAC Coil, 16 A Max Load, 2NO/2NC, 4 Poles
SKU773884
MFGR #3RT25181AK60
Your Cost: $105.20/ea
List: SIEMENS 3RT25181AK60 CONTACTOR S00 16A 120VAC 2NO/2NC SCREW
SIEMENS 3RT25181AK60 CONTACTOR S00 16A 120VAC 2NO/2NC SCREW
Alternate Catalog Number 3RT2518-1AK60 ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RT25181AK60 Coil Power Rating 43 VA Pickup/6.5 VA Holding Coil Voltage 110/120 VAC Connection Type Screw Contact Configuration 2NO-2NC Contact Rating A600/Q600 Contact Type Reversing Country of Origin DE Currency USD Dimensions 57.5 mm H x 45 mm W x 73 mm D Enclosure Type IP20 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 31.16 Gross Volume UOM in Gross Weight Per Pack 0.5150 lb Gross Weight per Pack Metric 0.23 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 2.4500 in Height [Metric] 6.2230 cm Length 3.4000 in Length [Metric] 8.6360 cm Manufacturer Siemens Maximum Load Current 16 A Mounting Type DIN Rail/Snap-On/Threaded Number of Auxiliary Contacts 2 Number Of Poles 4 Operating Cycles 30000000 Operating Temperature -25 to 60 Returnable Y Size Size S00 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCCC CertifiedCSA CertifiedCE CertifiedUL ListedEAC Approved Stock Status NONSTOCK Terminal Type Screw Type Innovation UNSPSC 39121529 UPC 11 66264391677 UPC 12 662643916775 Wattage 7.5 kW Width 2.2000 in Width [Metric] 5.5880 cm Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring 4-phase 110 VAC at 50 Hz, 120 VAC at 60 Hz voltage rating Can be tilted forward and backward by +/- 22.5 deg on vertical mounting surface Screw and snap-on mounting onto 35 mm standard mounting rail 30000000 of contactor/typical, 5000000 of the contactor with added electronics compatible auxiliary switch block typical, 10000000 of the contactor with added auxiliary switch block typical
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3RT2518-1AK60 |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RT25181AK60 |
| Coil Power Rating | 43 VA Pickup/6.5 VA Holding |
| Coil Voltage | 110/120 VAC |
| Connection Type | Screw |
| Contact Configuration | 2NO-2NC |
| Contact Rating | A600/Q600 |
| Contact Type | Reversing |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 57.5 mm H x 45 mm W x 73 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 31.16 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.5150 lb |
| Gross Weight per Pack Metric | 0.23 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 2.4500 in |
| Height [Metric] | 6.2230 cm |
| Length | 3.4000 in |
| Length [Metric] | 8.6360 cm |
| Manufacturer | Siemens |
| Maximum Load Current | 16 A |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Number of Auxiliary Contacts | 2 |
| Number Of Poles | 4 |
| Operating Cycles | 30000000 |
| Operating Temperature | -25 to 60 |
| Returnable | Y |
| Size | Size S00 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCCC CertifiedCSA CertifiedCE CertifiedUL ListedEAC Approved |
| Stock Status | NONSTOCK |
| Terminal Type | Screw |
| Type | Innovation |
| UNSPSC | 39121529 |
| UPC 11 | 66264391677 |
| UPC 12 | 662643916775 |
| Wattage | 7.5 kW |
| Width | 2.2000 in |
| Width [Metric] | 5.5880 cm |
| Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring. |
| These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring |
| 4-phase |
| 110 VAC at 50 Hz, 120 VAC at 60 Hz voltage rating |
| Can be tilted forward and backward by +/- 22.5 deg on vertical mounting surface |
| Screw and snap-on mounting onto 35 mm standard mounting rail |
| 30000000 of contactor/typical, 5000000 of the contactor with added electronics compatible auxiliary switch block typical, 10000000 of the contactor with added auxiliary switch block typical |
