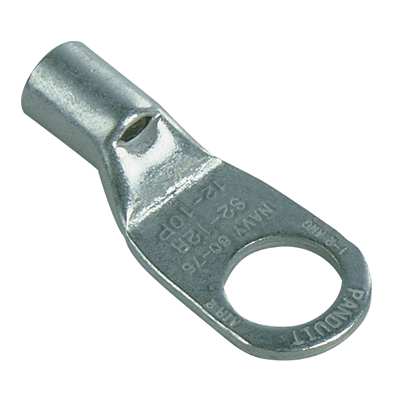

Panduit® S2-38R-T S Series Non-Insulated Tubular Ring Terminal, 2 to 1 AWG Conductor, 1.7 in L, Beveled Seamless Barrel, Copper
Ring Lugs
575318
MFG #: S2-38R-T
Panduit®
2167.39000
/ ea
Panduit® Tubular Ring Terminal, Non-Insulated, Series: S Series, 2 to 1 AWG Conductor, 3/8 in Stud, 1.7 in Length, Beveled Seamless Barrel, 0.36 in ID x 0.47 in OD x 0.59 in L Barrel, Straight Tongue, 0.7 in W x 0.11 in THK Tongue, 35 kVAC, 5/8 in Wire Stripe, 0.11 in Stock, 90 deg C, Copper, Tinned, Metallic
- http://www.panduit.com(Seller Home Page URL)
- Install Instructions 1 URL - 10965_3JV71HEPAYQGR8B0.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - 10965_T1U7DIJM4ZF6NKYV.pdf(Install Instructions 1 URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet URL - C-PCS8-10R--ENG.pdf(Spec Sheet URL)
- Install Instructions URL - N-TMT-PMPI-304-PC--REV03--ENG.pdf(Install Instructions URL)
- Tech Drawing URL - 10965_VCOR5PUI24XAT1YL.pdf(Tech Drawing URL)
- Video - https://www.panduit.com/content/dam/panduit/en/products/media/7/77/277/5277/110185277.mp4(Video)
- Tech Bulletin URL - 10965_4HBSMXIT3RPVYJL0.pdf(Tech Bulletin URL)
- Features
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| For CT-1700, CT-720, CT-930, CT-930CH, CT-940CH, CT-2001, CT-2002, CT-980, CT-2980, CT-980CH tools |
| Seamless tubular barrel provides a consistent high performance quality crimp |
| Round double thick tongue for reliable power applications |
| Barrel of terminal internally beveled to provide quick and easy wire insertion |
| Inspection window allows visual inspection of proper wire insertion |
