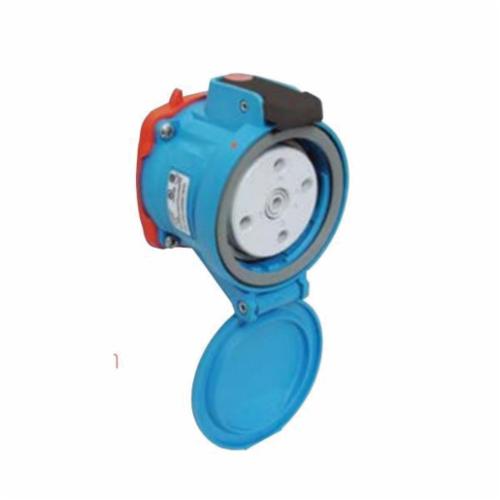

Meltric Decontactor™ 63-34043-972 DSN30 Pin and Sleeve Receptacle, 480 VAC, 30 A, 3 Poles, 4 Wires, Blue
Meltric Decontactor™ 63-34043-972 DSN30 Pin and Sleeve Receptacle, 480 VAC, 30 A, 3 Poles, 4 Wires, Blue
SKU357715
MFGR #63-34043-972
Your Cost: $407.63/ea
DSN Series products are switch and hp rated for quick, safe equipment changeouts. DSN's are ideal for wet environments since they offer Type 4X water tightness as soon as the plug is latched to the receptacle or as soon as the receptacle lid is closed.
DSN Series products are switch and hp rated for quick, safe equipment changeouts. DSN's are ideal for wet environments since they offer Type 4X water tightness as soon as the plug is latched to the receptacle or as soon as the receptacle lid is closed.
Catalog Number 63-34043-972 Country of Origin USA Environmental Conditions -40 to 140 ° F Gross Weight Per Pack 0.9690 lb Material Polyester NEMA Rating NEMA 4X, IP66/IP67 Number Of Poles 3 Phase 3 Size 2.87 DIA X 3.20 in Standard UL, CSA, NOM, IEC, CE, NFPA 70E Standards CE Marked, CSA Certified, IEC Rated, NFPA 70E, NOM Certified, RoHS Complaint, UL Listed Sub Brand Decontactor Type Receptacle UNSPSC 39121406 UPC 11 78447454607 UPC 12 78447454607 Wire Size 14 to 8 AWG Stock Status NONSTOCK Brand MELTRIC Manufacturer Meltric Corporation Amperage Rating 30 A Color Blue Number of Wires 4 Voltage Rating 480 V With Ground, Horsepower Rating 10 HP at 480 V, (2) Auxiliary/Pilot Contact, Short Circuit Rating 100 KAMP 14 to 8 AWG
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| Catalog Number | 63-34043-972 |
| Country of Origin | USA |
| Environmental Conditions | -40 to 140 ° F |
| Gross Weight Per Pack | 0.9690 lb |
| Material | Polyester |
| NEMA Rating | NEMA 4X, IP66/IP67 |
| Number Of Poles | 3 |
| Phase | 3 |
| Size | 2.87 DIA X 3.20 in |
| Standard | UL, CSA, NOM, IEC, CE, NFPA 70E |
| Standards | CE Marked, CSA Certified, IEC Rated, NFPA 70E, NOM Certified, RoHS Complaint, UL Listed |
| Sub Brand | Decontactor |
| Type | Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78447454607 |
| UPC 12 | 78447454607 |
| Wire Size | 14 to 8 AWG |
| Stock Status | NONSTOCK |
| Brand | MELTRIC |
| Manufacturer | Meltric Corporation |
| Amperage Rating | 30 A |
| Color | Blue |
| Number of Wires | 4 |
| Voltage Rating | 480 V |
| With Ground, Horsepower Rating 10 HP at 480 V, (2) Auxiliary/Pilot Contact, Short Circuit Rating 100 KAMP |
| 14 to 8 AWG |
