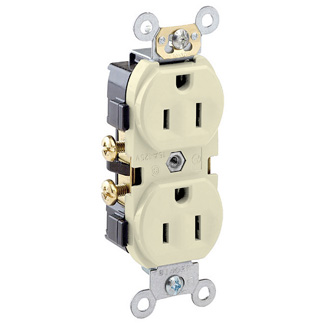

Leviton® CR15-T Duplex Traditional Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Light Almond
Straight Blade Receptacles
269924
MFG #: CR15-T
Leviton®
1.76000
/ ea
Leviton's line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor ins choice for use in hotels, schools, hospitals and commercial office buildings.
- http://www.leviton.com(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Safety Data Sheet URL - MSDS.pdf(Safety Data Sheet URL)
- Spec Sheet URL - ProductDetail.jsp?partnumber=CR15-T§ion=42416&minisite=10251(Spec Sheet URL)
- Tech Drawing URL - 10962_6W9N5EX80UQPJHSM.jpg(Tech Drawing URL)
- Tech Drawing URL - ibcGetAttachment.jsp?cItemId=35802&label=IBE&appName=IBE(Tech Drawing URL)
- Applications
- Features
| Commercial |
| Manufactured to withstand the demands of commercial and institutional applications |
| Heavy duty brass power contacts for maximum conductivity and plug retention |
| Shallow design for maximum wiring room in box |
| Self grounding |
| Brass double wipe 0.031 thick line contacts |
| Steel 8-32 terminal screws |
| Withstands 2000 V per UL498 dielectric voltage, rated V-2 per UL94 flammability |
| Max 30C after 250 cycles OL at 200 percent rated current |
| narrow body |
| 14 - 10 AWG wire size |
