Color-Keyed®
Color-Keyed® 54157NT CU 2/0 STD BAR NARROW TNG 1/4BLT PH

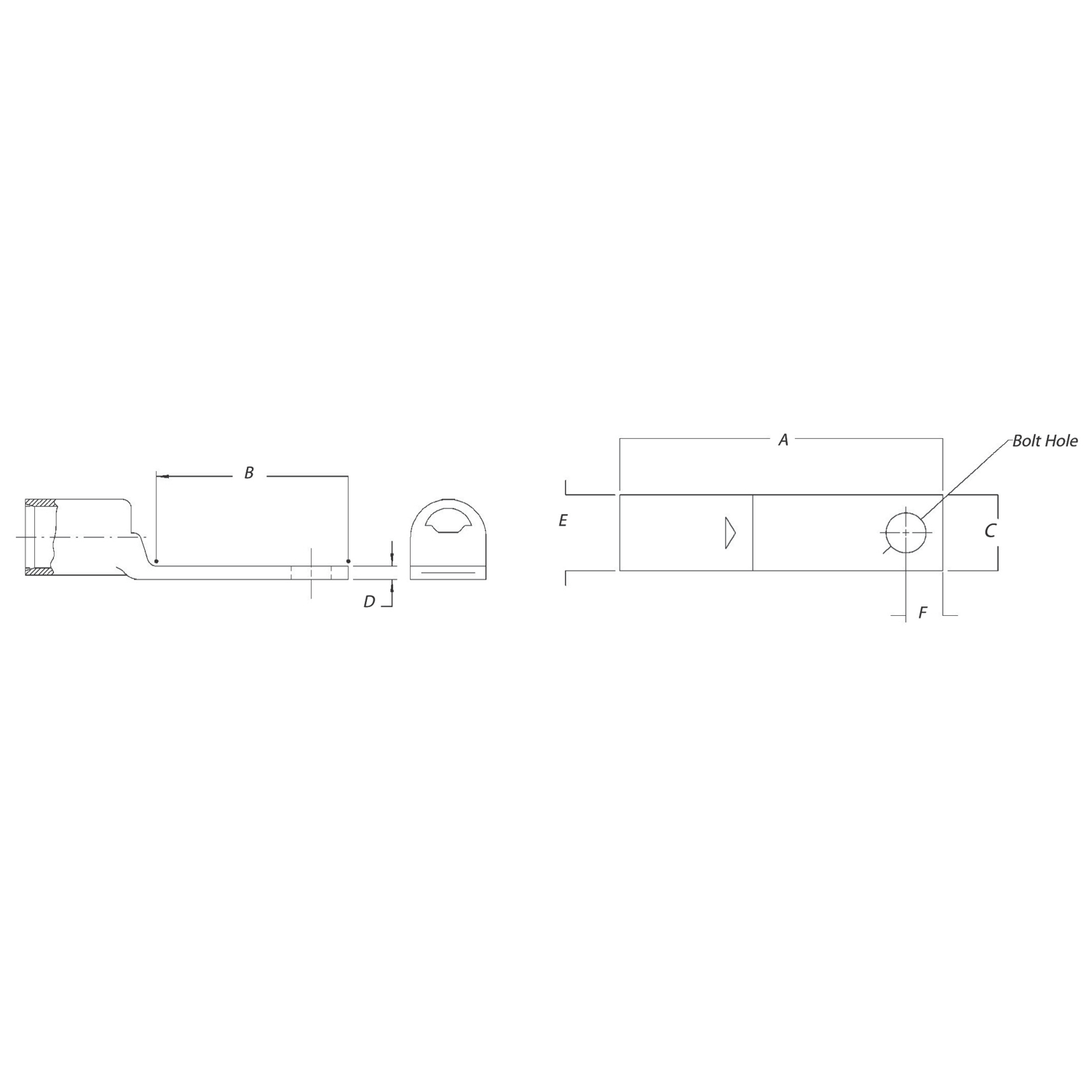

Custom_Product_Images_Illustration
Color-Keyed®
Color-Keyed® 54157NT CU 2/0 STD BAR NARROW TNG 1/4BLT PH
SKU540621
MFGR #54157NT
Your Cost: $39.8908/ea($3,989.08 / c)
The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by Thomas & Betts. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.
The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by Thomas & Betts. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.
Alternate Catalog Number 7TAH007990R0399 ARRA Compliant C Barrel Size 0.57 in Dia Barrel Type Standard Buy American Compliant C Cable Size 2/0 AWG Catalog Number 54157NT Color Black Country of Origin MX Currency USD EU RoHS Indicator C Gross Volume Per Pack 0.03 Gross Volume per Pack Metric 0.00 Gross Weight Per Pack 0.0500 lb Gross Weight per Pack Metric 0.02 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 3.00 in Height [Metric] 7.6200 cm Insulation None Item Group 1L Item Group 2 1LP Length 4.00 in Length [Metric] 10.1600 cm Mounting Hole Size 0.281 in Number Of Holes 1 Overall Length 1.65 in Returnable A Series 54100 Standard UL E9809 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E9809CSA Certified Sub Brand Color Keyed Tongue Size 0.65 in L x 0.83 in W x 0.13 in THK Tongue Type Narrow Type 1-Hole UNSPSC 39121405 UPC 11 78620986790 UPC 12 786209867902 Voltage Rating 35 kVA Width 4.00 in Width [Metric] 10.1600 cm Stock Status NONSTOCK Brand Color-Keyed® Manufacturer Thomas & Betts Conductor Size 2/0 AWG Conductor Type Copper Die Code 45 Material Copper Stud Size 1/4 in Peep hole High conductivity wrought copper construction Tin plated finish
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 7TAH007990R0399 |
| ARRA Compliant | C |
| Barrel Size | 0.57 in Dia |
| Barrel Type | Standard |
| Buy American Compliant | C |
| Cable Size | 2/0 AWG |
| Catalog Number | 54157NT |
| Color | Black |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 0.03 |
| Gross Volume per Pack Metric | 0.00 |
| Gross Weight Per Pack | 0.0500 lb |
| Gross Weight per Pack Metric | 0.02 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 3.00 in |
| Height [Metric] | 7.6200 cm |
| Insulation | None |
| Item Group | 1L |
| Item Group 2 | 1LP |
| Length | 4.00 in |
| Length [Metric] | 10.1600 cm |
| Mounting Hole Size | 0.281 in |
| Number Of Holes | 1 |
| Overall Length | 1.65 in |
| Returnable | A |
| Series | 54100 |
| Standard | UL E9809 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E9809CSA Certified |
| Sub Brand | Color Keyed |
| Tongue Size | 0.65 in L x 0.83 in W x 0.13 in THK |
| Tongue Type | Narrow |
| Type | 1-Hole |
| UNSPSC | 39121405 |
| UPC 11 | 78620986790 |
| UPC 12 | 786209867902 |
| Voltage Rating | 35 kVA |
| Width | 4.00 in |
| Width [Metric] | 10.1600 cm |
| Stock Status | NONSTOCK |
| Brand | Color-Keyed® |
| Manufacturer | Thomas & Betts |
| Conductor Size | 2/0 AWG |
| Conductor Type | Copper |
| Die Code | 45 |
| Material | Copper |
| Stud Size | 1/4 in |
| Peep hole |
| High conductivity wrought copper construction |
| Tin plated finish |
