Baldor-Reliance

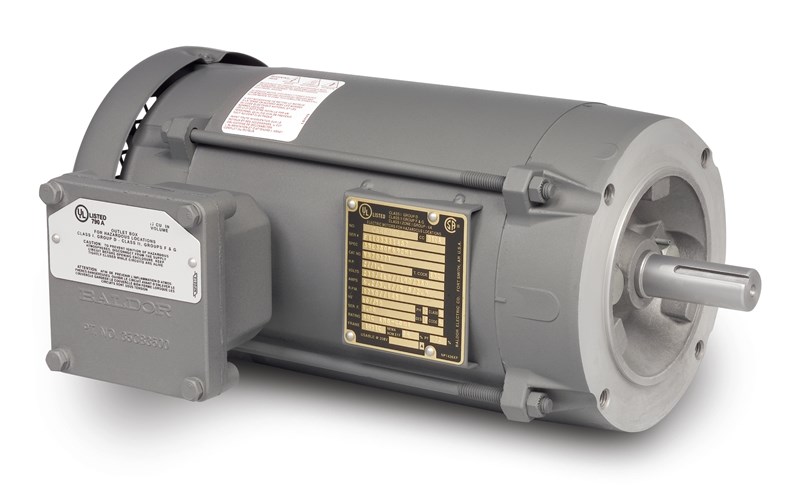

Baldor-Reliance VL5004A AC Motor, 115/208/230 VAC, 3.7/3.9/7.4 A, 56 Frame, 0.5 hp, 1725 rpm
Custom_Product_Images_Illustration
Baldor-Reliance
Baldor-Reliance VL5004A AC Motor, 115/208/230 VAC, 3.7/3.9/7.4 A, 56 Frame, 0.5 hp, 1725 rpm
SKU1306280
MFGR #VL5004A
Your Cost: $586.87/ea
List: Baldor-Reliance AC Motor, 115/208/230 VAC, 3.7/3.9/7.4 A, 60 Hz, 0.5 hp, 1, 1725 rpm, 1 Speed, XPFC, 56 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1, Ball Bearing, 4.4 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 14.22 in L
Baldor-Reliance AC Motor, 115/208/230 VAC, 3.7/3.9/7.4 A, 60 Hz, 0.5 hp, 1, 1725 rpm, 1 Speed, XPFC, 56 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1, Ball Bearing, 4.4 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 14.22 in L
Application Hazardous Location Motor Base No mounting Catalog Number VL5004A Country of Origin US Duty Continuous Frequency Rating 60 Hz Gross Weight Per Pack 37.0000 lb Insulation Class F NEMA DESIGN N Rotation Reversible Service Factor 1 Standards CSA Certified, UR Standard, UL Listed, NEMA Type AC Motors UNSPSC 26101112 UPC 11 78156811173 Stock Status NONSTOCK Brand Baldor-Reliance Manufacturer Baldor-Reliance (ABB) Enclosure XPFC Frame 56 Full Load Current 3.7/3.9/7.4 A Horsepower 0.5 hp Mounting F1 Phase 1 Power Factor 1.00 Speed Rating 1,725 rpm Voltage Rating 115/208/230 V Hazardous Location Motor .5HP,1725RPM,1PH,60HZ,56C,X3424L,XPFC,F1 Corrosion resistant epoxy finish Positively locked drive end bearing 66 power factor
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Hazardous Location Motor |
| Base | No mounting |
| Catalog Number | VL5004A |
| Country of Origin | US |
| Duty | Continuous |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 37.0000 lb |
| Insulation Class | F |
| NEMA DESIGN | N |
| Rotation | Reversible |
| Service Factor | 1 |
| Standards | CSA Certified, UR Standard, UL Listed, NEMA |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156811173 |
| Stock Status | NONSTOCK |
| Brand | Baldor-Reliance |
| Manufacturer | Baldor-Reliance (ABB) |
| Enclosure | XPFC |
| Frame | 56 |
| Full Load Current | 3.7/3.9/7.4 A |
| Horsepower | 0.5 hp |
| Mounting | F1 |
| Phase | 1 |
| Power Factor | 1.00 |
| Speed Rating | 1,725 rpm |
| Voltage Rating | 115/208/230 V |
| Hazardous Location Motor |
| .5HP,1725RPM,1PH,60HZ,56C,X3424L,XPFC,F1 |
| Corrosion resistant epoxy finish |
| Positively locked drive end bearing |
| 66 power factor |
