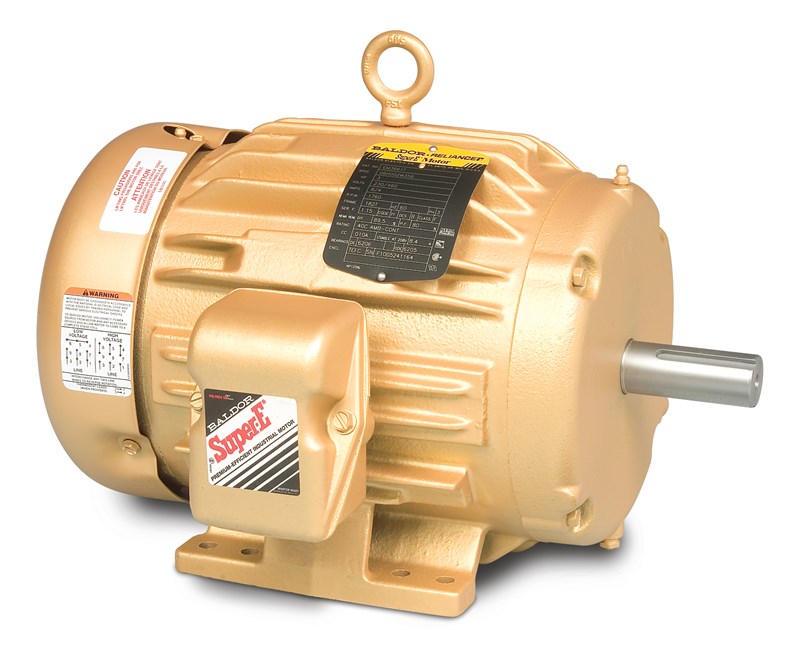

Baldor-Reliance Super-E® EM3584T AC Motor, 208/230/460 VAC, 2.3/4.6 A, 145 Frame, 1.5 hp, 1765 rpm
Custom_Product_Images_Illustration
Baldor-Reliance Super-E® EM3584T AC Motor, 208/230/460 VAC, 2.3/4.6 A, 145 Frame, 1.5 hp, 1765 rpm
SKU1294971
MFGR #EM3584T
Your Cost: $1,270.94/ea
List: Baldor-Reliance Super-E® AC Motor, 208/230/460 VAC, 2.3/4.6 A, 60 Hz, 1.5 hp, 3, 1765 rpm, 1 Speed, TEFC, 145 Frame, 7/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 21.7 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Iron, 12.53 in L x 10.38 in W x 7-1/2 in H
Baldor-Reliance Super-E® AC Motor, 208/230/460 VAC, 2.3/4.6 A, 60 Hz, 1.5 hp, 3, 1765 rpm, 1 Speed, TEFC, 145 Frame, 7/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 21.7 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Iron, 12.53 in L x 10.38 in W x 7-1/2 in H
Application General purpose Base Rigid Catalog Number EM3584T Country of Origin US Duty Continuous Frequency Rating 60 Hz Gross Weight Per Pack 57.0000 lb Insulation Class F NEMA DESIGN B Rotation Reversible Service Factor 1 Standards CSA Certified, UR Standard Sub Brand Super-E Type AC Motors UNSPSC 26101112 UPC 11 78156813893 Stock Status NONSTOCK Brand Baldor-Reliance Manufacturer Baldor-Reliance (ABB) Enclosure TEFC Frame 145 Full Load Current 2.3/4.6 A Horsepower 1.5 hp Mounting F1 Phase 3 Power Factor 1.00 Speed Rating 1,765 rpm Voltage Rating 200/230/460 V General Purpose 1.5HP,1765RPM,3PH,60HZ,145T,0526M,TEFC,F Suitable for mounting any position 71 power factor Rigid base
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | General purpose |
| Base | Rigid |
| Catalog Number | EM3584T |
| Country of Origin | US |
| Duty | Continuous |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 57.0000 lb |
| Insulation Class | F |
| NEMA DESIGN | B |
| Rotation | Reversible |
| Service Factor | 1 |
| Standards | CSA Certified, UR Standard |
| Sub Brand | Super-E |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156813893 |
| Stock Status | NONSTOCK |
| Brand | Baldor-Reliance |
| Manufacturer | Baldor-Reliance (ABB) |
| Enclosure | TEFC |
| Frame | 145 |
| Full Load Current | 2.3/4.6 A |
| Horsepower | 1.5 hp |
| Mounting | F1 |
| Phase | 3 |
| Power Factor | 1.00 |
| Speed Rating | 1,765 rpm |
| Voltage Rating | 200/230/460 V |
| General Purpose |
| 1.5HP,1765RPM,3PH,60HZ,145T,0526M,TEFC,F |
| Suitable for mounting any position |
| 71 power factor |
| Rigid base |
