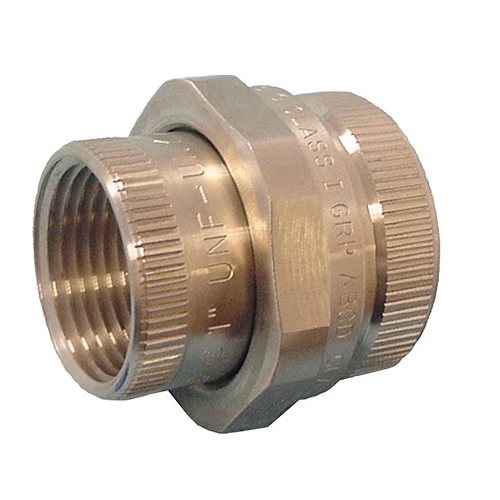

Appleton® UNF75NR-A Unilet® UNF Non-Expansion Explosionproof Conduit Union, 3/4 in, Aluminum, Natural
Custom_Product_Images_Illustration
Appleton® UNF75NR-A Unilet® UNF Non-Expansion Explosionproof Conduit Union, 3/4 in, Aluminum, Natural
SKU84375
MFGR #UNF75NR-A
Your Cost: $38.30/ea
Appleton Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton Group has all the top quality componets you need.
Appleton Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton Group has all the top quality componets you need.
Application For Connecting Conduit To Conduit ARRA Compliant N Buy American Compliant N Catalog Number UNF75NR-A Connection Female Threaded Country of Origin MX Currency USD Dimensions 1-3/4 in OD x 1.47 in L EU RoHS Indicator C Flexibility Rigid And IMC Gross Weight Per Pack 0.1200 lb Gross Weight per Pack Metric 0.05 Gross Weight UOM Metric kg Height 0.31 in Height [Metric] 7.8740 mm Length 6.50 in Length [Metric] 16.5100 cm Outside Diameter 1.75 in Series UNF Standard UL 886 (1203), UL File Number E10444, UL Listed for Class I, Groups A, B, C, d; Class II, Groups E, F, G; and Class III, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181 Certified Standards UL 886UL 1203UL File No. E10444Class I, Div 1 and 2 Groups A, B, C, D, Class II, Div 1 and 2 Groups E, F, G, Class IIICSA C22.2 No. 25/30CSA 065181RoHs Compliant Sub Brand UNILETS Suitable For Use With IMC/Threaded Rigid Metallic Conduit Trade Size 0.75 in Type Dust-Ignitionproof Explosionproof UNSPSC 39131707 UPC 11 78138123413 UPC 12 781381234139 Width 4.70 in Width [Metric] 11.9380 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Finish Natural Material Copper Free Aluminum Size 3/4 in For Connecting Conduit To Conduit Explosionproof, dust-ignitionproof; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Concentric ring interlocked design sizes makes possible smaller diameter, allowing use in tighter spaces; UNF unions are used for joining conduit and connecting conduit to enclosures, Facilitates modifications, permits removal of enclosures without turning or removal of conduit Facilitates modifications, permits removal of enclosures without turning or removal of conduit Explosion proof, dust-ignition proof Smooth, rounded integral bushing in each hub protects conductor insulation Accurately tapped, tapered threads for tight, rigid joints and ground continuity Concretetight Female x female connection
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Connecting Conduit To Conduit |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | UNF75NR-A |
| Connection | Female Threaded |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 1-3/4 in OD x 1.47 in L |
| EU RoHS Indicator | C |
| Flexibility | Rigid And IMC |
| Gross Weight Per Pack | 0.1200 lb |
| Gross Weight per Pack Metric | 0.05 |
| Gross Weight UOM Metric | kg |
| Height | 0.31 in |
| Height [Metric] | 7.8740 mm |
| Length | 6.50 in |
| Length [Metric] | 16.5100 cm |
| Outside Diameter | 1.75 in |
| Series | UNF |
| Standard | UL 886 (1203), UL File Number E10444, UL Listed for Class I, Groups A, B, C, d; Class II, Groups E, F, G; and Class III, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181 Certified |
| Standards | UL 886UL 1203UL File No. E10444Class I, Div 1 and 2 Groups A, B, C, D, Class II, Div 1 and 2 Groups E, F, G, Class IIICSA C22.2 No. 25/30CSA 065181RoHs Compliant |
| Sub Brand | UNILETS |
| Suitable For Use With | IMC/Threaded Rigid Metallic Conduit |
| Trade Size | 0.75 in |
| Type | Dust-Ignitionproof Explosionproof |
| UNSPSC | 39131707 |
| UPC 11 | 78138123413 |
| UPC 12 | 781381234139 |
| Width | 4.70 in |
| Width [Metric] | 11.9380 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Finish | Natural |
| Material | Copper Free Aluminum |
| Size | 3/4 in |
| For Connecting Conduit To Conduit |
| Explosionproof, dust-ignitionproof; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Concentric ring interlocked design sizes makes possible smaller diameter, allowing use in tighter spaces; UNF unions are used for joining conduit and connecting conduit to enclosures, Facilitates modifications, permits removal of enclosures without turning or removal of conduit |
| Facilitates modifications, permits removal of enclosures without turning or removal of conduit |
| Explosion proof, dust-ignition proof |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Accurately tapped, tapered threads for tight, rigid joints and ground continuity |
| Concretetight |
| Female x female connection |
