Appleton™

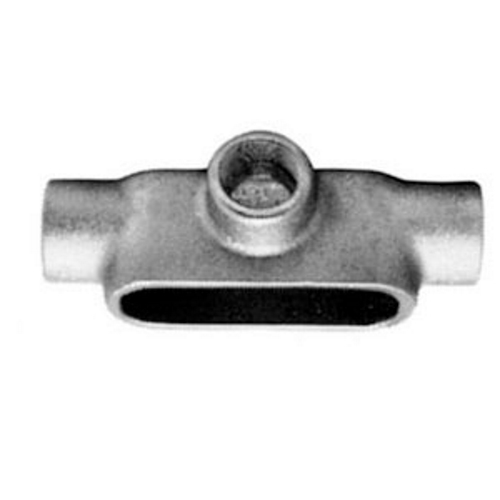

Appleton® T57SA FM7™ Unilets™ T57-SA Type T Conduit Outlet Body, 1-1/2 in Hub, Form 7, 28 cu-in, Aluminum, Epoxy Powder Coated
Custom_Product_Images_Illustration
Appleton™
Appleton® T57SA FM7™ Unilets™ T57-SA Type T Conduit Outlet Body, 1-1/2 in Hub, Form 7, 28 cu-in, Aluminum, Epoxy Powder Coated
SKU628425
MFGR #T57SA
Your Cost: $115.02/ea
Appleton® Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton® Group has all the top quality componets you need.
Appleton® Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton® Group has all the top quality componets you need.
Application For Use With Rigid Steel, Rigid Aluminum Conduit And IMC ARRA Compliant N Buy American Compliant C Catalog Number T57SA Connection Tapered Female Threaded in Country of Origin MX Currency USD EU RoHS Indicator C Gross Weight Per Pack 1.4300 lb Gross Weight per Pack Metric 0.97 Gross Weight UOM Metric kg Height 1.00 in Height [Metric] 25.4000 mm Item Group 0130A Item Group 2 013 Length 16.00 in Length [Metric] 40.6400 cm Returnable Y Standard UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 Standards UL 514B, E2527, CSA C22.2 NO 18.3, CSA 065183 Certified, RoHS Compliant Sub Brand UNILETS Type Type T Conduit Outlet Body UNSPSC 39131708 UPC 11 78138160102 UPC 12 781381601023 Width 9.00 in Width [Metric] 22.8600 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Finish Epoxy Powder Coated Form 7 Hub Size 1.5 in Material Aluminum For Use With Rigid Steel, Rigid Aluminum Conduit And IMC Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers; Equivalent FM7 and Form 7 units have identical applications and installation dimensions; Flat back design provides greater cubic content for easier wire pulling and more room for splicing; Fits flush and snug against flat surfaces for more stable installation; Smooth hub openings allow easy conduit joining; Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body; Wiring capacity: 28 CU-IN as per NEC 314.16(A) Equivalent FM7™ and Form 7 units have identical applications and installation dimensions Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| ARRA Compliant | N |
| Buy American Compliant | C |
| Catalog Number | T57SA |
| Connection | Tapered Female Threaded in |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 1.4300 lb |
| Gross Weight per Pack Metric | 0.97 |
| Gross Weight UOM Metric | kg |
| Height | 1.00 in |
| Height [Metric] | 25.4000 mm |
| Item Group | 0130A |
| Item Group 2 | 013 |
| Length | 16.00 in |
| Length [Metric] | 40.6400 cm |
| Returnable | Y |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Standards | UL 514B, E2527, CSA C22.2 NO 18.3, CSA 065183 Certified, RoHS Compliant |
| Sub Brand | UNILETS |
| Type | Type T Conduit Outlet Body |
| UNSPSC | 39131708 |
| UPC 11 | 78138160102 |
| UPC 12 | 781381601023 |
| Width | 9.00 in |
| Width [Metric] | 22.8600 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Finish | Epoxy Powder Coated |
| Form | 7 |
| Hub Size | 1.5 in |
| Material | Aluminum |
| For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers; Equivalent FM7 and Form 7 units have identical applications and installation dimensions; Flat back design provides greater cubic content for easier wire pulling and more room for splicing; Fits flush and snug against flat surfaces for more stable installation; Smooth hub openings allow easy conduit joining; Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body; Wiring capacity: 28 CU-IN as per NEC 314.16(A) |
| Equivalent FM7™ and Form 7 units have identical applications and installation dimensions |
| Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body |
