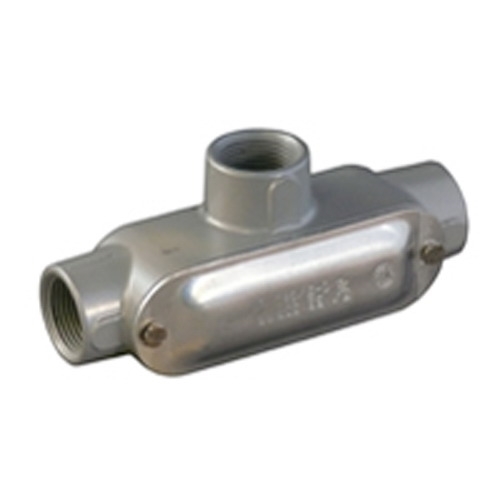

Appleton® T-50ACGA Form 85™ Unilets™ T50-ACGA Type T Conduit Outlet Body With Cover and Gasket, 1/2 in Hub, Form 85, 4 cu-in
Custom_Product_Images_Illustration
Appleton® T-50ACGA Form 85™ Unilets™ T50-ACGA Type T Conduit Outlet Body With Cover and Gasket, 1/2 in Hub, Form 85, 4 cu-in
SKU48232
MFGR #T50ACGA
Your Cost: $24.80/ea
Appleton® Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton® Group has all the top quality componets you need.
Appleton® Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton® Group has all the top quality componets you need.
Application For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT ARRA Compliant N Buy American Compliant N Catalog Number T50ACGA Connection Tapered Female Threaded Connection Type Tapered FNPT Country of Origin IN Currency USD Dimensions 4.75 in L x 1.38 in H Enclosure NEMA FB-1 EU RoHS Indicator N Gross Weight Per Pack 0.3400 lb Gross Weight per Pack Metric 0.15 Gross Weight UOM Metric kg Height 0.41 in Height [Metric] 10.4140 mm Length 8.70 in Length [Metric] 22.0980 cm Mounting Type Surface Number of Hubs 3 Standard UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 Standards UL 514A/514B/E2527CSA C22.2 No. 18.3/065183 Sub Brand Unilets Type Type T UNSPSC 39131708 UPC 11 78138182611 UPC 12 781381826112 Width 6.70 in Width [Metric] 17.0180 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Capacity 4 in³ Finish Epoxy Powder Coated Form 85 Hub Size 1/2 in Material Pressure Cast Aluminum For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Roomy interiors: more wiring space; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Form 85 copperfree aluminum Unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance; Lightweight aluminum facilitates shipping, handling and installing; Sizes with flat-back design ideal where fitting is mounted flat against surface; Internal volume and maximum wire capacity clearly marked on castings; Threaded style is raintight when used with casketed covers; Wiring capacity: 4 CU-IN as per NEC 314.16(A) Serve as pulling fittings Make bends in conduit system Provide openings for splicing, connect and change direction of conduit runs Allow connections for branch runs Permit access to conductors for maintenance Smooth, rounded integral bushing in each hub protects conductor insulation Roomy interiors, more wiring space Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity Form 85™ copper free aluminum Unilets™ are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance Lightweight aluminum facilitates shipping, handling and installing Sizes with flat-back design ideal where fitting is mounted flat against surface Internal volume and maximum wire capacity clearly marked on castings Threaded style is raintight when used with casketed covers Pressure Cast Aluminum
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | T50ACGA |
| Connection | Tapered Female Threaded |
| Connection Type | Tapered FNPT |
| Country of Origin | IN |
| Currency | USD |
| Dimensions | 4.75 in L x 1.38 in H |
| Enclosure | NEMA FB-1 |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 0.3400 lb |
| Gross Weight per Pack Metric | 0.15 |
| Gross Weight UOM Metric | kg |
| Height | 0.41 in |
| Height [Metric] | 10.4140 mm |
| Length | 8.70 in |
| Length [Metric] | 22.0980 cm |
| Mounting Type | Surface |
| Number of Hubs | 3 |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Standards | UL 514A/514B/E2527CSA C22.2 No. 18.3/065183 |
| Sub Brand | Unilets |
| Type | Type T |
| UNSPSC | 39131708 |
| UPC 11 | 78138182611 |
| UPC 12 | 781381826112 |
| Width | 6.70 in |
| Width [Metric] | 17.0180 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 4 in³ |
| Finish | Epoxy Powder Coated |
| Form | 85 |
| Hub Size | 1/2 in |
| Material | Pressure Cast Aluminum |
| For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT |
| Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Roomy interiors: more wiring space; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Form 85 copperfree aluminum Unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance; Lightweight aluminum facilitates shipping, handling and installing; Sizes with flat-back design ideal where fitting is mounted flat against surface; Internal volume and maximum wire capacity clearly marked on castings; Threaded style is raintight when used with casketed covers; Wiring capacity: 4 CU-IN as per NEC 314.16(A) |
| Serve as pulling fittings |
| Make bends in conduit system |
| Provide openings for splicing, connect and change direction of conduit runs |
| Allow connections for branch runs |
| Permit access to conductors for maintenance |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Roomy interiors, more wiring space |
| Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity |
| Form 85™ copper free aluminum Unilets™ are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance |
| Lightweight aluminum facilitates shipping, handling and installing |
| Sizes with flat-back design ideal where fitting is mounted flat against surface |
| Internal volume and maximum wire capacity clearly marked on castings |
| Threaded style is raintight when used with casketed covers |
| Pressure Cast Aluminum |
