Appleton™

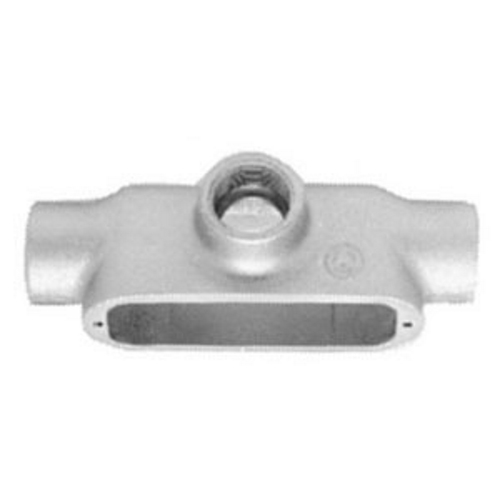

Appleton® Form 35™ Unilets™ T350-M Type T Conduit Outlet Body, 3-1/2 in Hub, Form 35, 314 cu-in, Malleable Iron
Custom_Product_Images_Illustration
Appleton™
Appleton® Form 35™ Unilets™ T350-M Type T Conduit Outlet Body, 3-1/2 in Hub, Form 35, 314 cu-in, Malleable Iron
SKU147411
MFGR #T350M
Your Cost: $605.65/ea
Appleton® Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton® Group has all the top quality components you need.
Appleton® Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton® Group has all the top quality components you need.
Application For Use With Rigid Steel, Rigid Aluminum Conduit And IMC ARRA Compliant N Buy American Compliant N Catalog Number T350M Connection Tapered Female Threaded Connection Type Tapered FNPT Country of Origin MX Currency USD Dimensions 5.19 in H Enclosure NEMA FB-1 EU RoHS Indicator N Gross Weight Per Pack 24.5000 lb Gross Weight per Pack Metric 11.11 Gross Weight UOM Metric kg Height 8.50 in Height [Metric] 21.5900 cm Length 18.00 in Length [Metric] 45.7200 cm Mounting Type Surface Number of Hubs 3 Standard UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 Standards UL 514B File No. E2527CSA C22.2 No. 18.3/065183 Sub Brand UNILETS Type Type T UNSPSC 39131708 UPC 11 78138168850 UPC 12 781381688505 Width 8.20 in Width [Metric] 20.8280 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Capacity 314 in³ Finish Zinc Electroplate/Chromate/Epoxy Powder Coat Form 35 Hub Size 3-1/2 in Material Malleable Iron For Use With Rigid Steel, Rigid Aluminum Conduit And IMC Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; High tensile strength and ductility, high corrosion resistance, high impact and shock resistance; Sizes with flat-back design ideal where fitting is mounted flat against surface; Wiring capacity: 314 CU-IN as per NEC 314.16(A) Serve as pulling fittings Make bends in conduit system Provide openings for splicing, connect and change direction of conduit runs Connect and change direction of conduit runs Allow connections for branch runs Permit access to conductors for maintenance Smooth, rounded integral bushing in each hub protects conductor insulation Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity Form 35™ malleable iron unilets high tensile strength and ductility, high corrosion-resistance, high impact and shock resistance Sizes with flat-back design ideal where fitting is mounted flat against surface 1/2 to 3 in blank covers are domed for extra wiring space Triple Coat (Zinc Electroplated, Chromate and Epoxy Powder Coated)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | T350M |
| Connection | Tapered Female Threaded |
| Connection Type | Tapered FNPT |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 5.19 in H |
| Enclosure | NEMA FB-1 |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 24.5000 lb |
| Gross Weight per Pack Metric | 11.11 |
| Gross Weight UOM Metric | kg |
| Height | 8.50 in |
| Height [Metric] | 21.5900 cm |
| Length | 18.00 in |
| Length [Metric] | 45.7200 cm |
| Mounting Type | Surface |
| Number of Hubs | 3 |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Standards | UL 514B File No. E2527CSA C22.2 No. 18.3/065183 |
| Sub Brand | UNILETS |
| Type | Type T |
| UNSPSC | 39131708 |
| UPC 11 | 78138168850 |
| UPC 12 | 781381688505 |
| Width | 8.20 in |
| Width [Metric] | 20.8280 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 314 in³ |
| Finish | Zinc Electroplate/Chromate/Epoxy Powder Coat |
| Form | 35 |
| Hub Size | 3-1/2 in |
| Material | Malleable Iron |
| For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; High tensile strength and ductility, high corrosion resistance, high impact and shock resistance; Sizes with flat-back design ideal where fitting is mounted flat against surface; Wiring capacity: 314 CU-IN as per NEC 314.16(A) |
| Serve as pulling fittings |
| Make bends in conduit system |
| Provide openings for splicing, connect and change direction of conduit runs |
| Connect and change direction of conduit runs |
| Allow connections for branch runs |
| Permit access to conductors for maintenance |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity |
| Form 35™ malleable iron unilets high tensile strength and ductility, high corrosion-resistance, high impact and shock resistance |
| Sizes with flat-back design ideal where fitting is mounted flat against surface |
| 1/2 to 3 in blank covers are domed for extra wiring space |
| Triple Coat (Zinc Electroplated, Chromate and Epoxy Powder Coated) |
