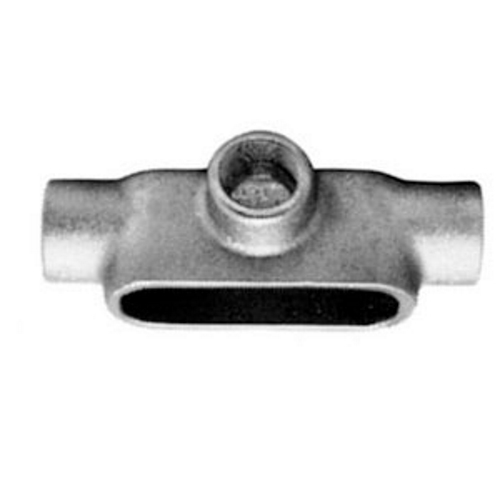

Appleton® FM7™ Unilets™ T77-SA Type T Conduit Outlet Body, 2-1/2 in Hub, Form 7, 102 cu-in, Aluminum
Type T Conduit Fitting Body
937323
MFG #: T77SA
Appleton™
300.67000
/ ea
Appleton® Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton® Group has all the top quality components you need.
- Catalog URL - Appleton_BC100_A_Brochure.pdf(Catalog URL)
- http://www.appletonelec.com(Seller Home Page URL)
- https://www.appleton.emerson.com/(Seller Home Page URL)
- Spec Sheet URL - 11043_SPE_781381506472_spec.pdf(Spec Sheet URL)
- Warranty URL - 11043_AFRVNTEYP0B9JHS4.pdf(Warranty URL)
- Warranty URL - appleton-grp-terms-and-conditions.pdf(Warranty URL)
- Applications
- Features
| For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers; Equivalent FM7 and Form 7 units have identical applications and installation dimensions; Flat back design provides greater cubic content for easier wire pulling and more room for splicing; Fits flush and snug against flat surfaces for more stable installation; Smooth hub openings allow easy conduit joining; Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body; Wiring capacity: 102 CU-IN as per NEC 314.16(A) |
| Smooth, rounded integral bushing in hubs protects conductor insulation |
| Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity |
| Wedge-Lok™ form-in-place covers with integral gasket are approved for use in wet locations |
| Grayloy iron bodies with cast covers and gasket are approved for use in wet locations |
| Unique Wedge-Lok™ clip cover design allows easy removal at any later time, without damaging the conduit body and cover is secured with clips, not screws |
| Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers |
| Equivalent FM7™ and Form 7™ units have identical applications and installation dimensions |
| Flat back design provides greater cubic content for easier wire pulling, and more room for splicing |
| Fits flush and snug against flat surfaces for more stable installation |
| Smooth hub bushings and cover openings protect conductor insulation |
| Smooth hub openings allow easy conduit joining |
| Pan head cover screws secure cover clips and provide superior screwdriver seating and torque |
| Cover screws and clips are captive to prevent loss |
| Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body |
