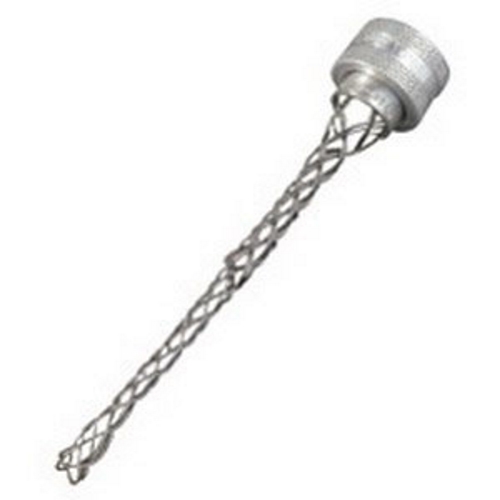

Appleton® CG-SR13 CG Series Wire Mesh Strain Relief Cord Grip, 3/4 in Trade, 3/4 to 7/8 in Cable Openings, Stainless Steel

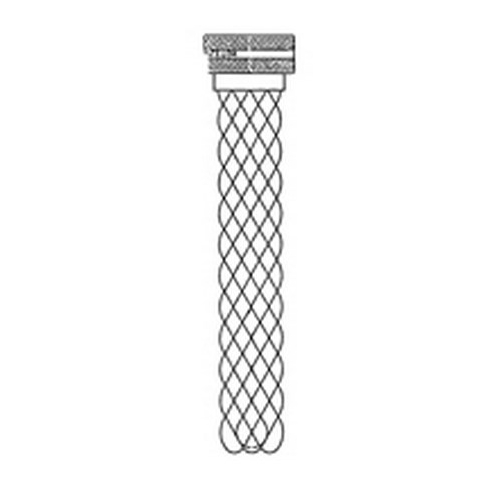

Custom_Product_Images_Illustration
Appleton® CG-SR13 CG Series Wire Mesh Strain Relief Cord Grip, 3/4 in Trade, 3/4 to 7/8 in Cable Openings, Stainless Steel
SKU128485
MFGR #CGSR13
Your Cost: $113.50/ea
Appleton Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton Group has all the top quality components you need.
Appleton Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton Group has all the top quality components you need.
Application For Aluminum Cord Connector ARRA Compliant C Buy American Compliant N Catalog Number CGSR13 Connection Type Female Threaded x Mesh Country of Origin MX Currency USD Dimensions 9.13 in L x 1.38 in W EU RoHS Indicator C Gross Weight Per Pack 0.2500 lb Gross Weight per Pack Metric 0.11 Gross Weight UOM Metric kg Height 0.88 in Height [Metric] 22.3520 mm Hub Size 0.75 in Length 12.60 in Length [Metric] 32.0040 cm Series CG Series Standard UL 514B, UL File Number E14817, CSA Number C22.2 18.3, CSA 065178, Class I, Division 2, Class II, Division 1 And 2, Class III Standards ARRA CompliantRoHS CompliantCSA C22.2UL 514B Type Strain Relief UNSPSC 39121719 UPC 11 78138162618 UPC 12 781381626187 Width 10.60 in Width [Metric] 26.9240 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Material Stainless Steel Trade Size 3/4 in For Aluminum Cord Connector Relieve strain at cable termination; Wire mesh strain reliefs can be used with cord and cable connectors for particularly harsh applications Relieve strain at cable termination Wire mesh strain reliefs can be used with cord and cable connectors for particularly harsh applications Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief protecting internal wiring connections against external tension on cable or cord Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution eliminating leakage resulting from grommet distortion Large aluminum connectors 1-1/2 thru 4 in and all steel connectors are constructed with hex head cap as preferred by some industries For particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectors Copper free aluminum cap NEMA 3R Enclosure For aluminum cord grips
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
Application | For Aluminum Cord Connector |
ARRA Compliant | C |
Buy American Compliant | N |
Catalog Number | CGSR13 |
Connection Type | Female Threaded x Mesh |
Country of Origin | MX |
Currency | USD |
Dimensions | 9.13 in L x 1.38 in W |
EU RoHS Indicator | C |
Gross Weight Per Pack | 0.2500 lb |
Gross Weight per Pack Metric | 0.11 |
Gross Weight UOM Metric | kg |
Height | 0.88 in |
Height [Metric] | 22.3520 mm |
Hub Size | 0.75 in |
Length | 12.60 in |
Length [Metric] | 32.0040 cm |
Series | CG Series |
Standard | UL 514B, UL File Number E14817, CSA Number C22.2 18.3, CSA 065178, Class I, Division 2, Class II, Division 1 And 2, Class III |
Standards | ARRA CompliantRoHS CompliantCSA C22.2UL 514B |
Type | Strain Relief |
UNSPSC | 39121719 |
UPC 11 | 78138162618 |
UPC 12 | 781381626187 |
Width | 10.60 in |
Width [Metric] | 26.9240 cm |
Stock Status | NONSTOCK |
Brand | Appleton™ |
Manufacturer | Appleton |
Material | Stainless Steel |
Trade Size | 3/4 in |
For Aluminum Cord Connector |
Relieve strain at cable termination; Wire mesh strain reliefs can be used with cord and cable connectors for particularly harsh applications |
Relieve strain at cable termination |
Wire mesh strain reliefs can be used with cord and cable connectors for particularly harsh applications |
Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief protecting internal wiring connections against external tension on cable or cord |
Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution eliminating leakage resulting from grommet distortion |
Large aluminum connectors 1-1/2 thru 4 in and all steel connectors are constructed with hex head cap as preferred by some industries |
For particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectors |
Copper free aluminum cap |
NEMA 3R Enclosure |
For aluminum cord grips |
