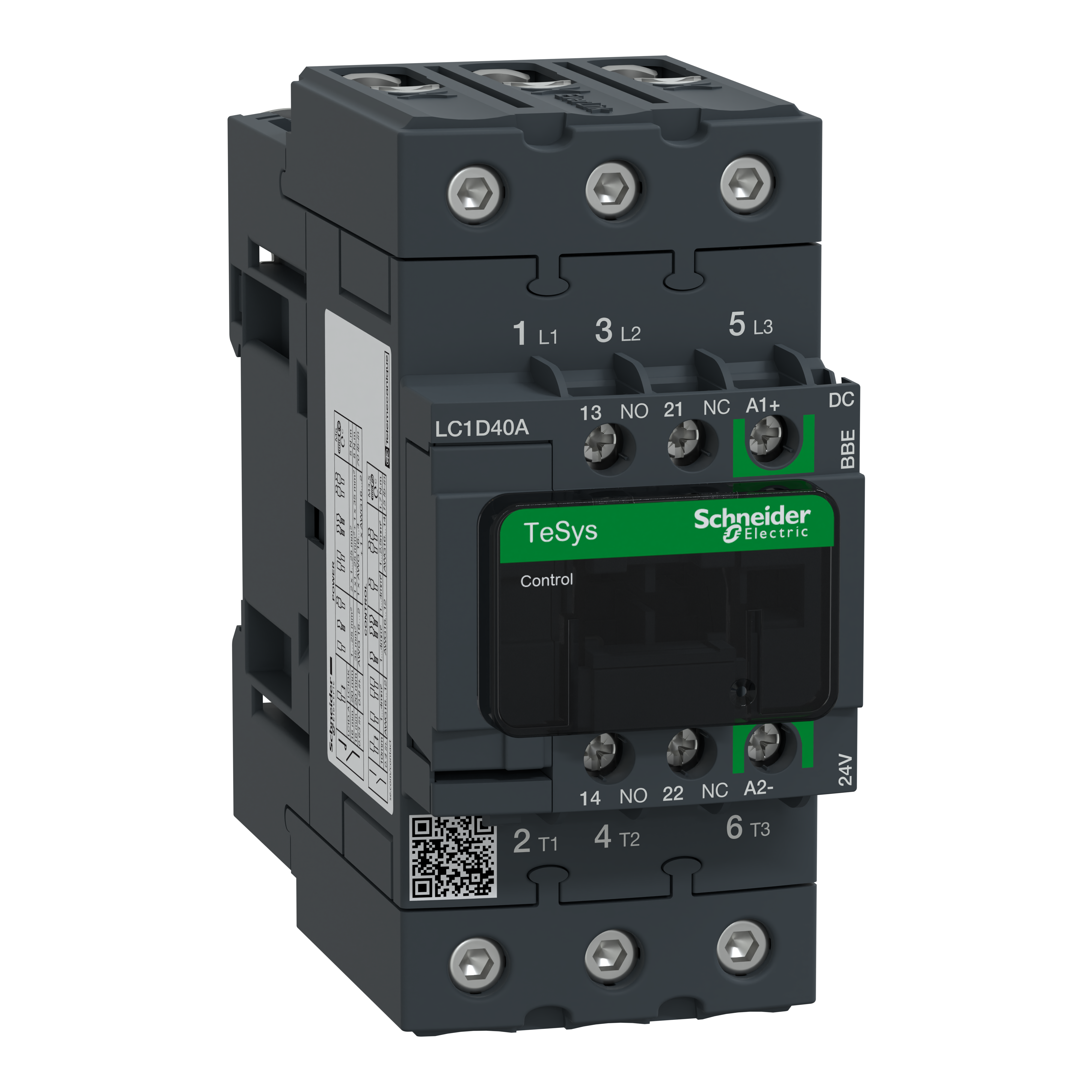

Schneider Electric Square D™ TeSys™ D LC1D40ABBE Contactor With Front Cover, 24 VDC V Coil, 60 A, 3NO Contact, 3 Poles

NEMA & IEC Contactors
1323305 MFG #: LC1D40ABBE
Square D™
302.29000 / ea
11003_C3SJ25UYVKD09PBX
  • Alternate Catalog Number: LC1D40ABBE
  • Application: For motor control and resistive load
  • ARRA Compliant: N
  • Buy American Compliant: N
  • Catalog Number: LC1D40ABBE
  • Coil Power Rating: 0.5
  • Connection Type: Screw
  • Contact Rating: 60/40
  • Country of Origin: FR
  • Currency: USD
  • Dimensions: 55 mm W x 120 mm D x 122 mm H
  • Enclosure Type: IP20
  • EU RoHS Indicator: Y
  • Frequency Rating: 25 to 400
  • Gross Volume Per Pack: 82.50
  • Gross Volume per Pack Metric: 1351.93
  • Gross Volume UOM: CI
  • Gross Volume UOM Metric: cm3
  • Gross Weight Per Pack: 2.3400 lb
  • Gross Weight per Pack Metric: 1.05
  • Gross Weight UOM Metric: kg
  • Harmonization Tariff Schedule Code: 8536410091
  • Height: 6.2000 in
  • Height [Metric]: 6.2000 cm
  • Item Group: 22358
  • Length: 15.2000 in
  • Length [Metric]: 15.2000 cm
  • Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433143102&lang=en-us
  • Mounting: Plate;Rail
  • Mounting Type: Surface
  • Number of Auxiliary Contacts: 1NO-1NC
  • Operating Cycles: 3600
  • Operating Temperature: -25 to 60
  • Returnable: N
  • Series: LC1D
  • Size: 120 MM,122 MM,55 MM
  • Substitute Product Catalog Number: LAD6K10B
  • Terminal Type: Screw Clamp
  • UNSPSC: 39121529
  • UPC 11: 78590176504
  • UPC 12: 785901765042
  • Warranty Description: Contractual Warranty:18 months
  • Wattage: 2.4
  • Width: 13.6000 in
  • Width [Metric]: 13.6000 cm
  • Stock Status: NONSTOCK
  • Brand: Square D™
  • Manufacturer: Schneider Electric
  • Coil Voltage: 24 V
  • Contact Configuration: 3NO
  • Maximum Load Current: 60
  • Type: CONTACTOR
  • Number Of Poles: 3
Schneider Electric Square D™ TeSys™ D Contactor, Series: LC1D, 24 VDC Coil, 60 A Maximum Load Current, 0.5 W Coil, 3 Pole, 25 to 400 Hz Frequency, 2.4 W Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 60/40 A Contact, Screw Connection, Screw Clamp Terminal, IP20 Enclosure, 3600 Cycles Operating Cycles, -25 to 60 deg C Operating, Surface Mounting, 55 mm W x 120 mm D x 122 mm H Dimensions
QTY
Add to Wishlist
  • Applications
  • Features
For motor control and resistive load
Built-in bidirectional peak limiting
Designed to control and provide overload protection to motors rated up to 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys™ D meets your needs for a majority of motor starter applications
New TeSys™ D green increase TeSys™ D range with a new electronic coil with up to 80% less consumption than TeSys™ D standard AC or DC coil
TeSys™ D green contactor simplify your maintenance services with 90% less references needed
TeSys™ D green contactor associated with TeSys™ LR9D electronic overload relay reduces heat generation and energy consumption up to 50%
High-fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR
Eliminates the time-consuming process of selecting tested combinations through web sites and spreadsheets
Simple to select the right product
All contactors include built-in auxiliary contacts
All screw connections have IP20 finger-safe terminals with both North American and International terminal markings
Control circuit flexibility
