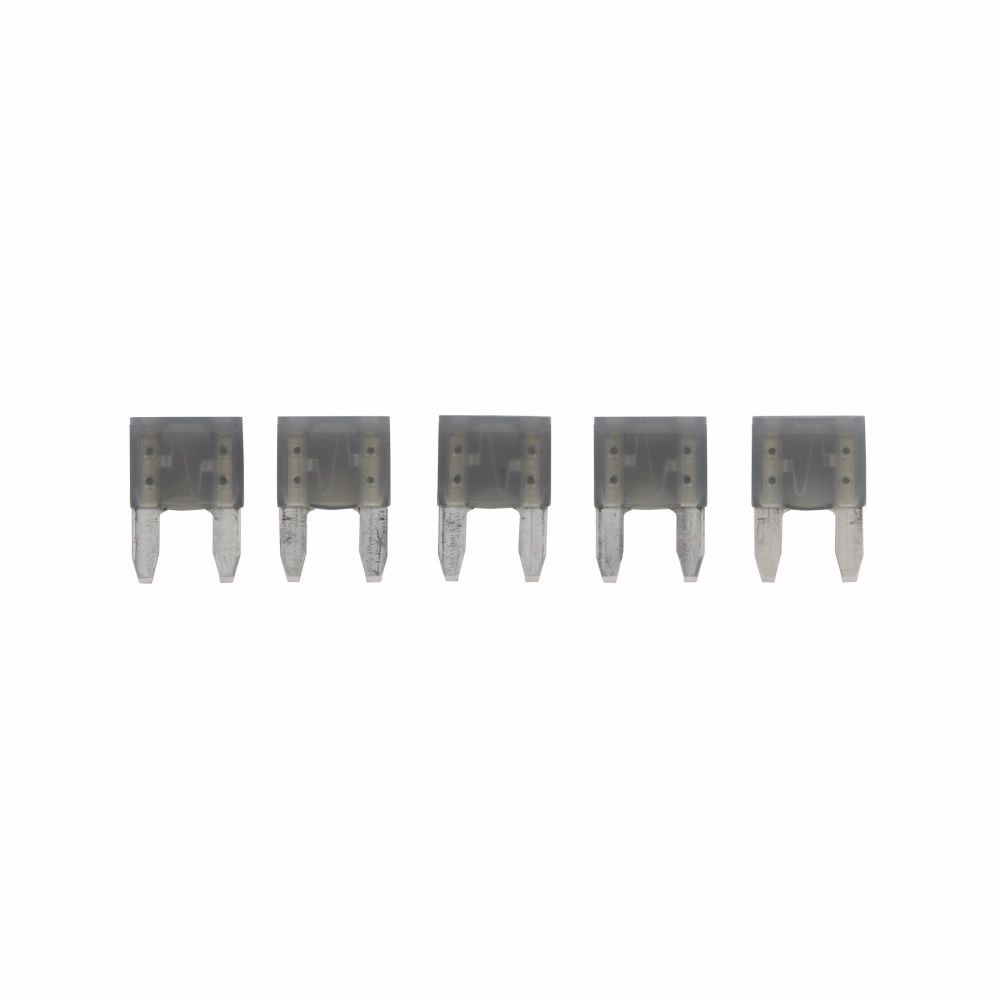

Edison ATM-2 ATM Fast Acting Miniature Automotive Fuse, 2 A, 32 VAC/VDC, 1 kA Interrupt
Automotive Fuse
390937
MFG #: ATM-2
Bussmann
217.13000
/ ea
- Alternate Catalog Number: ATM-2
- Application: Vehicles: On-Road
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: ATM-2
- Color: Gray
- Connection: Blade end
- Country of Origin: MUL
- Currency: USD
- Element: Single
- EU RoHS Indicator: C
- Gross Weight Per Pack: 0.0100 lb
- Gross Weight per Pack Metric: 0.04
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536100040
- Height: 1.61 in
- Height [Metric]: 4.0894 cm
- Length: 1.39 in
- Length [Metric]: 3.5306 cm
- Material: Zinc fuse elementColored plastic housing
- Mounting Type: Holder
- Series: ATM
- Size: 0.430 In Length X 0.150 In Width X 0.606 In Height
- Standard: RoHS Compliant,Contact factory
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantJASO D612/SAE J2077/J1171UL 275A Guide FHXT File No. AU169
- Sub Brand: Bussmann Series
- Terminal Type: Blade
- Type: Blade Fuse
- UNSPSC: 39121609
- UPC 11: 05171281458
- UPC 12: 051712814584
- Width: 0.27 in
- Width [Metric]: 0.6858 cm
- Stock Status: NONSTOCK
- Brand: Bussmann
- Manufacturer: Eaton
- Amperage Rating: 2 A
- Interrupt Rating: 1000 Amp
- Voltage Rating: 32 VDC
The ATM, ATC™ and MAXI fuses use the same universal color-coding as traditional non-illuminating fuses. Illuminating fuse holders allow adding circuits with EasyID, but use regular ATM and ATC blade fuses.
- Catalog URL - Bussmann_NON_65_Catalog.pdf(Catalog URL)
- http://www.bussmann.com(Seller Home Page URL)
- Spec Sheet URL - 10973_OWR0L6J9KTVUFY45.pdf(Spec Sheet URL)
- Spec Sheet URL - ATM-2(Spec Sheet URL)
- Spec Sheet URL - skuPage.ATM-2.pdf(Spec Sheet URL)
- Tech Drawing URL - bus-ele-cat-5084-full-line-retail.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/YMvqUyoETXk(Video)
- Applications
- Features
| Vehicles: On-Road |
| Color Code Gray |
| A range of UL® listed fast acting miniature blade fuses for automotive and low voltage circuits |
| Halogen free |
| Test points on fuses to speed troubleshooting |
| Industry standard color coded by amperage rating |
| ATM fuses feature an enclosed element for electrical isolation, corrosion resistance and longer service life |
| -40 to 100 deg C, 95 % RH non-condensing is operating temperature |
| -5 to 35 deg C or lower, 85 % RH non-condensing is storage temperature |
